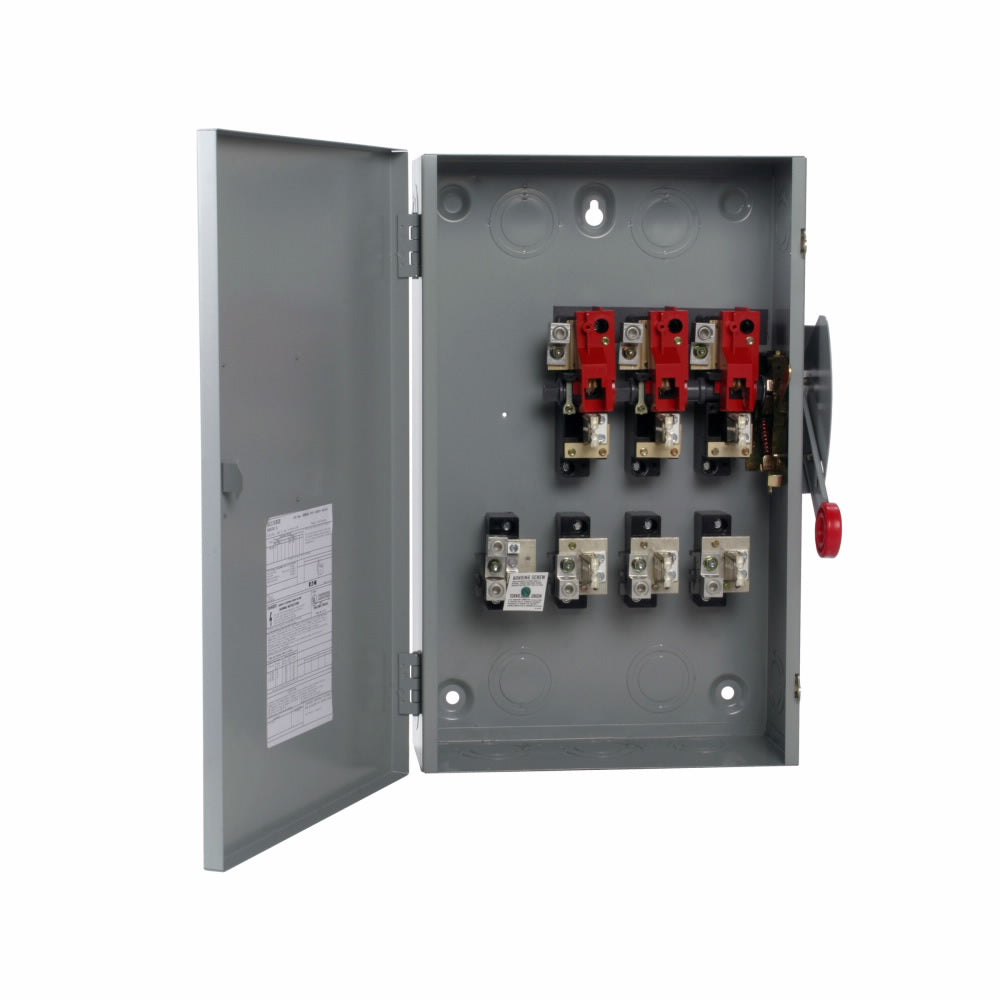

EATON DG324NGK SWITCH SAF 240VAC 200A 3 1/3 4 NEMA 1

Product Description

The EATON DG324NGK is a cartridge fusible general duty safety switch with a voltage rating of 240 VAC and an amperage rating of 200 A. This switch is designed for residential and commercial applications, particularly suitable for light duty motor circuits and service entrance operations.

• Ample wire bending space for easier installation
• Visible ON/OFF indications for safety
• Mechanically interlocked cover to prevent access when ON

Product Highlights

This general duty safety switch offers robust performance in power distribution applications, suitable for both 1/3 phase systems and locking mechanisms that enhance safety during operations.

Product Information

Standard Information

• Manufacturer Part Number: DG324NGK
• Brand: EATON

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 200 A
• Number of Poles: 3
• Number of Wires: 4
• Dimensions: 10 in L x 15.52 in W x 25.23 in H
• Material: Steel
• Finish: Painted
• Enclosure Type: NEMA 1
• Application: Power Distribution Applications
