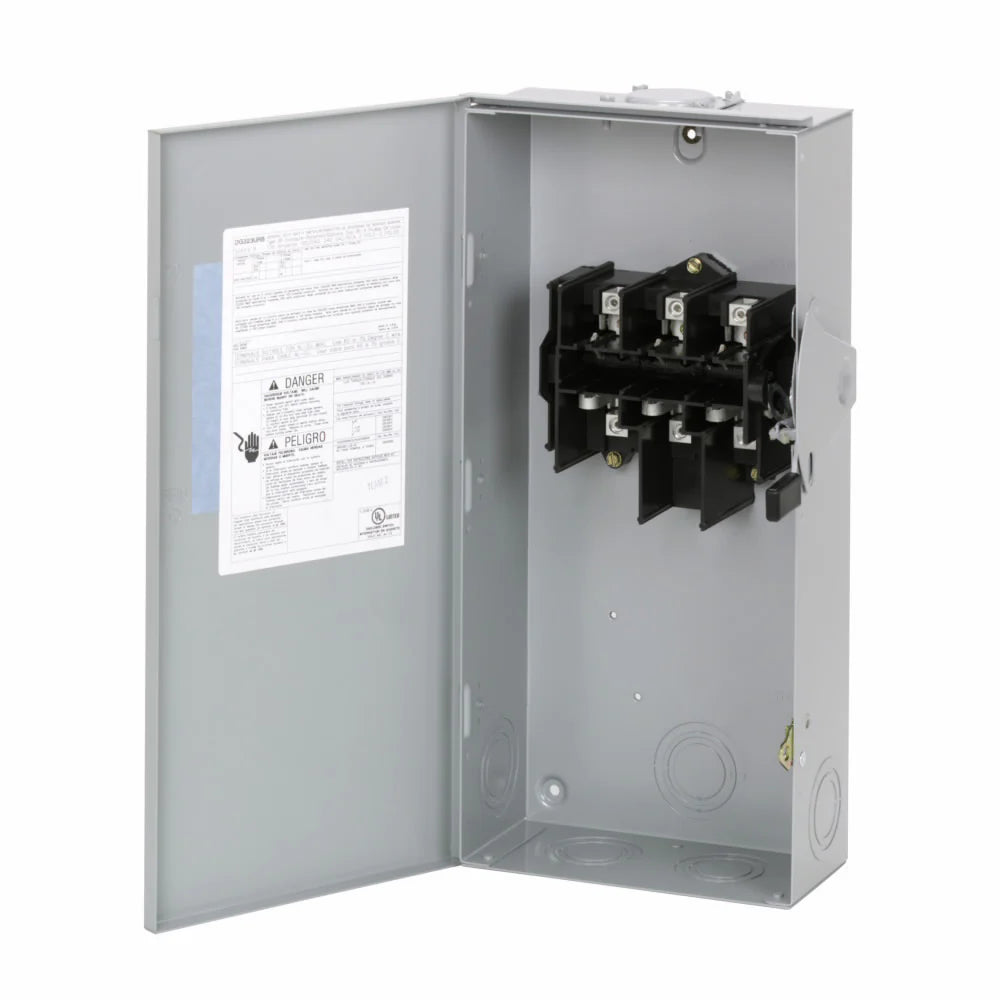

Eaton DG323URB DG Series Non-Fusible Rainproof General Duty Safety Switch 240 VAC 100 A 15 hp 30 hp TPST Contact 3 Poles

Product Description

The Eaton DG323URB is a non-fusible, general duty safety switch rated for 240 VAC and 100 Amperes. This switch is versatile and designed for both residential and commercial applications where reliable power distribution is needed. It features a three-pole, three-wire configuration with a TPST contact form. The switch is housed in a NEMA 3R rated enclosure, ensuring rainproof functionality, making it suitable for outdoor installations.

• 100 A, 240 VAC Rating
• TPST Contact Form, 3 Poles
• NEMA 3R Enclosure for outdoor use

Product Highlights

The Eaton DG323URB is effective for light duty motor circuits and service entrance applications. Designed with painted galvanized steel, it is corrosion-resistant and designed for surface mounting.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: DG323URB

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 100 A
• Number of Poles: 3
• Number of Wires: 3
• Horsepower: 15 hp, 30 hp
• Dimensions: 6.42 in L x 8.82 in W x 7.5 in H
• Material: Steel
• Finish: Painted Galvanized
• Mounting Type: Surface
• Approval: UL Listed
