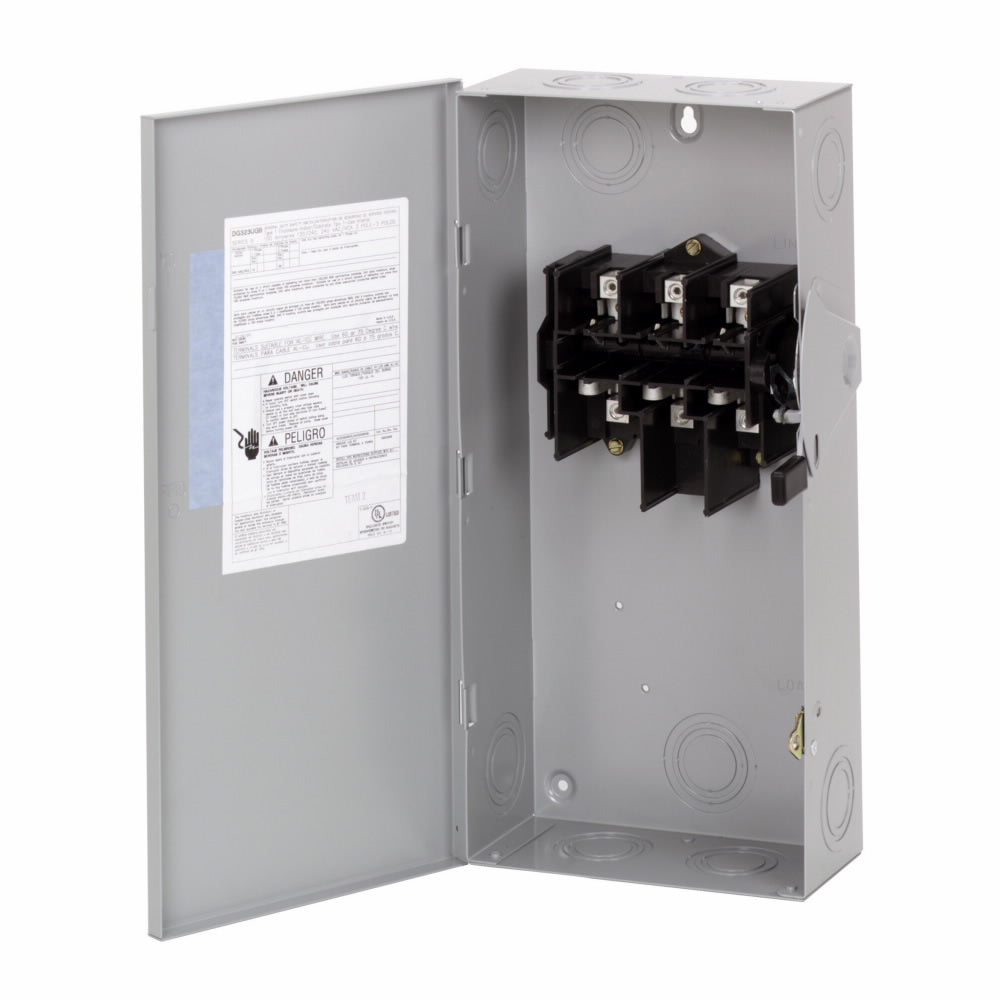

EATON DG323NGB DG Series Cartridge Fusible General Duty Safety Switch 240VAC 100A 3 Poles

Product Description

The EATON DG323NGB is a cartridge fusible general duty safety switch. It operates at 240VAC with a current rating of 100A. Designed for residential and commercial applications, it can handle motor circuits and service entrance tasks. This switch features a NEMA 1 enclosure and supports surface mounting.

• Cartridge fusible design for enhanced safety and reliability
• Ample wire bending space simplifies installation
• Triple padlocking capability enhances security

Product Highlights

This safety switch provides ample wiring space and visible ON/OFF indications for easy operation. NEMA rated, it meets various electrical codes and standards.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part No: DG323NGB

Technical Specifications

• Type: Cartridge Fusible General Duty
• Voltage Rating: 240 VAC
• Amperage Rating: 100 A
• Number of Poles: 3
• Number of Wires: 4
• Dimensions: 6.42 in L x 8.82 in W x 7 in H
• Material: Steel
• Finish: Painted
• Enclosure Type: NEMA 1
• Horsepower: 7-1/2 to 15 hp, 15 to 30 hp
