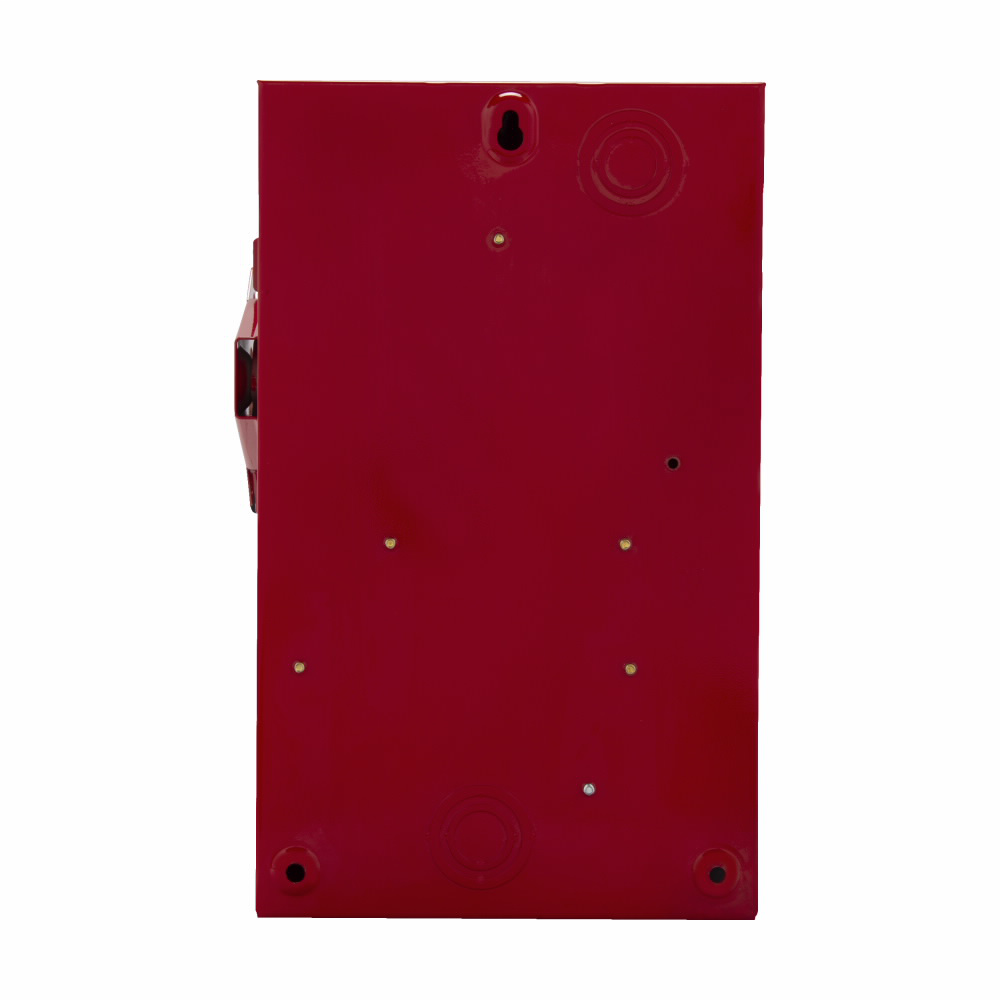

Eaton DG322NGBLORED General Duty Fusible Safety Switch 60A

Product Description

The Eaton DG322NGBLORED is a custom safety switch rated at 60A, designed with a NEMA 1 enclosure and Class H fuses. This three-pole switch is fusible with a neutral and supports a maximum voltage of 240 Vac. It is suitable for light-duty motor circuits and service entrance applications in residential and commercial settings.

• Available in 30 A–600 A, fusible and non-fusible ratings
• Maintains lock out tag out (LOTO) capability
• Horsepower rated

Product Highlights

General duty safety switch with a NEMA 1 enclosure, suitable for commercial and residential applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: DG322NGBLORED

Technical Specifications

• GTiN: 00786685503578
• Type: General Duty Fusible Safety Switch
• Brand: Eaton
• Width: 8.69 in
• Height: 14.19 Inch
• Length: 7.38 Inch
• Voltage: 240 Volt
• Amperage: 60 Amp
• Enclosure: NEMA 1
• NEMA Size: 1
• Max Voltage: 240 V
• Product UPC: 78668550357
• 12-Digit UPC: 786685503578
• Applications: Commercial / Institutional Buildings / Structures - Power Distribution and Controls
• Number of Poles: 3 Pole
• Product Name: Eaton general duty cartridge fuse safety switch
• Catalog Number: DG322NGB
• UPC: 782113144283
• Product Length/Depth: 7.38 in
• Product Height: 14.19 in
• Product Width: 8.69 in
• Product Weight: 10 lb
• Compliances: NEC 230.62 (C) Compliant Barrier
• Certifications: UL Listed
• Catalog Notes: Maximum hp ratings apply only when dual element fuses are used
• Product Type: Cartridge fuse safety switch
• Enclosure material: Painted steel
• Fuse configuration: Fusible with neutral
• Number of wires: 4
• Fuse class provision: Class H fuses
• Voltage rating: 240V
• Product Category: General duty safety switch
• Manufacturer Part Number: DG322NGB
• Manufacturer: Eaton
• Product Series: DG
• Family Series: Eaton Safety Switches, DG Series
• Description: Eaton General duty cartridge fuse safety switch, 60 A, NEMA 1, Painted steel, Class H fuses, Fusible with neutral, Three-pole, Four-wire, Category: general duty safety switch, 240 V
• Switch Type: General Duty
• Current Rating: 60 A
• Fusible: Yes
• Fuse Type: H, R
• Neutral: Yes
• Composition: Metallic
• NEMA Rating: NEMA 1
• Approvals: CUL, UL
• Net Weight: 9.6 lbs
• Gross Weight: 9.68 lbs
• Enclosure NEMA Rating: NEMA 1
• Component: Fusible Disconnect Switch
• Disconnect Enclosure Width: 8.76 In
• Disconnect Enclosure Depth: 7.38 In
• Disconnect Enclosure Height: 14.19 In
• Enclosure Disconnect Type: Custom Safety Switch
