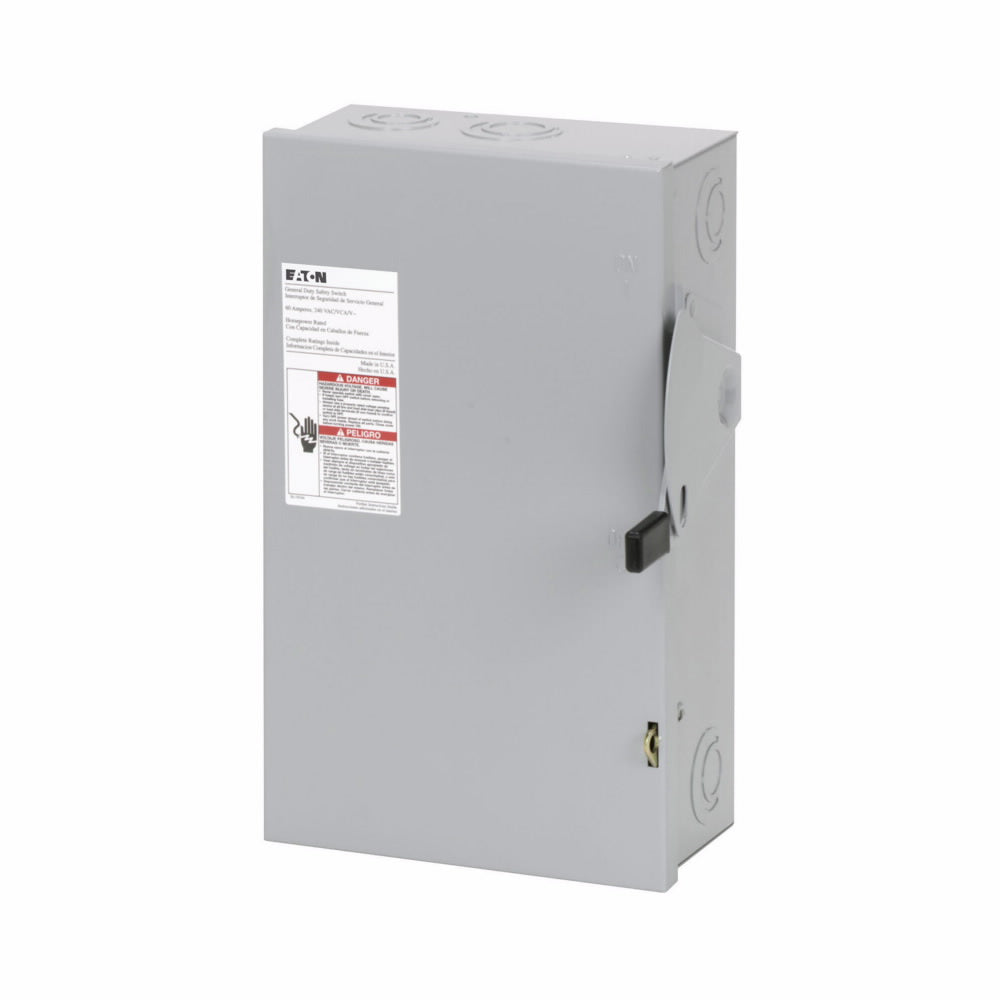

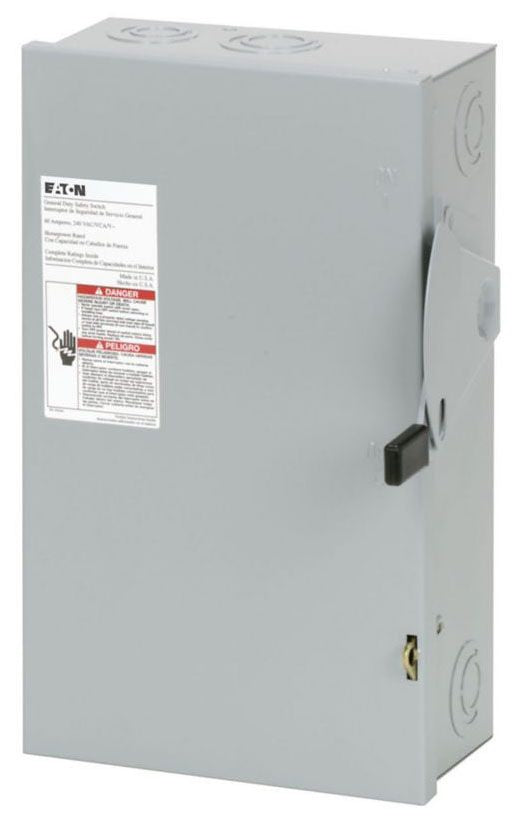

EATON DG322NGB DG Series Cartridge Fusible General Duty Safety Switch, 240 VAC, 60 A, 3 to 10 hp, 7-1/2 to 15 hp, TPST Contact, 3 Poles

Product Description

The EATON DG322NGB is a cartridge fusible general duty safety switch designed for reliable operation in commercial and residential applications. This switch is rated for 240 VAC and 60 A, suitable for motors ranging from three to fifteen horsepower. It features three poles and has a TPST contact form.

• Designed for light duty motor circuits and service entrance applications.
• Constructed with a NEMA 1 enclosure for indoor use.
• Offers ample wire bending space for easier installation.

Product Highlights

This EATON safety switch provides important safety features like a visible double-break quick make mechanism that helps prevent contact burning. The side opening door design enhances accessibility while ensuring safety through its mechanically interlocked cover.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: DG322NGB

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 240 VAC
• Number of Poles: 3
• Number of Wires: 4
• Horsepower Rating: 3 to 10 hp, 7-1/2 to 15 hp
• Enclosure Type: NEMA 1
• Dimensions: 6.41 in L x 8.4 in W x 7 in H
• Material: Steel, Painted
