Product Description

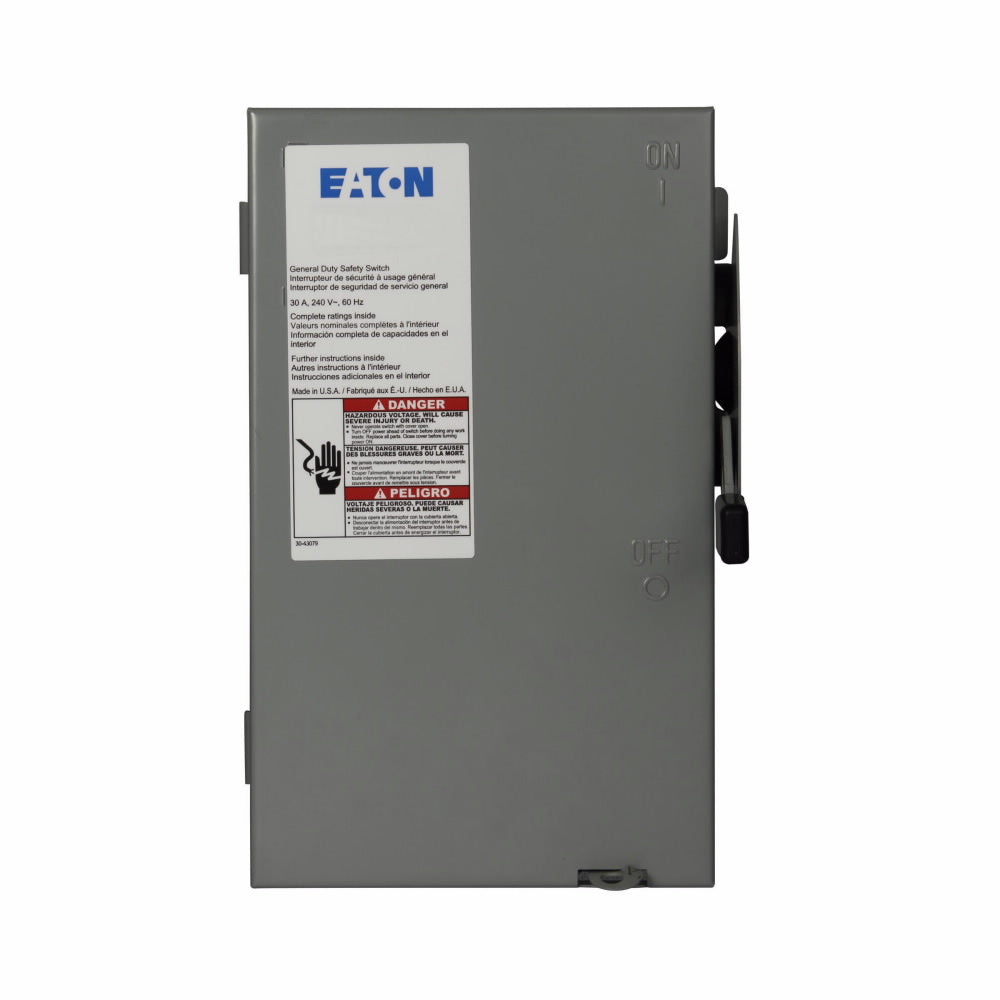

The Eaton DG321UGB is a non-fusible general duty safety switch with a voltage rating of two hundred forty volts and an amperage rating of thirty amps. This switch is designed to suit various residential and commercial applications including light duty motor circuits and service entrance applications. It features a three-pole configuration with TPST contact form, making it suitable for use in configurations requiring three wires.
- UL listed and compliant with NEMA standards
- Painted steel construction for durability
- Designed for panel mounting
Product Highlights
The Eaton DG321UGB switch provides reliable operation for both commercial and residential installations. Its non-fusible design handles up to three horsepower at single-phase power and seven and one-half horsepower at three-phase power.
Product Information
Standard Information
-
Brand: Eaton
-
Catalog Number: DG321UGB
Technical Specifications
-
Voltage Rating: 240 VAC
-
Amperage Rating: 30 A
-
Horsepower Rating: 3 hp, 7-1/2 hp
-
Number of Poles: 3
-
Number of Wires: 3
-
Enclosure Type: NEMA 1
-
Dimensions: 5.73 in L x 6.1 in W x 6.25 in H
-
Material: Steel
-
Finish: Painted
-
Mounting Type: Panel
-
Phase: 1/3
-
Contact Form: TPST
