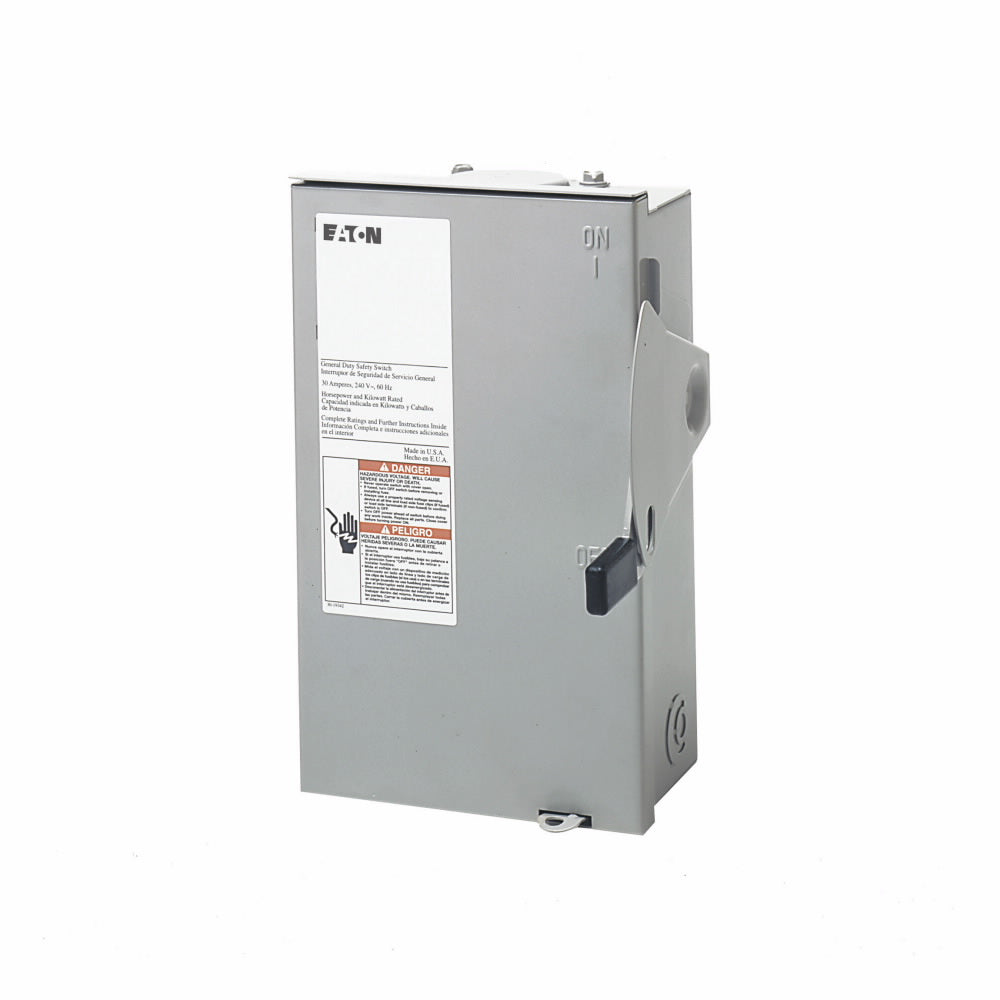

Eaton DG321NRB Switch Saf 240VAC 30A TPST 3 1/3 4 PNL

Product Description

The Eaton DG321NRB is a cartridge fusible general duty safety switch, designed for reliable operation in various settings. This switch operates at 240 volts and has an amperage rating of thirty amps. It is suitable for residential and commercial applications, especially for light-duty motor circuits.

• 3 pole, 4 wires configuration
• NEMA 3R rated for outdoor use
• Visible ON/OFF indications for operational clarity

Product Highlights

The Eaton DG321NRB safety switch features a robust design for ease of installation and use. Its quick-make, quick-break rotary blade mechanism enhances operational efficiency while preventing contact burning for extended durability. This unit is ideal for power distribution and control in various environments.

Product Information

Standard Information

• Brand: Eaton
• MPN: DG321NRB

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 30 A
• Horsepower: 1-1/2 to 3 hp (1-phase), 3 to 7-1/2 hp (3-phase)
• Number of Poles: 3
• Number of Wires: 4
• Enclosure Type: NEMA 3R
• Material: Steel, painted galvanized
• Dimensions: 5.73 inches (L) x 6.1 inches (W) x 6.25 inches (H)
• Phase: 1/3
