Eaton DG226NRK Electrical 120/240 VAC 600 Amp 75 to 200 Hp 2-Pole 3-Wire Fusible Single Throw Safety Switch

Product Description

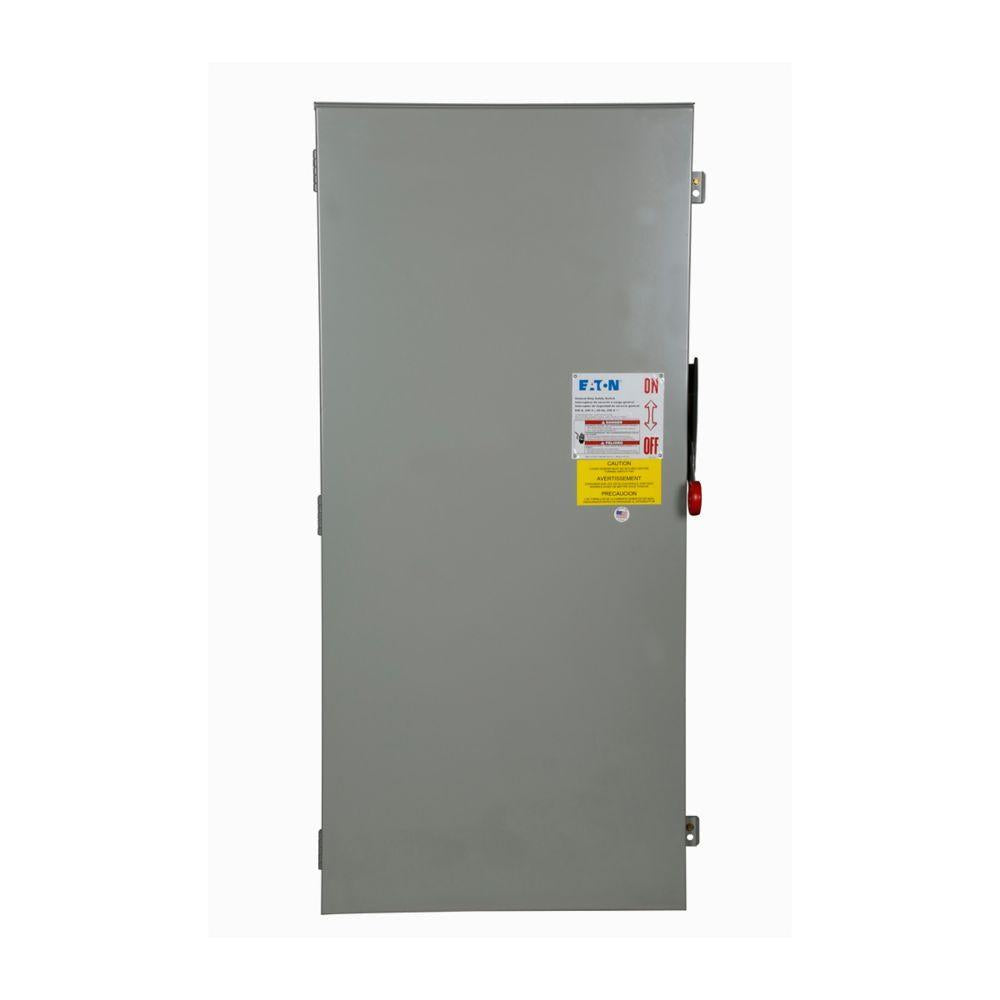

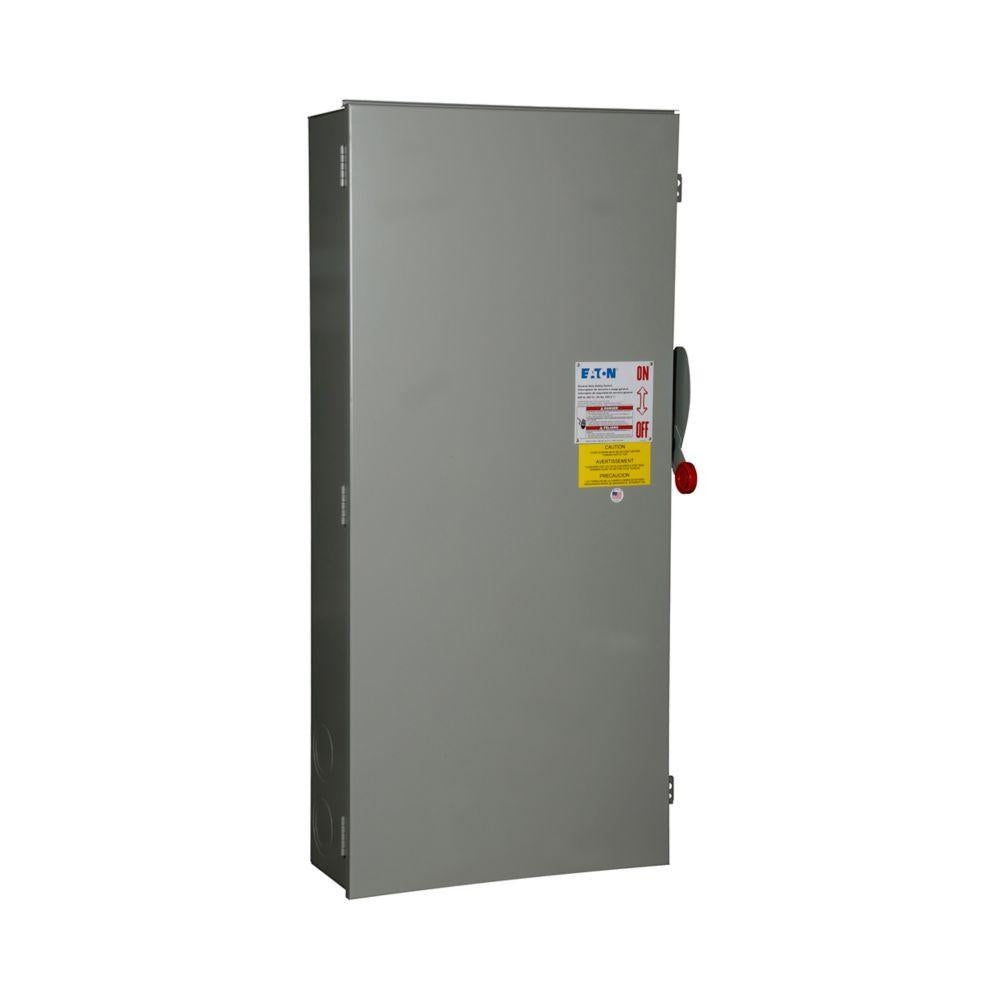

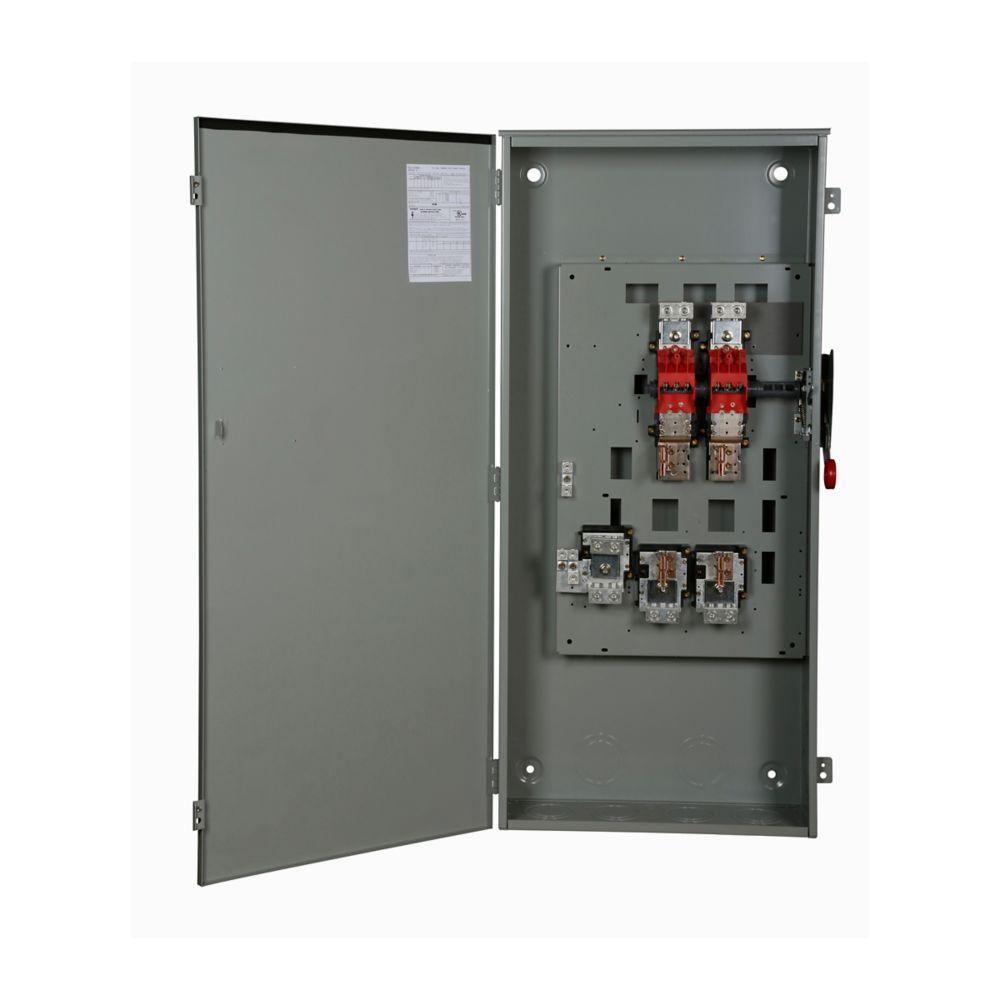

The Eaton DG226NRK general duty cartridge fuse safety switch is rated at 120/240 VAC, 600 Amp, and 75 to 200 Hp. This two-pole, three-wire switch features a NEMA 3R enclosure made of painted galvanized steel and utilizes Class H fuses. It is suitable for light duty motor circuits and service entrance applications in residential and commercial settings.

• 600 A
• NEMA 3R enclosure
• Fusible with neutral

Product Highlights

This Eaton safety switch is ideal for power distribution and control in commercial and institutional buildings.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: DG226NRK

Technical Specifications

• Type: General Duty, Cartridge Fused
• Brand: Eaton
• Width: 24 in
• Height: 52.7 in
• Length: 14.25 in
• Voltage: 240 Volt
• Amperage: 600 Amp
• Material: Steel
• Standard: UL
• Enclosure: 3R
• NEMA Size: 3R
• Applications: Commercial / Institutional Buildings / Structures - Power Distribution and Controls
• Number of Poles: 2 Pole
• Number of Wires: 3 Wire
• Enclosure Material: Steel
• Enclosure Type: NEMA 3R
• Finish: Galvanized/Painted
• Phase: 1
• Series: K Series
• Voltage Rating: 240 VAC
• Horsepower: 75 hp, 200 hp
• Contact Form: DPST
• Fuse Class: Class H
• Fuse configuration: Fusible with neutral
• Fuse class provision: Class H fuses
• Product Type: Cartridge fuse safety switch
• Product Category: General duty safety switch
• Product Length/Depth: 14.25 in
• Product Height: 52.7 in
• Product Width: 24 in
• Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
• Compliances: NEC 230.62 (C) Compliant Barrier
• Certifications: UL Listed
• Catalog Notes: Maximum hp ratings apply only when dual element fuses are used. 3-Phase hp rating shown is a grounded B phase rating, UL listed.
• Application: Commercial, Institutional Buildings, Control, Light Duty Motor Circuits, Service Entrance, Residential and Power Distribution Applications
