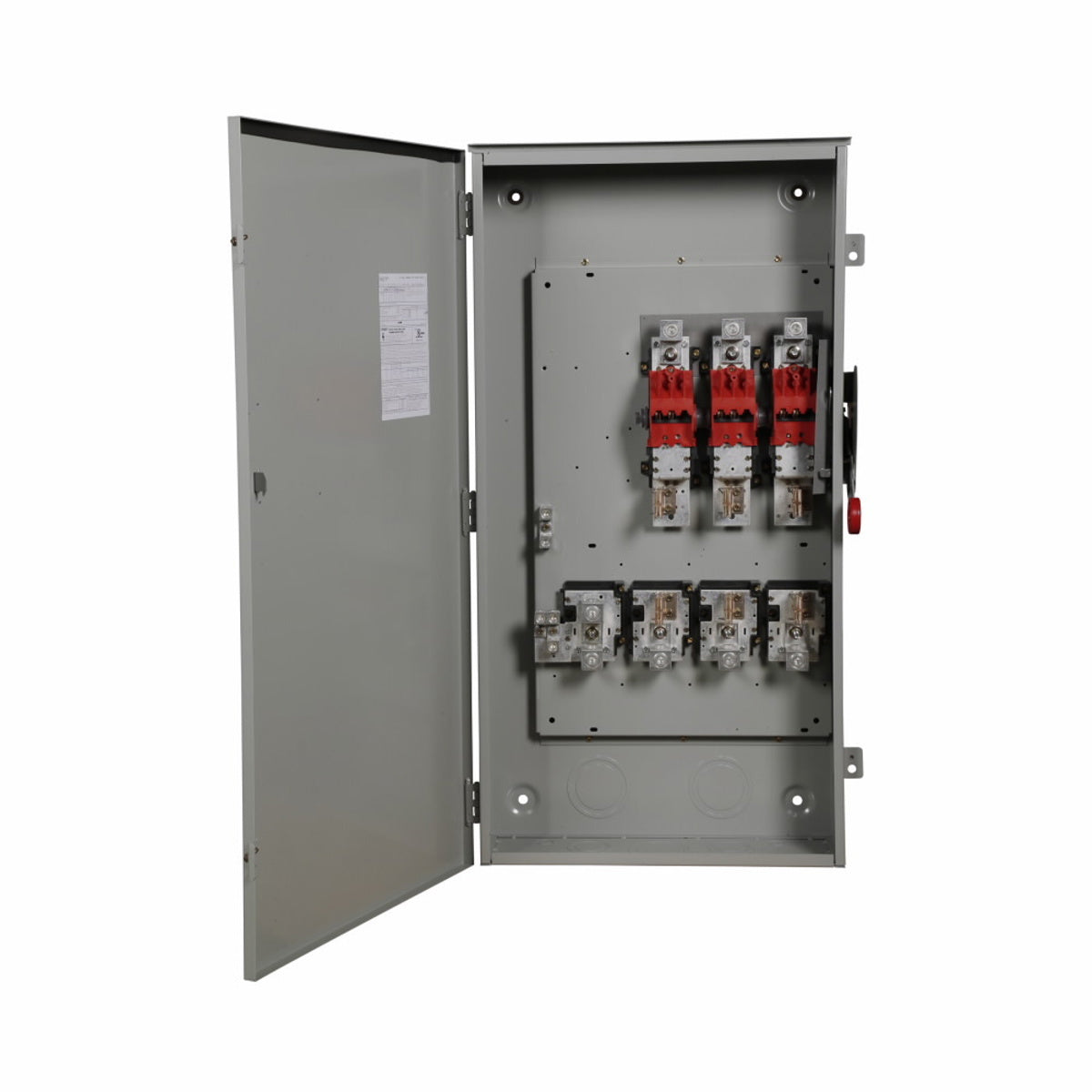

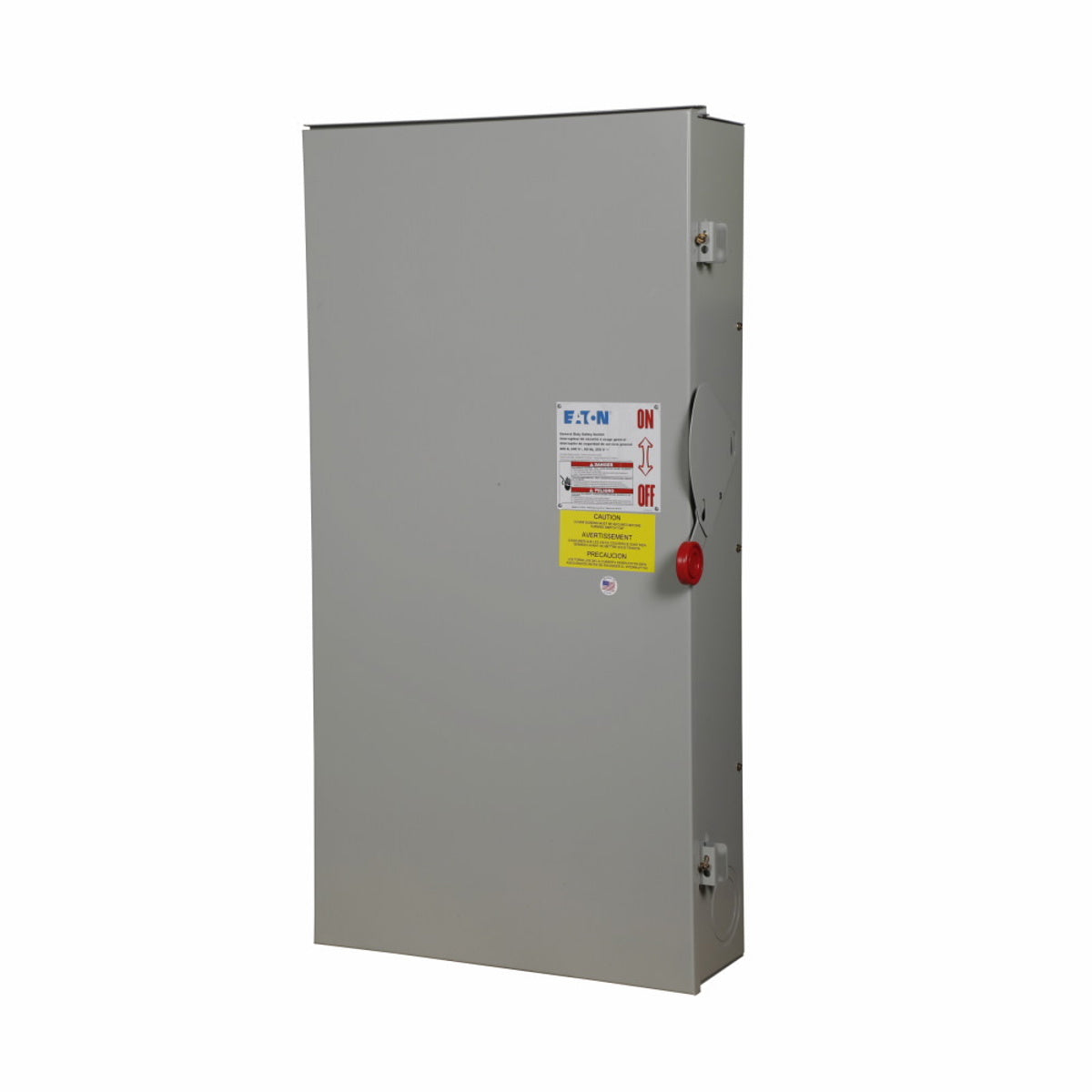

Eaton DG225FRK General Duty Cartridge Fuse Safety Switch 400 A

Product Description

The EATON DG225FRK is a general duty cartridge fuse safety switch, designed for residential and commercial applications. This 400 A, two-pole, two-wire switch features a NEMA 3R enclosure made of painted galvanized steel and is suitable for light duty motor circuits and service entrance applications. It is designed for use with Class H fuses and is fusible without neutral.

• 400 A, 240 V safety switch
• NEMA 3R enclosure for protection against weather
• Suitable for light duty motor circuits and service entrance applications

Product Highlights

This Eaton safety switch is ideal for commercial and residential applications requiring a reliable and robust safety switch.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: DG225FRK
• Country of Origin: United States

Technical Specifications

• Type: General Duty, Cartridge Fused
• Brand: Eaton
• Height: 45.19 Inch
• Length: 12.63 Inch
• Voltage: 240 Volt
• Amperage: 400 Amp
• Material: Steel
• Enclosure: 3R
• Applications: Commercial / Institutional Buildings / Structures - Power Distribution and Controls
• Number of Poles: 2 Pole
• Number of Wires: 2 Wire
• Enclosure Material: Steel
• Catalog Number: DG225FRK
• Manufacturer: Eaton
• Country of Origin: United States
• Made in USA: Yes
• Standard: UL Listed,NEC 230.62 (C) Compliant Barrier
• UPC: 782114001950
• GTIN: 00782114001950
• Item Type: Cartridge fuse safety switch
• Voltage Rating: 240 VAC
• Finish: Galvanized/Painted
• Series: K Series
• Horsepower: 50 hp, 125 hp
• Contact Form: DPST
• Fuse Class: Class H
• Neutral: Fusible without neutral
• Category: General duty safety switch
• Phase: 1
• Enclosure Type: NEMA 3R
• Fuse Type: H, R
• Indoor or Outdoor Use: Outdoor
• NEMA Rating: 3R
• Current Rating: 400 A
• Poles: Two-pole
• Wires: Two-wire
