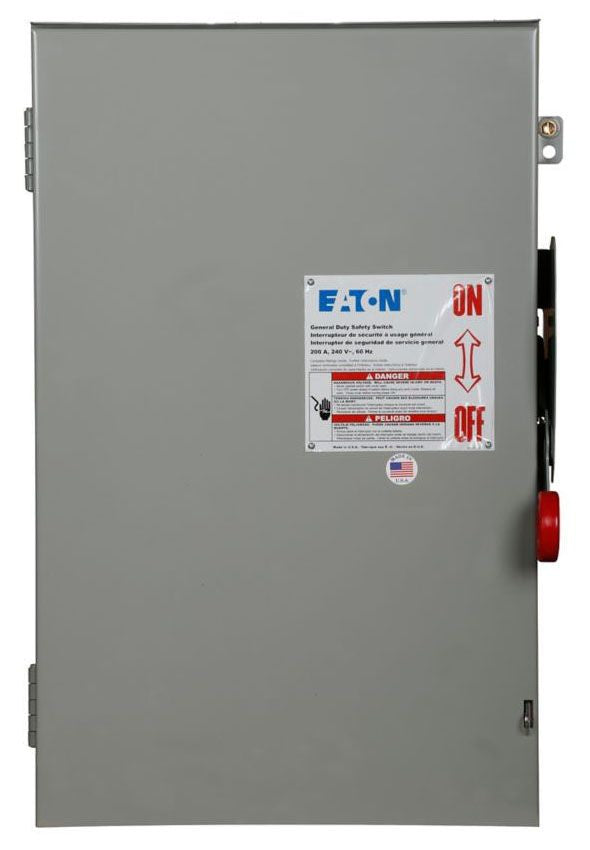

EATON DG224NRK DG Series Cartridge Fusible General Duty Safety Switch 240 VAC 200 A

Product Description

EATON DG224NRK is a general duty safety switch designed for 240 volt alternating current applications, rated at 200 amperes. It supports 15 horsepower at 1-phase and 25 to 60 horsepower at 3-phase configurations. This safety switch comprises a durable galvanized steel construction, ensuring robustness and longevity.

• Suitable for residential and commercial use
• NEMA 3R rated for outdoor installation
• Mechanically interlocked cover enhancing safety

Product Highlights

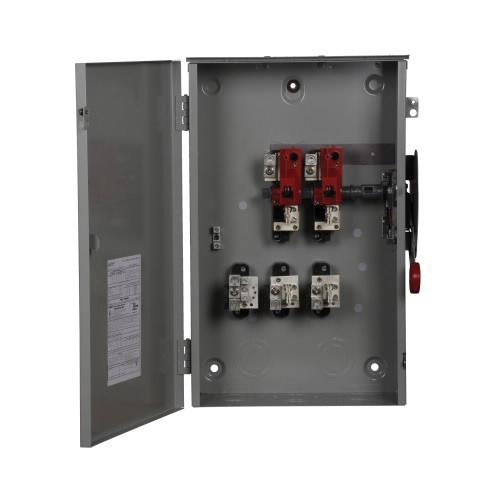

This switch is designed with ample wiring space to ease installation and maintenance. The visible double-break rotary blade mechanism enables quick operation while ensuring reliable performance under load. The switch can accommodate Class H cartridge fuses for effective protection against overloads.

Product Information

Standard Information

• Catalog Number: DG224NRK
• Manufacturer: EATON

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 200 A
• Number of Poles: 2
• Number of Wires: 3
• Dimensions: 10 inches L x 15.52 inches W x 25.23 inches H
• Enclosure Type: NEMA 3R
• Material: Steel
• Application: Power distribution for residential and commercial use
