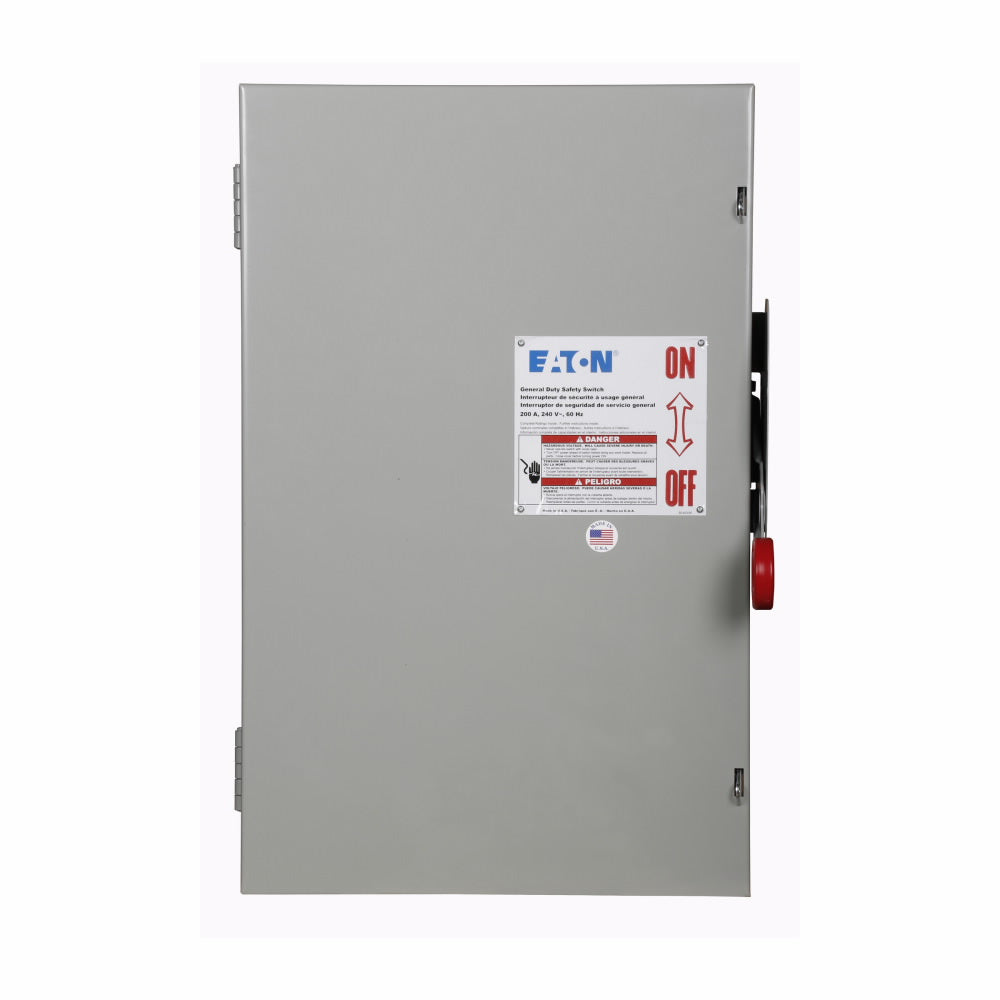

EATON DG224NGK DG Series Cartridge Fusible General Duty Safety Switch, 240 VAC, 200 A, 15 to 25 hp, 50 hp, 2 Poles

Product Description

EATON DG224NGK is a general duty safety switch designed for commercial and industrial use. This cartridge fusible safety switch operates at 240 VAC and has a 200 A amperage rating. It supports motors ranging from 15 to 25 hp at one phase and up to 50 hp at three phases. The switch is compliant with NEMA 1 standards, making it suitable for indoor applications.

• Two-pole, three-wire configuration
• Triple padlocking capability for enhanced security
• Ample wiring and bending space for easy installation

Product Highlights

This safety switch features a side opening door that simplifies access for maintenance. The visible ON/OFF indicator allows quick status checks without opening the enclosure. It is built from painted steel, providing durability in various settings.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part No: DG224NGK

Technical Specifications

• Height: 25.23 inches
• Width: 15.52 inches
• Length: 10 inches
• Weight: 48 lb
• Voltage Rating: 240 VAC
• Amperage Rating: 200 A
• Number of Poles: 2
• Number of Wires: 3
• Enclosure Type: NEMA 1
• Material: Steel
• Phase: 1/3
• Series: DG Series
