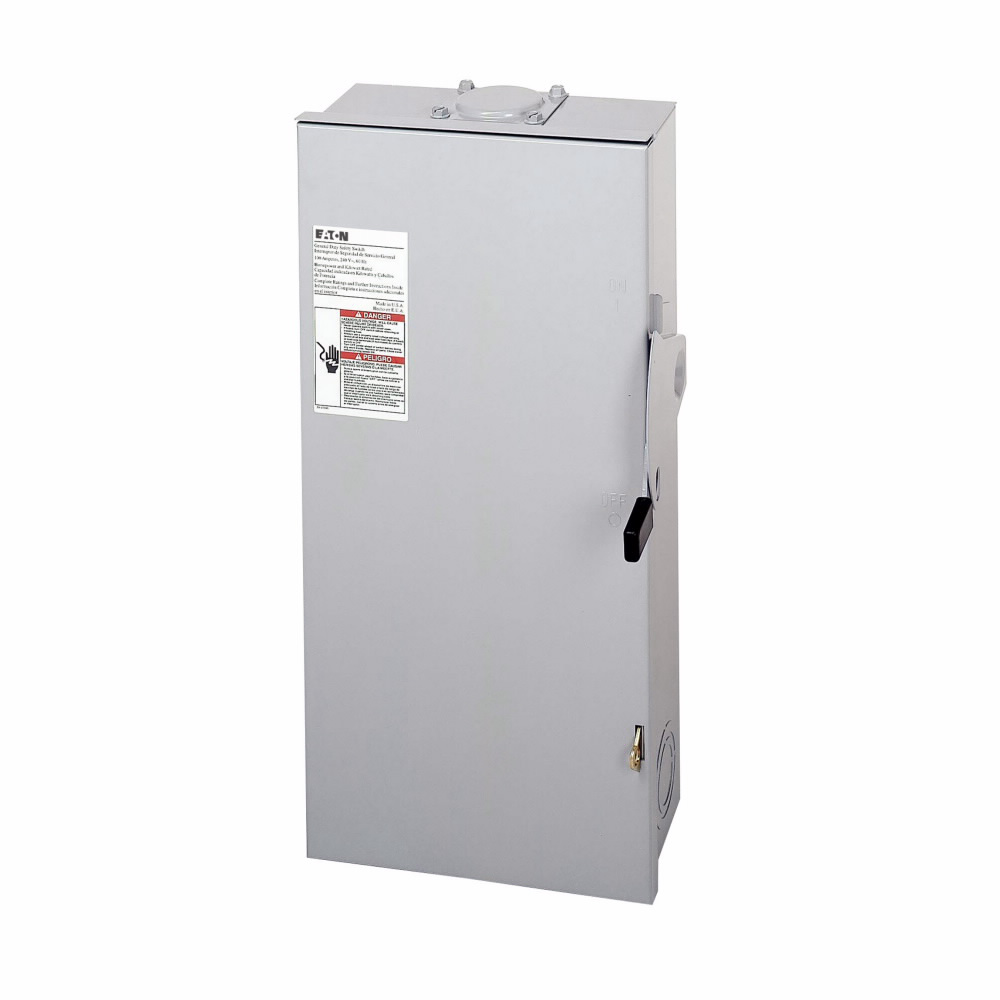

Eaton DG223URB Safety Switch 100 Amp 240 Volt 2-Pole NEMA 3R

Product Description

The Eaton DG223URB is a non-fusible general duty safety switch designed for reliable electrical control. This unit operates at 100 amps and is rated for 240 volts, making it suitable for various applications, including commercial and industrial settings. The safety switch features a NEMA 3R enclosure, ensuring protection against rain and water ingress.

• Rated for 100 amps and 240 volts
• NEMA 3R enclosure for outdoor use
• UL listed for safety and reliability

Product Highlights

This Eaton safety switch is ideal for use in residential or light commercial applications. It is commonly used to control power distribution and provide safety in electrical installations.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer

Technical Specifications

• Catalog Number: DG223URB
• Amperage Rating: 100 A
• Voltage Rating: 240 V
• Number of Poles: 2
• Number of Wires: 2
• Enclosure Type: NEMA 3R
• Material: Painted galvanized steel
• Dimensions: 7.38 x 9.13 x 19.25 inches
• Weight: 12 lb
• Applications: Commercial and institutional installations
