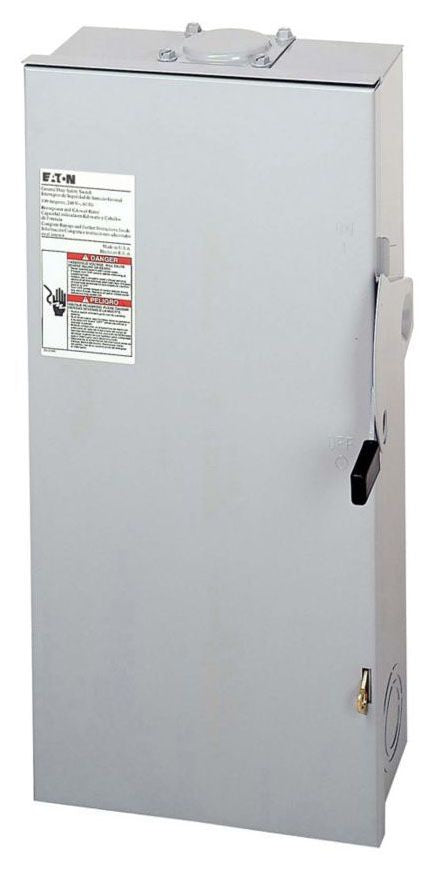

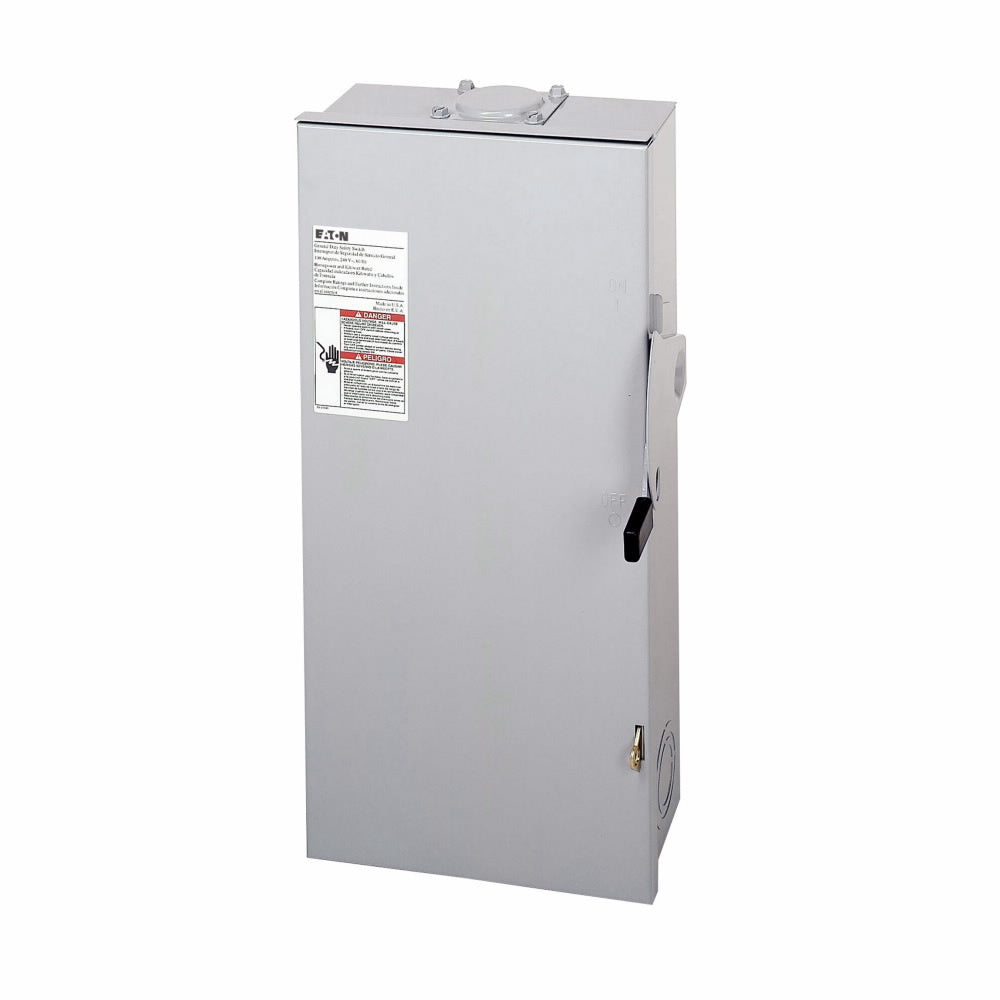

EATON DG223NRB DG Series Cartridge Fusible General Duty Safety Switch 240 VAC 100 A NEMA 3R

Product Description

The EATON DG223NRB is a general duty safety switch designed for residential and commercial applications. This safety switch operates at 240 VAC and has an amperage rating of one hundred A. It supports a power range of seven and one-half to thirty hp and features a double-pole, three-wire configuration. The installation is straightforward due to ample wire bending space. The switch is compliant with NEMA 3R standards, making it suitable for indoor and outdoor use.

• Dual pole, three-wire design
• Amperage rating of one hundred A
• Ideal for light-duty motor circuits

Product Highlights

This device is perfect for power distribution circuits and is compatible with cartridge fuses. It features a visible double-break quick make mechanism to enhance safety and reduce contact burning. The mechanism allows for easy operation and greater longevity of the contacts.

Product Information

Standard Information

• Brand: EATON
• MPN: DG223NRB

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 100 A
• Number of Poles: 2
• Contact Form: DPST
• Horsepower: 7-1/2 to 15 hp, 15 to 30 hp
• Dimensions: 6.42 in L x 8.82 in W x 7 in H
• Material: Steel
• Enclosure Type: NEMA 3R
• Mounting Type: Surface
