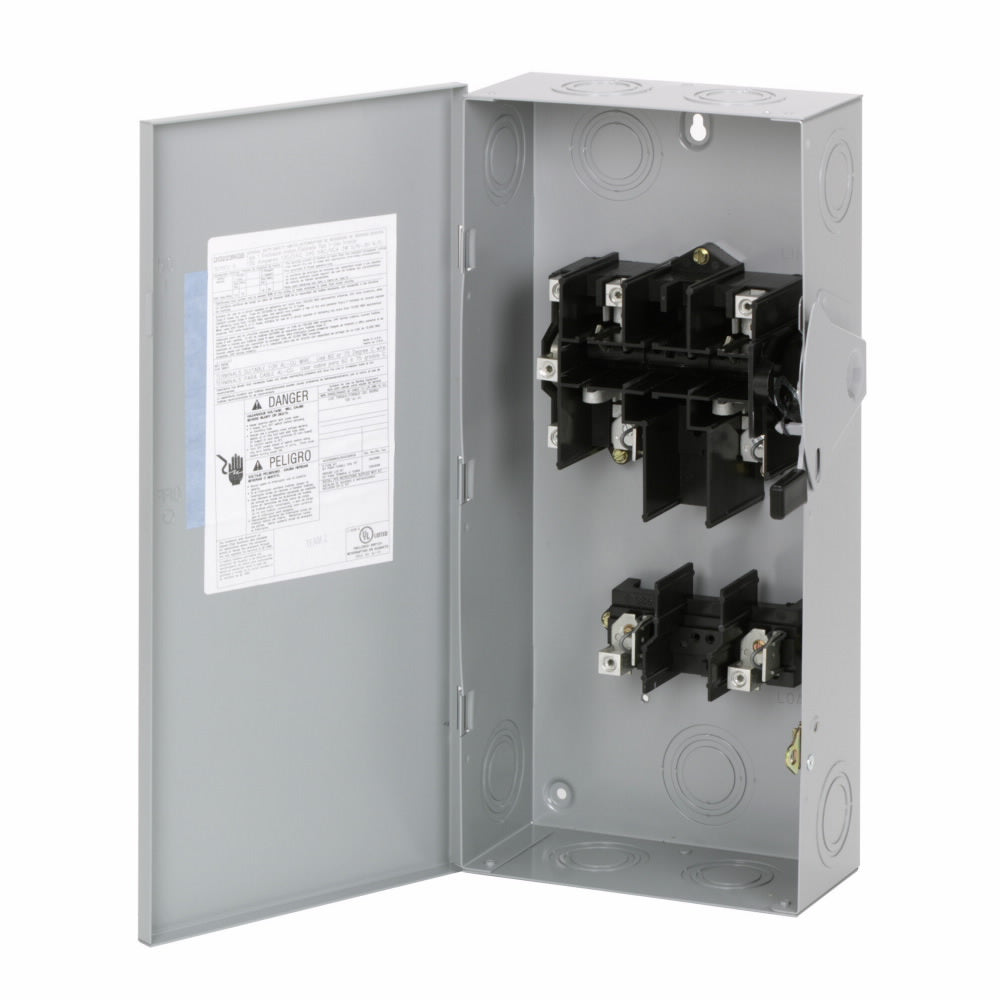

EATON DG223NGB DG Series Cartridge Fusible General Duty Safety Switch 240 VAC 100 A 7-1/2 to 15 hp 15 to 30 hp 2 Poles

Product Description

EATON DG223NGB is a general duty cartridge fusible safety switch rated for 240 VAC and 100 A. This switch is suitable for applications requiring a reliable means of disconnecting power. It is designed for both residential and commercial use, providing a means to safely conduct maintenance or repairs on electrical circuits.

• Rated at 240 VAC and 100 A.
• Two-pole and three-wire configuration.
• NEMA 1 enclosure for indoor use.

Product Highlights

The EATON DG223NGB safety switch features a visible ON/OFF indicator, ample bending space for easy installation, and a quick-break rotary blade mechanism that helps prevent contact burning.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part No: DG223NGB

Technical Specifications

• Type: Cartridge Fusible General Duty
• Voltage Rating: 240 VAC
• Amperage Rating: 100 A
• Number of Poles: 2
• Number of Wires: 3
• Mounting Type: Surface
• Enclosure Type: NEMA 1
• Dimensions: 6.42 in L x 8.82 in W x 7 in H
• Material: Steel, Painted
• Horsepower Rating: 7-1/2 to 15 hp, 15 to 30 hp
