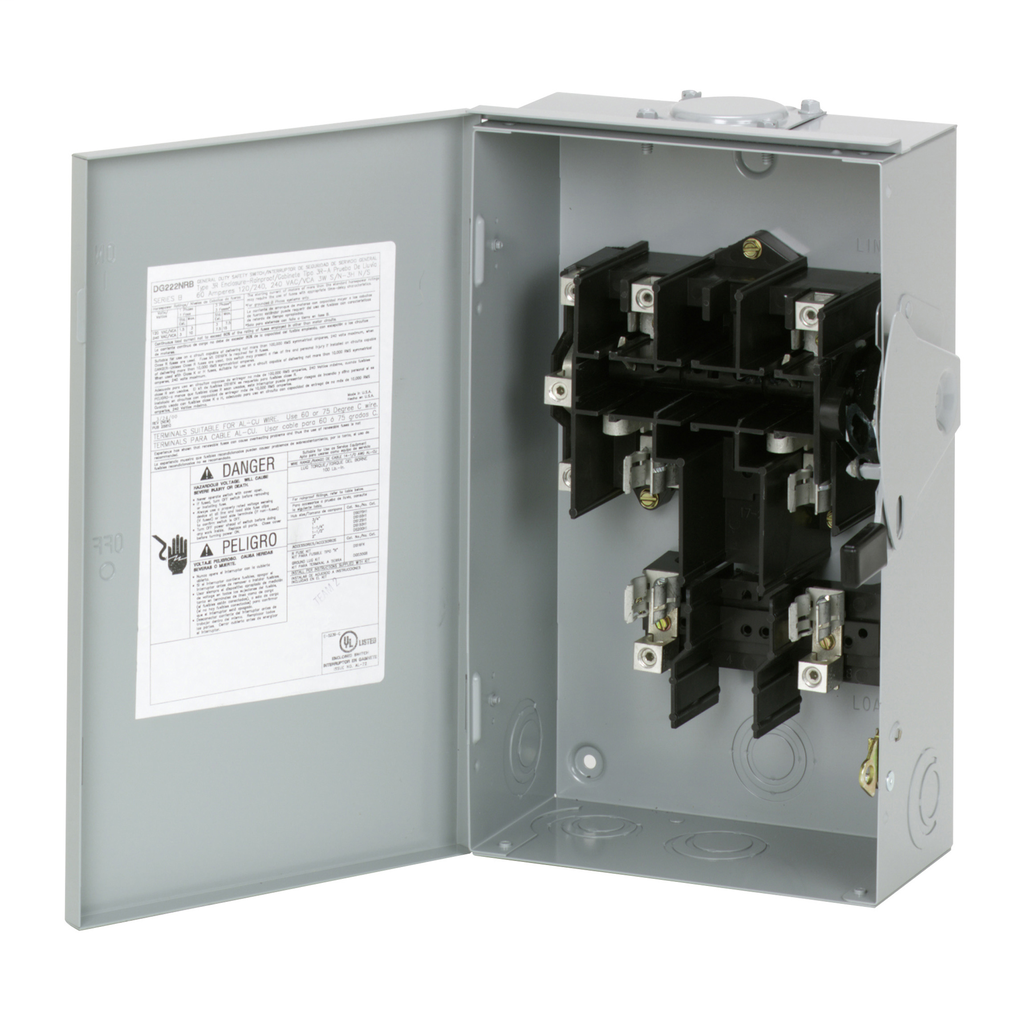

EATON DG222NRB SWITCH SAF 240VAC 60A DPST 2 1/3 3 SURF

Product Description

The EATON DG222NRB is a safety switch designed for general duty applications. This switch operates at 240VAC and provides a maximum of 60 amps. With a double-pole single-throw (DPST) configuration, the switch is suitable for light-duty circuits in commercial and residential settings.

• Surface-mounted with ample wire bending space
• NEMA 3R rated for outdoor use
• Compatible with Class H or K fuses

Product Highlights

The EATON DG222NRB allows for easy installation and maintenance due to its user-friendly design. The visible double-break quick make mechanism enhances safety by ensuring clear ON/OFF status.

Product Information

Standard Information

• Brand: EATON
• MPN: DG222NRB

Technical Specifications

• Type: Cartridge Fusible General Duty
• Voltage Rating: 240 VAC
• Amperage Rating: 60 A
• Number of Poles: 2
• Number of Wires: 3
• Finish: Galvanized/Painted
• Enclosure Type: NEMA 3R
• Dimensions: 6.41 inches L x 8.4 inches W x 7 inches H
