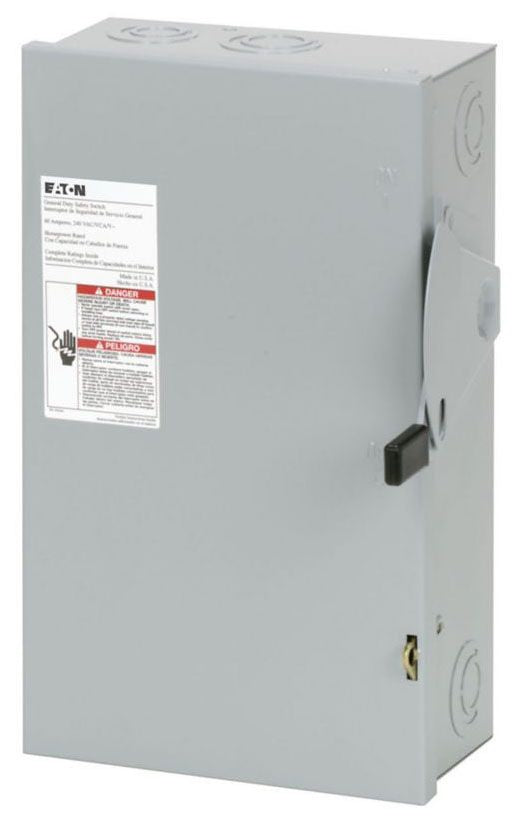

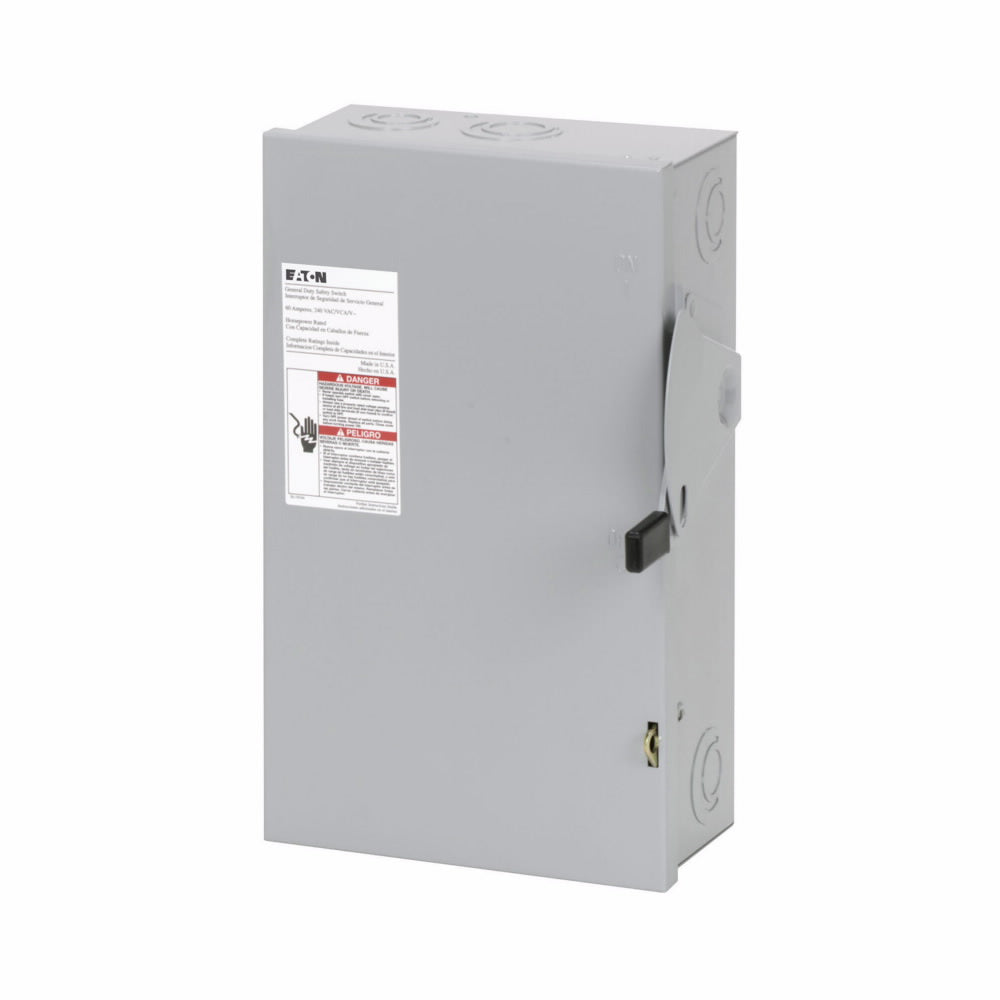

Eaton DG222NGB DG Series Cartridge Fusible General Duty Safety Switch, 240 VAC, 60 A, 3 to 10 hp, 7-1/2 to 15 hp, 2 Poles

Product Description

The Eaton DG222NGB is a cartridge fusible general duty safety switch rated for two hundred forty volts AC and sixty amps. This switch is designed for light-duty motor circuits and service entrance applications. It is suitable for residential and commercial use. The switch features a NEMA one enclosure made of painted steel and is surface mounted.

• Ample wire bending space for ease of installation.
• Visible double-break quick make mechanism for reliable operation.
• Locking mechanism enhances safety by preventing access when in the ON position.

Product Highlights

General duty safety switches are essential for protecting circuits in various applications. The DG222NGB model offers a one-third phase design with a two-pole and three-wire configuration. It can handle horsepower ratings from three to ten HP for single-phase and seven and a half to fifteen HP for three-phase systems.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: DG222NGB

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 60 A
• Number of Poles: 2
• Number of Wires: 3
• Dimensions: 6.41 in L x 8.4 in W x 7 in H
• Material: Steel
• Enclosure Type: NEMA 1
• Applications: Residential and commercial power distribution
