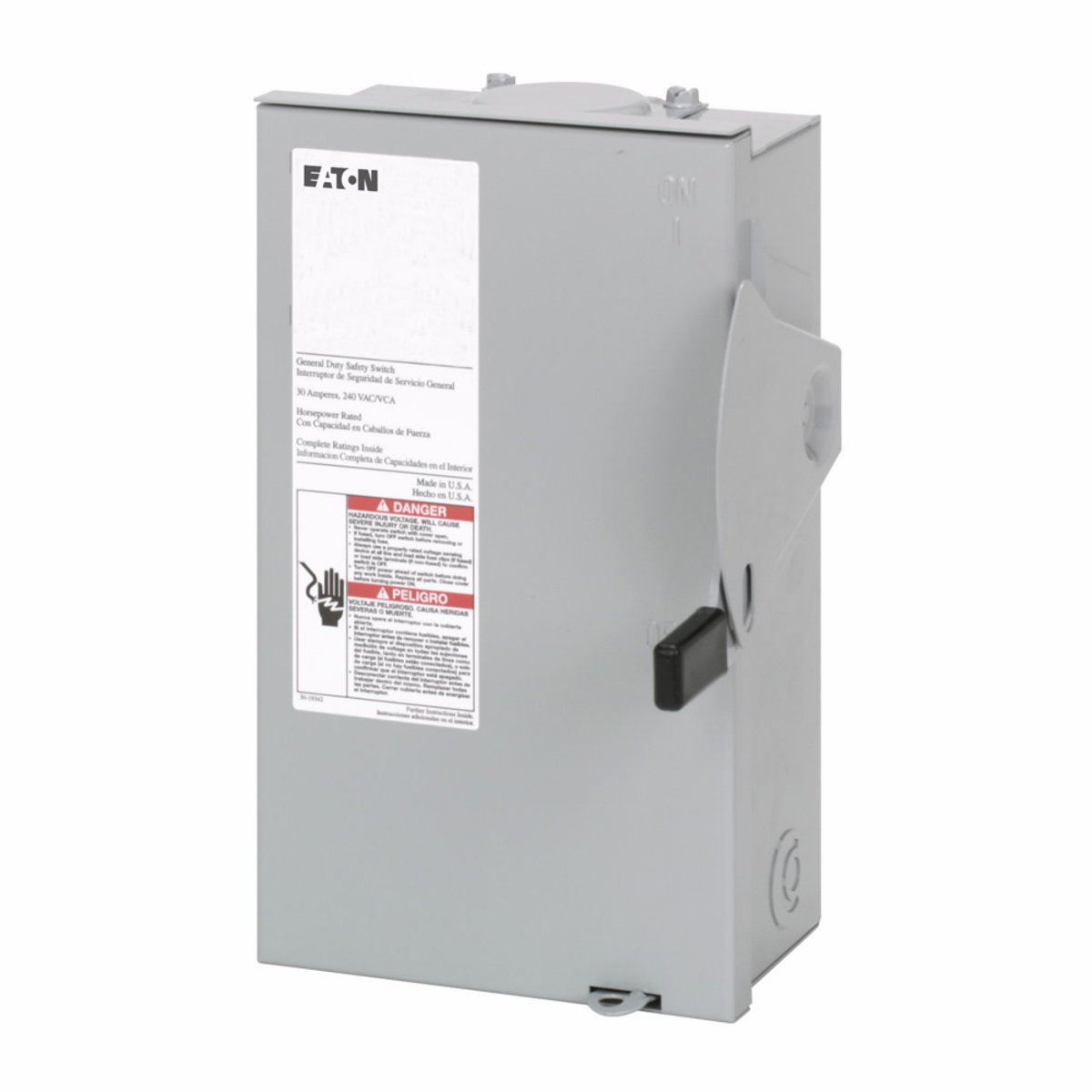

Eaton DG221NRB Safety Switch 240VAC 30A DPST 2 Poles

Product Description

The Eaton DG221NRB is a safety switch designed for general duty applications. This cartridge fusible safety switch operates at 240VAC and provides a 30A rating. It features a DPST contact with two poles and is suitable for both residential and commercial uses. The NEMA 3R enclosure protects the switch from moisture and dust, making it ideal for service entrance and light-duty motor circuit applications.

• Rated for 240VAC and 30A
• DPST contact configuration
• NEMA 3R enclosure for protection

Product Highlights

The Eaton DG221NRB is designed for safe operation with ample wiring space, visible ON/OFF indication, and a mechanically interlocked cover to prevent accidental access.

Product Information

Standard Information

• Product Type: Cartridge Fusible General Duty
• Phase: 1/3

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 240 VAC
• Horsepower Rating: 1/2 to 3 hp, 3 to 7-1/2 hp
• Number of Poles: 2
• Number of Wires: 3
• Material: Steel
• Finish: Painted Galvanized
• Dimensions: 5.73 in L x 6.1 in W x 6.25 in H
• Mounting Type: Surface
• Enclosure Type: NEMA 3R
• Contact Form: DPST
