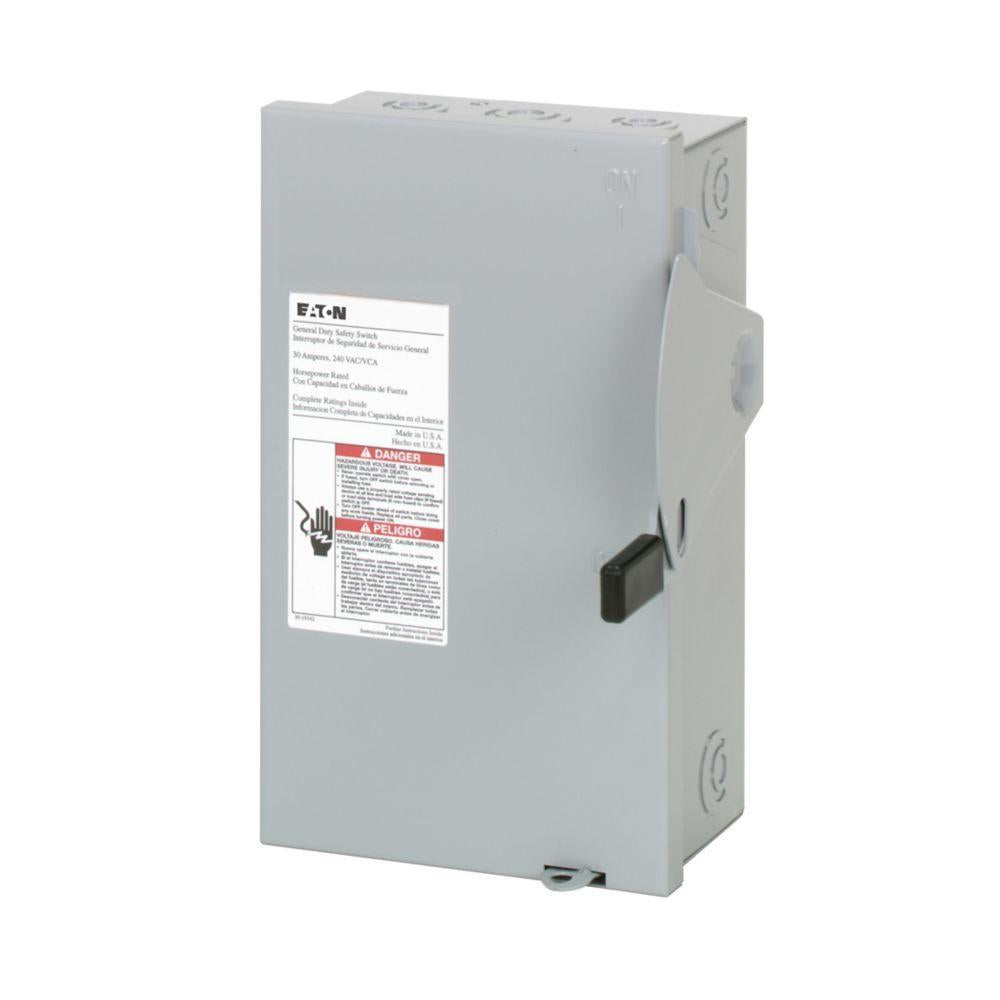

Eaton DG221NGBLORED General Duty Safety Switch 30 Amp

Product Description

The Eaton DG221NGBLORED is a general duty cartridge fuse safety switch. Rated at 30 Amp and 120/240V, this two-pole, three-wire switch features a NEMA 1 painted steel enclosure and is suitable for light duty motor circuits and service entrance applications. It uses Class H fuses and is fusible with neutral for reliable circuit protection.

• Fusible safety switch provides manual circuit control and overcurrent protection.
• Features a NEMA 1 painted steel enclosure.
• Suitable for 120/240V single-phase applications.

Product Highlights

Eaton's DG221NGBLORED is a general-duty safety switch with a fusible design, NEMA 1 enclosure, and reliable circuit protection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: DG221NGBLORED
• Country of Origin: United States of America

Technical Specifications

• Type: General Duty, Cartridge Fused
• Brand: Eaton
• Height: 6.88 Inch
• Length: 11.29 Inch
• Voltage Rating: 120/240 Volt AC
• Amperage Rating: 30 Amp
• Material: Steel
• Enclosure: NEMA 1
• Product UPC: 78668550355
• 12-Digit UPC: 786685503554
• Applications: Commercial / Institutional Buildings / Structures - Power Distribution and Controls
• Number of Poles: 2 Pole
• Number of Wires: 3 Wire
• Enclosure Material: Steel
• Enclosure Type: NEMA 1
• Finish: Painted
• Insulation Type: Class H
• Phase: 1 or 3
• NEMA Rating: NEMA 1
• Fusible: Fusible with Neutral
• Contact Configuration: DPST
• Maximum Load Capacity: 1-Phase: 3 hp At 240 Volt AC, 3-Phase: 7.5 hp At 240 Volt AC
• Fuse Type: Cartridge
• Item Name: General-Duty Safety Switch
• Standards: UL Listed
• Manufacturer Name: Eaton
• Manufacturer Part Number: DG221NGBLORED
• Product Length/Depth: 11.29 in
• Product Height: 6.88 in
• Product Width: 7.25 in
• Certifications: UL Listed
• Fuse configuration: Fusible with neutral
• Fuse class provision: Class H fuses
• Product Category: General duty safety switch
• Current Rating: 30 A
• Net Weight: 6 lbs
• Gross Weight: 6 lbs
• GTIN: 00786685503554
