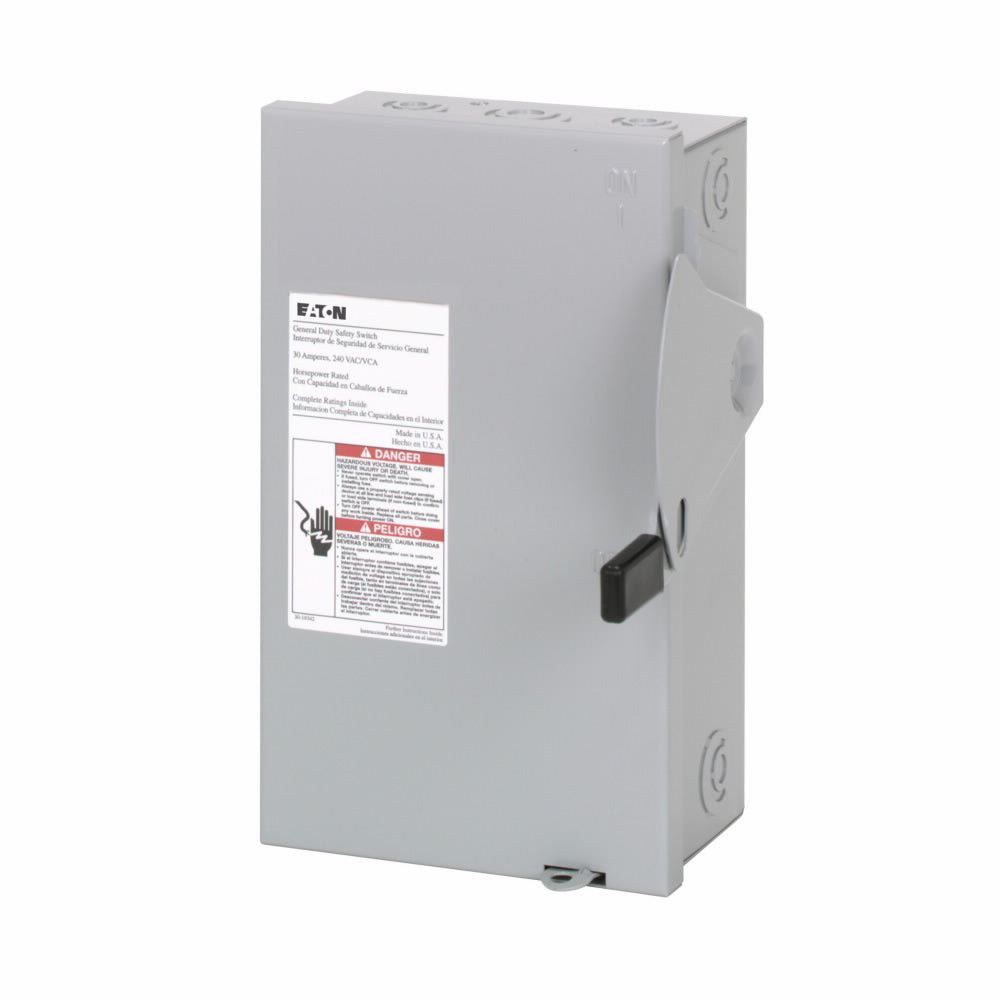

Eaton DG221NGB DG Series Cartridge Fusible General Duty Safety Switch, 240 VAC, 30 A, 1/2 to 3 hp, 3 to 7-1/2 hp, DPST Contact, 2 Poles

Product Description

The Eaton DG221NGB is a DG Series cartridge fusible general duty safety switch designed for residential and commercial applications. This switch operates at 240 volts and has a 30 amp rating. It is suitable for motors ranging from one-half to seven and one-half horsepower. The switch features a double-pole, three-wire configuration and is designed for surface mounting. It is built with a painted steel enclosure rated NEMA 1.

• Operates at 240 VAC with a 30 A capacity
• Suitable for motors between 1/2 to 3 hp and 3 to 7-1/2 hp
• DPST contact form for increased electrical safety

Product Highlights

The Eaton DG221NGB is suitable for light duty motor circuits and service entrance applications. It comes with visible ON/OFF indicators and ample wiring space for easy installations.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: DG221NGB

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 30 A
• Number of Poles: 2
• Number of Wires: 3
• Enclosure Type: NEMA 1
• Material: Steel
• Dimensions: 5.73 in L x 6.1 in W x 6.5 in H
• Horsepower Range: 1/2 to 3 hp, 3 to 7-1/2 hp
• Finish: Painted
