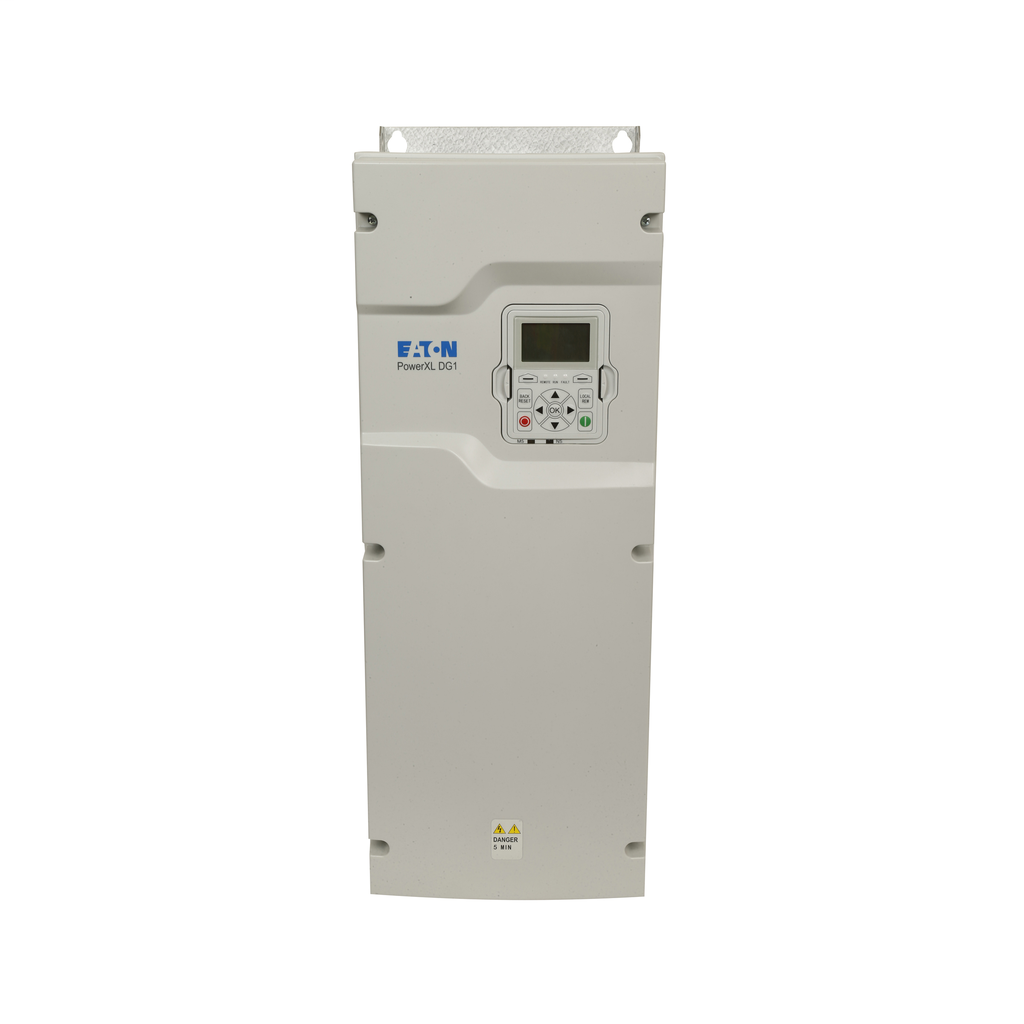

Eaton DG1-34087FN-C21C DG1,480V FR4,

Product Description

The Eaton PowerXL DG1 variable frequency drive, model DG1-34087FN-C21C, provides flexible control for commercial and industrial applications. It supports an input voltage range of 380 to 500 volts and outputs up to eighty-seven amps. Designed with IP21/type 1 enclosure features, this drive is suitable for a variety of environments.

• Integrated Ethernet, RS-485, BACnet MS/TP, Modbus TCP, and RTU ports
• High performance with 87 amps output
• LCD display for real-time diagnostics

Product Highlights

This drive offers advanced functionality through its robust design and modular construction. It includes a standard LCD display for management and monitoring of drive functions.

Product Information

Standard Information

• Type: Variable frequency drive
• Brand: Eaton

Technical Specifications

• Catalog Number: DG1-34087FN-C21C
• Input Voltage: 400 V, 380-500 V (-15%, +10%)
• Amperage Rating: 87 A
• Horsepower: 60 hp
• Weight: 84 lb
• Enclosure Type: IP21/type 1
• Dimensions: 27.5 in length, 17 in width, 15 in height
• Frequency: 50-60 Hz
