Eaton DG1-34023FB-C21C DG1,480V FR2,N

Product Description

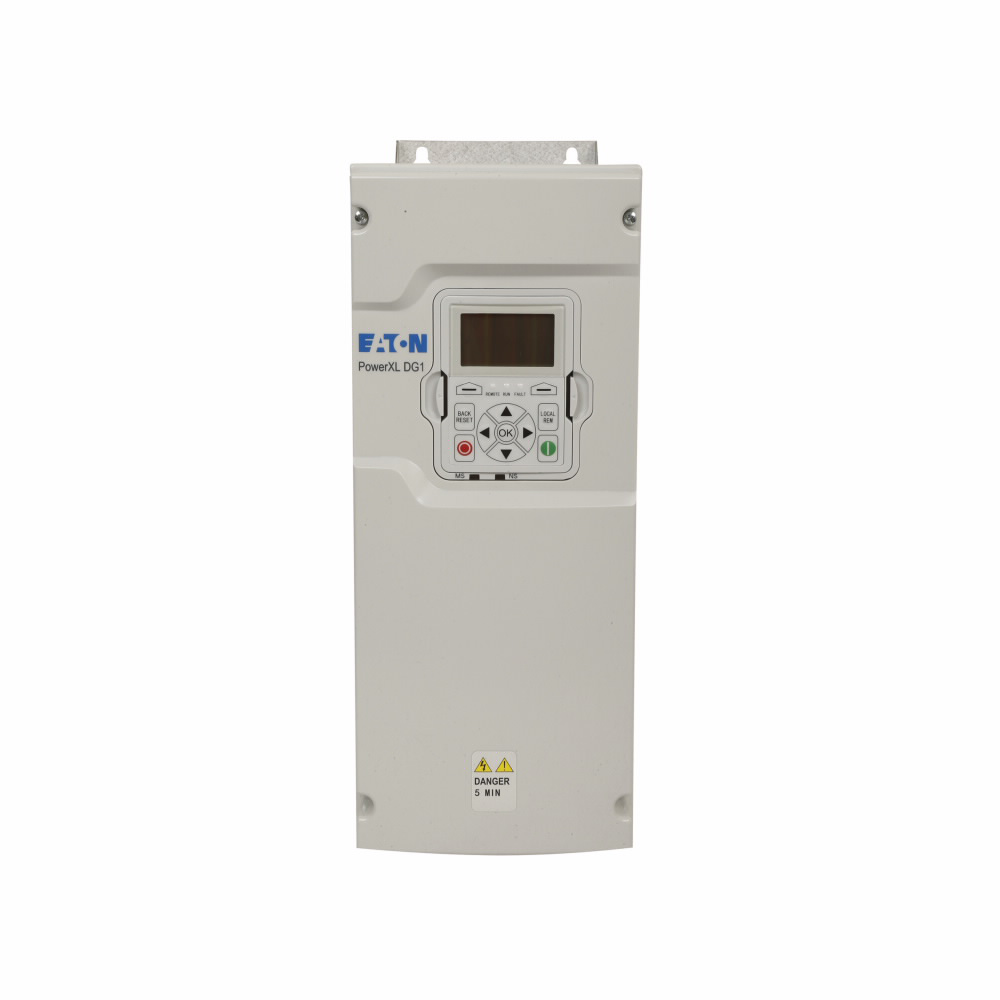

Eaton offers the PowerXL DG1 variable frequency drive with model number DG1-34023FB-C21C. This unit operates with input voltages ranging from 380 to 500 volts and delivers an output of eleven kilowatts, equating to fifteen horsepower. It supports three-phase operation at both fifty and sixty hertz, with a maximum output current of twenty-three amps. The device has an IP21 type enclosure, making it suitable for various operational environments.

• Complies with IEC standards.
• Features LCD display for easy monitoring.
• Two expansion slots for additional modules.

Product Highlights

This variable frequency drive enhances control over speed and torque in a wide range of applications. It is particularly suitable for commercial and institutional buildings.

Product Information

Standard Information

• Manufacturer: Eaton
• Country of Origin: China

Technical Specifications

• Input Voltage: 400 V, 380-500 V
• Output Power: 11 kW
• Output Current: 23 Amp
• Phase: 3
• Enclosure Rating: IP21
• Display Type: LCD
• Frequency range: 50/60 Hz
• Weight: 26.2 lb
