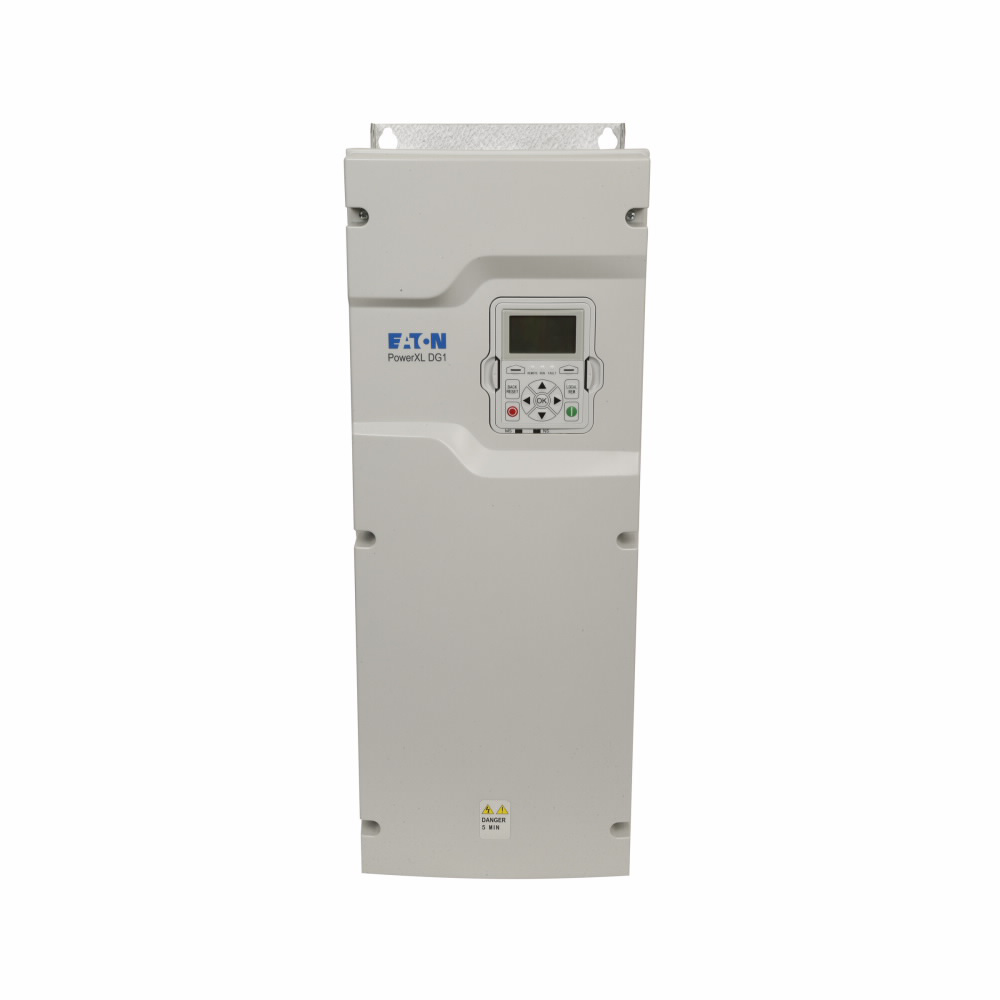

Eaton DG1-32075FN-C21C DG1,230V FR4,N

Product Description

Eaton's DG1-32075FN-C21C is a variable frequency drive designed for use in commercial and industrial environments. It operates on a voltage range of 208 to 240 volts and supports 18.5 kilowatts of power, equivalent to 25 horsepower with three-phase capacity. The product features an IP21 type 1 enclosure suitable for indoor use and includes advanced functionalities such as an internal EMC filter and DC choke.

• Supports EtherNet, RS-485, BACnet MS/TP, Modbus TCP, and RTU ports.
• Offers two expansion slots for added versatility.
• Designed for high reliability with a robust design and energy efficiency algorithms.

Product Highlights

The Eaton DG1-32075FN-C21C variable frequency drive excels in performance for a variety of applications including commercial and institutional buildings. Its flexible features cater to different operational needs.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: DG1-32075FN-C21C
• Voltage: 220/230 Volt
• Horsepower: 25 hp
• Wattage: 18.5 kW
• Frequency: 50-60 Hz
• Height: 17 Inch
• Length: 28 Inch
• Weight: 80 lb
