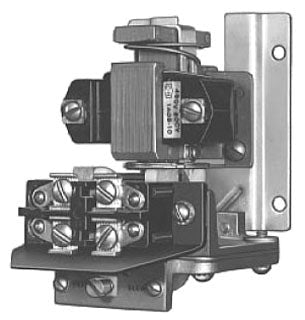

Eaton D80NE1B On Delay Pneumatic Timer 220/240V 1NO-1NC

Product Description

The Eaton D80NE1B is a D80 Series on-delay pneumatic timer that provides adjustable timed control using a 220/240 V AC coil (50/60 Hz) and one normally open and one normally closed timed contact. The unit offers an adjustable time delay of 0.5 to 180 seconds, uses a pneumatic timing mechanism, does not accept instantaneous contacts, and is field convertible between ON and OFF delay by rotating the solenoid assembly 180 degrees.

• 220/240 V AC coil, 50/60 Hz; 1 NO and 1 NC timed contacts; adjustable delay 0.5–180 seconds
• Pneumatic timing mechanism; will not accept instantaneous contacts; field convertible ON/OFF delay (rotate solenoid 180 degrees)
• Panel mount design; dimensions 7.3 in x 5.5 in x 1.9 in; UL Listed and CSA Certified

Product Highlights

Adjustable 0.5–180 s on-delay pneumatic timer with 1 NO/1 NC timed contacts and 220/240 V AC coil

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D80NE1B
