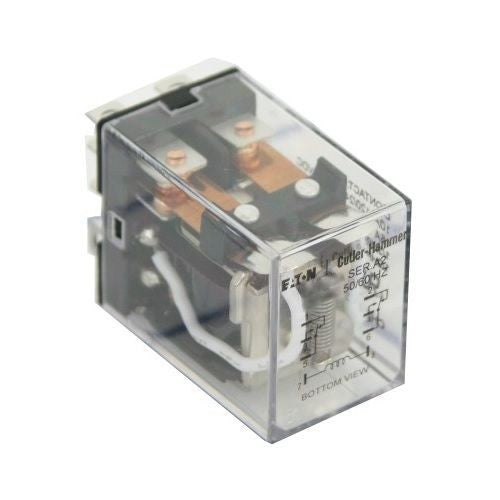

Eaton D7PR4A CH 4PDT Relay 120VAC Coil

Product Description

The EATON D7PR4A is a general purpose relay with a plain cover. This D7 Series relay has a 4PDT contact form, a 120 VAC coil, and an amperage rating of 15 A. It is suitable for automation, logic control equipment, commercial, structures and institutional buildings applications.

• Cost effective control relay with high dielectric strength and high current carrying capacity
• Arc barrier equipped relay with high dielectric strength
• Silver alloy contact material

Product Highlights

The relay features a mechanical flag indicator, 2220 Ohm coil-resistance and a 14-blade terminal style. It has an IP40 enclosure and operates in temperatures from -40 to 131 deg F.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D7PR4A
• Country of Origin: China

Technical Specifications

• Amperage Rating: 15 A
• Application: Automation, Logic Control Equipment, Commercial, Structures and Institutional Buildings Applications
• Coil Voltage: 120 VAC
• Contact Form: 4PDT
• Enclosure: IP40
• Frequency Rating: 50/60 Hz
• Manufacturer Part Number: D7PR4A
• Mounting Type: DIN Rail/Flange/Panel
• Number of Poles: 4
• Series: D7 Series
• Standards/Approvals: RoHS Compliant|CSA File No. LR217069|CSA File No. LR217017|UL File No. E65657|UL File No. E37317|cULus Recognized|CE Certified
• Temperature Rating: -40 to 131 deg F
• Terminal Type: Plug-In
• Type: Plain Cover Standard
• Product Type: General-purpose relay
• Accessories: Flag indicator, lock-down door, finger-grip cover, I.D. tag
• Actuator: Test button
• Indicators: LED indicating light
• Resistance: 2,220
• Voltage: 250V AC
• Terminals: 14-Blade
• Contact Material: AgCdO Contacts
