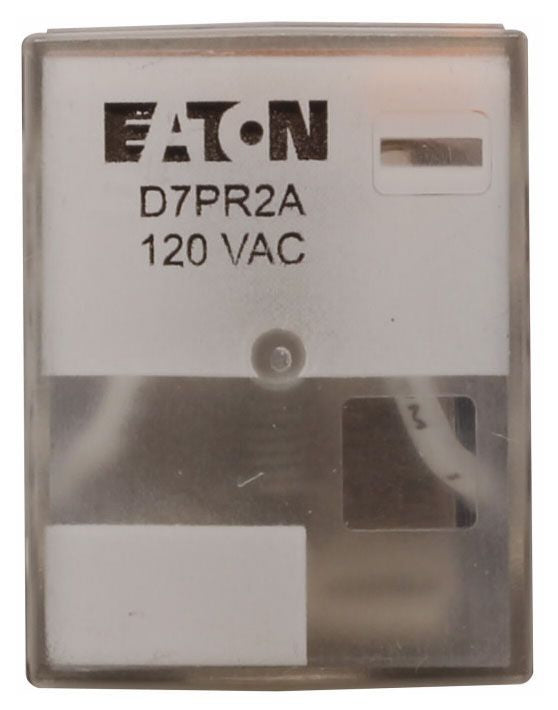

Eaton D7PR2A Ac Operated Standard Pilot Light

Product Description

The EATON D7PR2A is an AC-operated standard pilot light designed for use in industrial and commercial control panel applications. Pilot lights serve as visual indicators, confirming circuit status, power presence, or equipment operating state. The D7PR2A is a compact unit built for panel-mount installation and is handled by electricians and control panel integrators during new construction or maintenance work. Its small footprint and lightweight build make it practical for dense enclosure layouts where space is limited.

This pilot light is suited for standard AC-powered control circuits found in industrial machinery, HVAC control panels, motor control centers, and commercial electrical enclosures. It provides a clear visual indication of circuit status and is appropriate for both original equipment installations and replacement scenarios. Electricians and panel builders working on control systems will find this a straightforward drop-in component for indicator light positions in existing or new panel designs.

Key Features

• AC-operated design suitable for standard control circuit voltages
• Compact form factor at 1.5 inches x 2.5 inches x 2.0 inches for space-constrained panel installations
• Lightweight at 0.05 pounds, minimizing added load in enclosures
• Standard pilot light configuration for broad panel application use

Compatibility

Designed as an OEM-style replacement or new-installation pilot light for AC-powered control panels and industrial enclosures requiring standard indicator light components.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the panel before removing or installing the pilot light. Verify that supply voltage matches the AC rating of the D7PR2A before energizing. Avoid overtightening the panel-mount hardware, as this can crack the lens or housing.

Technical Specifications

• Operation Type: AC Operated
• Length: 1.5 inches
• Width: 2.5 inches
• Height: 2.0 inches
• Weight: 0.05 pounds
• UPC: 78211416045

Standard Information

• Brand: EATON
• Manufacturer Part Number: D7PR2A
