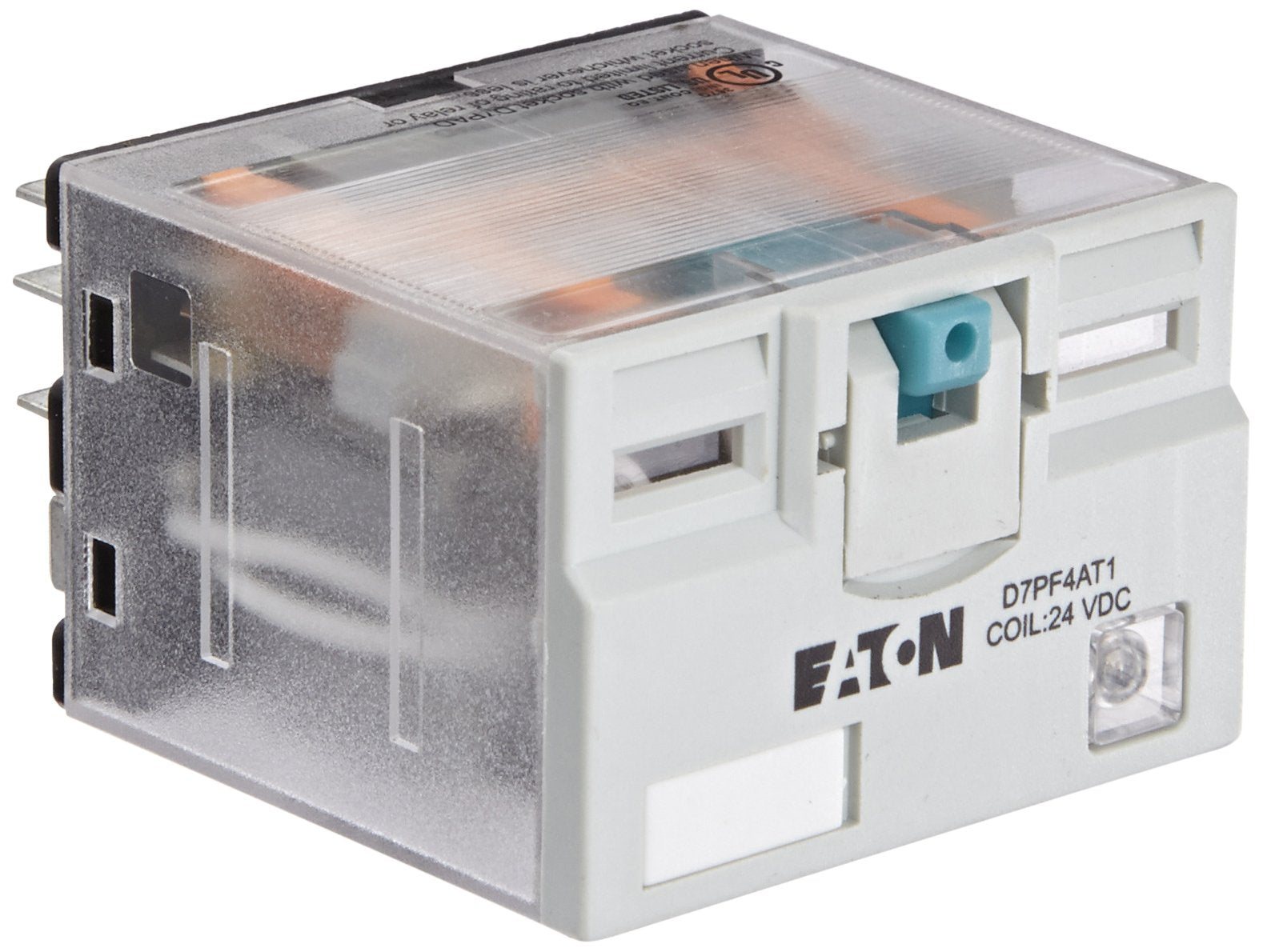

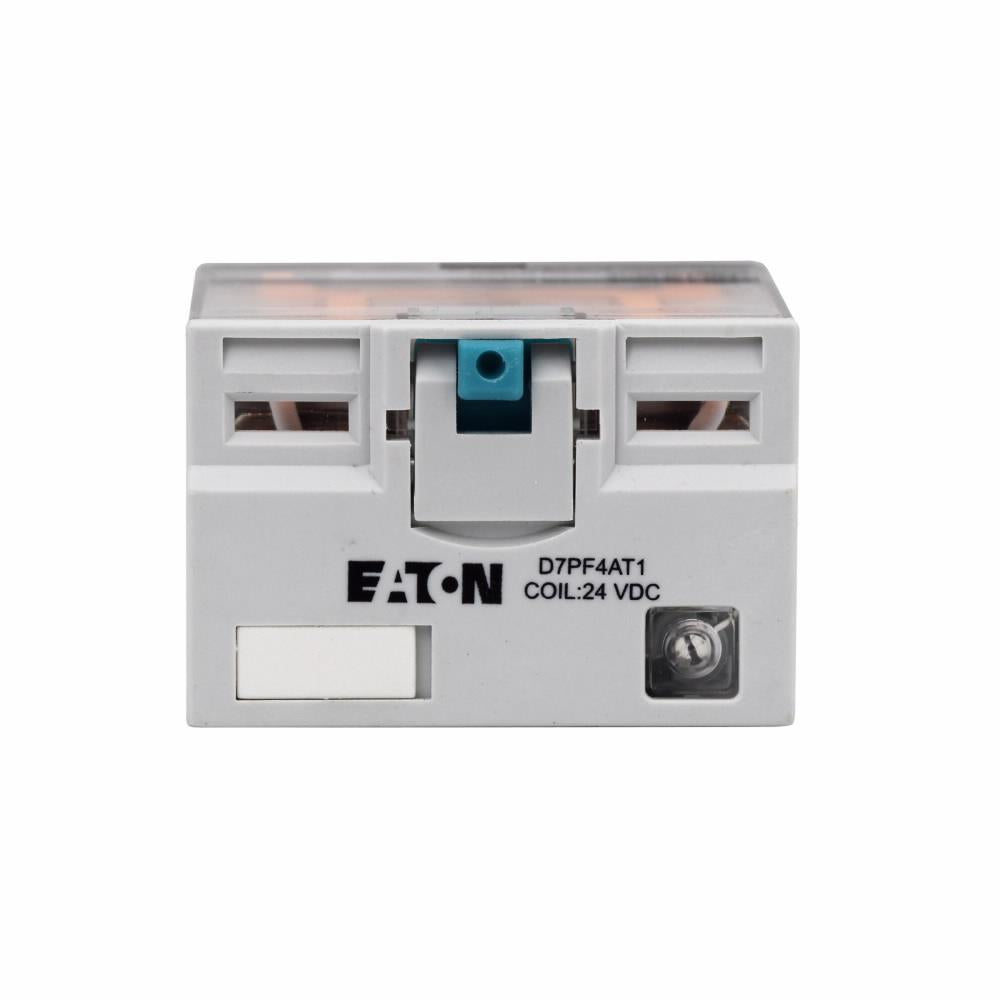

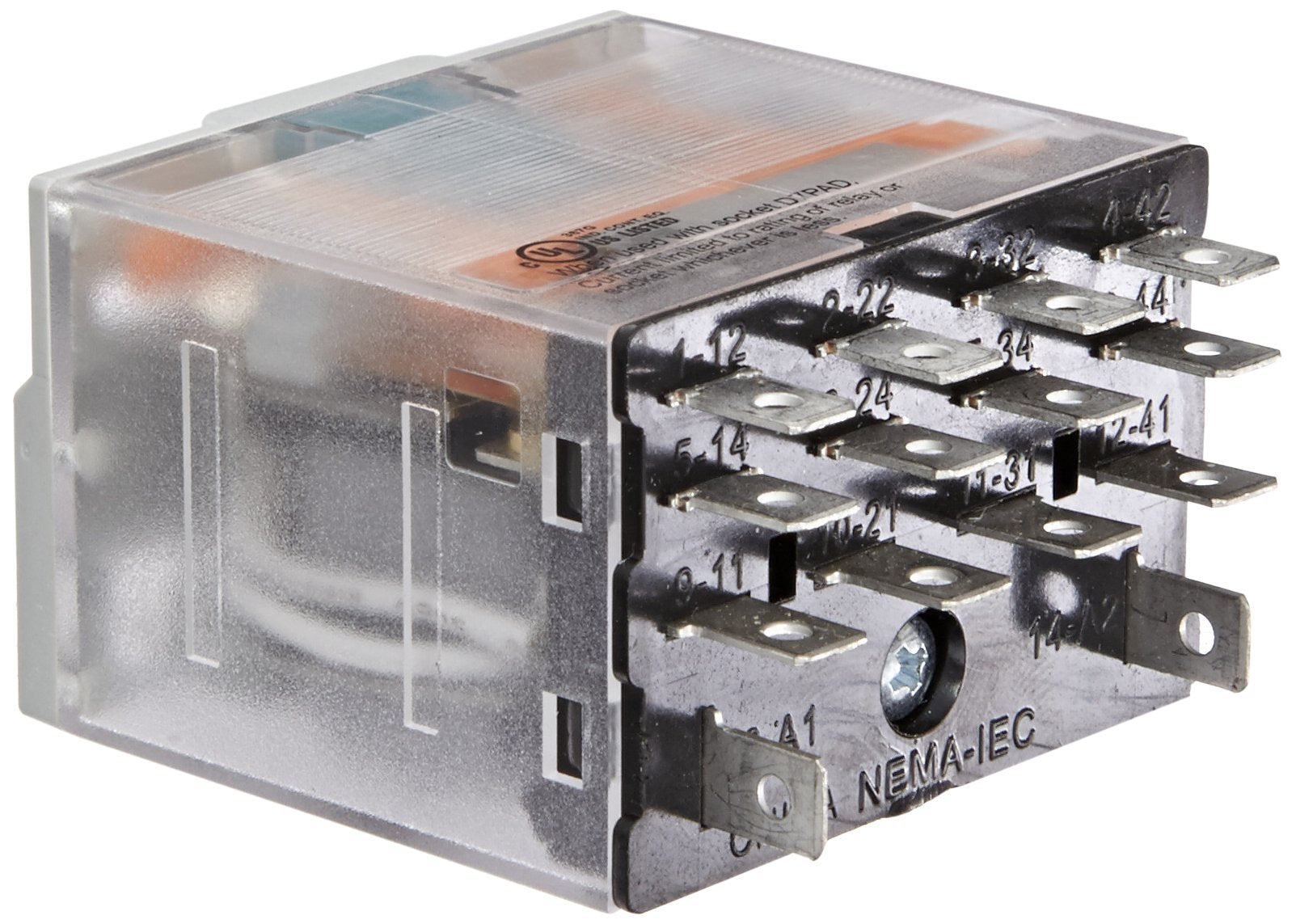

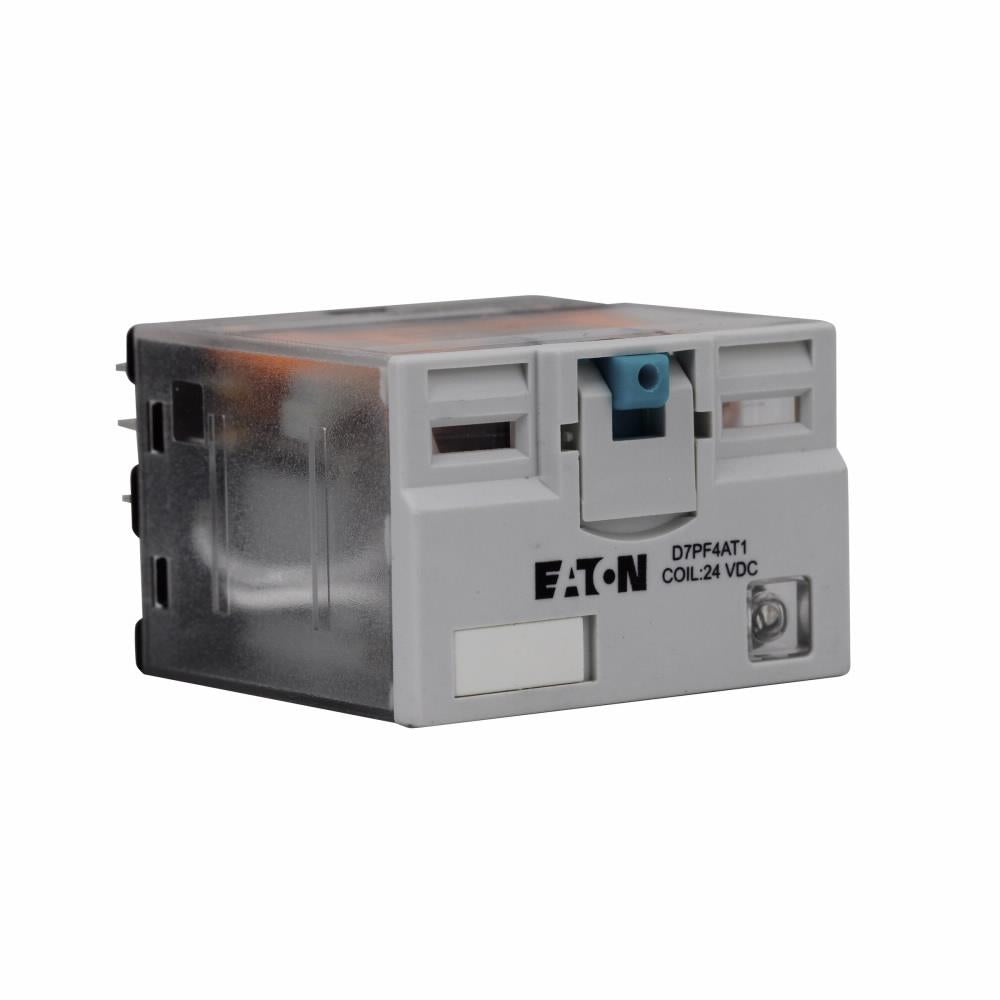

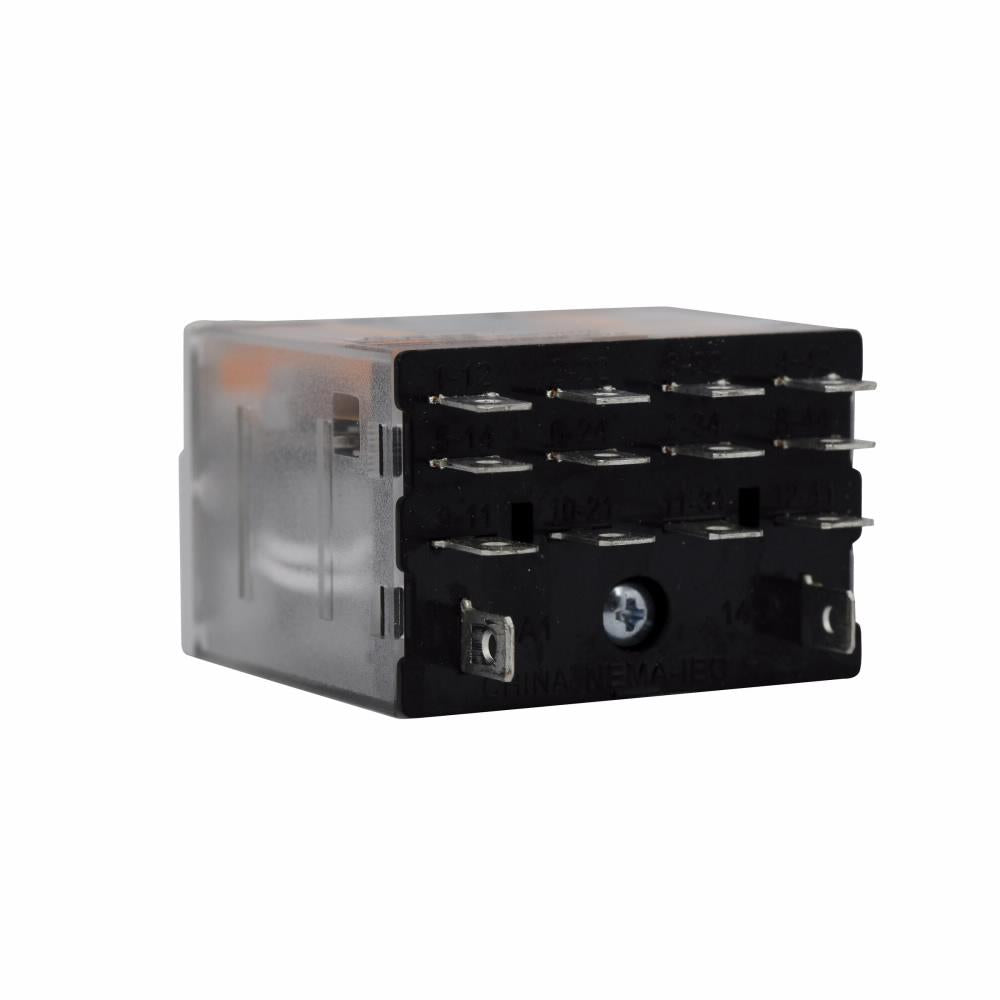

Eaton D7PF4AT1 General Purpose Relay 24 VDC

Product Description

The Eaton D7PF4AT1 is a cost effective control relay with high dielectric strength and high current carrying capacity. This general purpose relay features a 4PDT contact form, a coil voltage of 24 VDC, and a contact rating of 15 A. It is suitable for DIN rail or panel mounting and has an IP40 enclosure.

• Features a flag indicator to show relay status
• Equipped with a bi-polar LED status lamp for reverse polarity applications
• Includes a finger grip cover for easy removal from sockets

Product Highlights

The Eaton D7PF4AT1 relay is ideal for use in commercial and institutional buildings, offering reliable performance and easy installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D7PF4AT1
• Country of Origin: US

Technical Specifications

• Contact Rating: 15 A
• Enclosure Type: IP40
• Frequency Rating: 50/60 Hz
• Mounting Type: DIN Rail/Panel
• Number of Poles: 4
• Power Rating: 1/2 hp, 1 hp, 1.5 W
• Series: D7 Series
• Temperature Rating: -40 to 131 deg F
• Terminal Type: Plug-In
• Type: Fixed Contact Full Featured
• Contact Form: 4PDT
• Coil Voltage: 24 VDC
• Coil Resistance: 388 Ohms
• Contact Material: Silver alloy
• Application: Commercial, Institutional Buildings and Structures
• Includes: LED, Test Button, Flag Indicator, Lock Down Door, Finger Grip Cover and ID Tag
• Standards/Approvals: CE Marking|CSA Certified File No. LR217017/LR217069|cULus Listed|RoHS Compliant|UL Listed File No. E65657/E37317
• IP Rating: IP40
• Max Voltage: 300 V
• Product Type: General-purpose relay
• Cover: Full featured
• Options: LED test button, flag indicator, lock-down door, finger-grip cover, ID tag
• Maximum Amperage: 15A
