Eaton D7PF3AA General Purpose Relay 120 VAC

Product Description

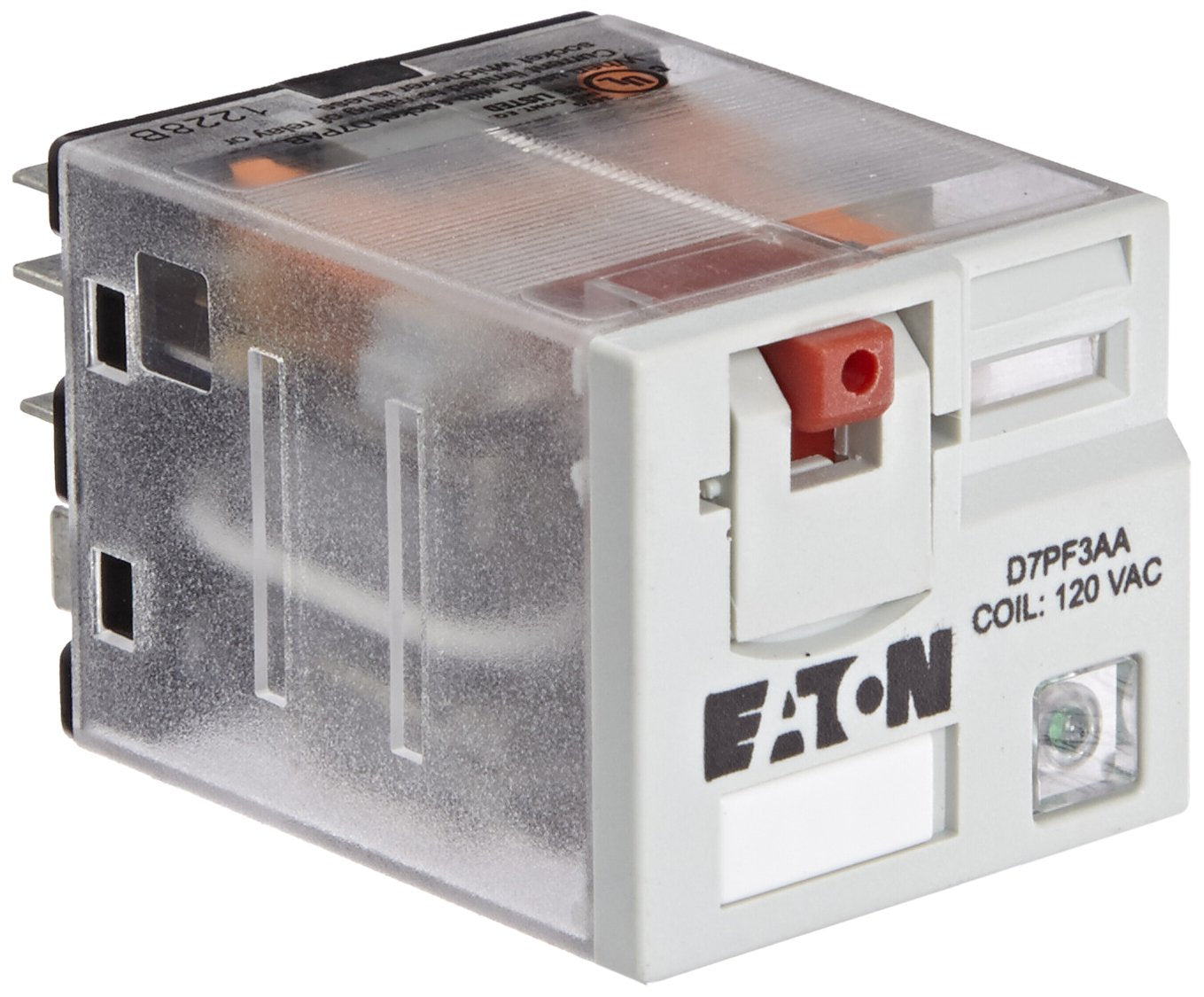

The EATON D7PF3AA is a D7 Series general-purpose plug-in relay with a full-featured cover and a 120V coil. It features 2770 Ohms resistance, a plug-in terminal, and a 3PDT contact configuration. The relay has a 15A contact rating and silver alloy contacts, all within an IP40 enclosure. Ideal for commercial and institutional applications.

• Full featured cover
• 120V coil with 2770 Ohms resistance
• IP40 enclosure

Product Highlights

The EATON D7PF3AA relay is designed for diverse applications, providing reliable performance and easy installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D7PF3AA
• Country of Origin: China

Technical Specifications

• Type: General-purpose Relay
• Brand: Eaton
• Height: 1.1 Inch
• Length: 1.6 Inch
• Voltage: 300 Volt
• Enclosure: IP40
• IP Rating: IP40
• Resistance: 2770 Ohms
• Max Voltage: 300 V
• Applications: Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
• Coil Voltage: 120 VAC

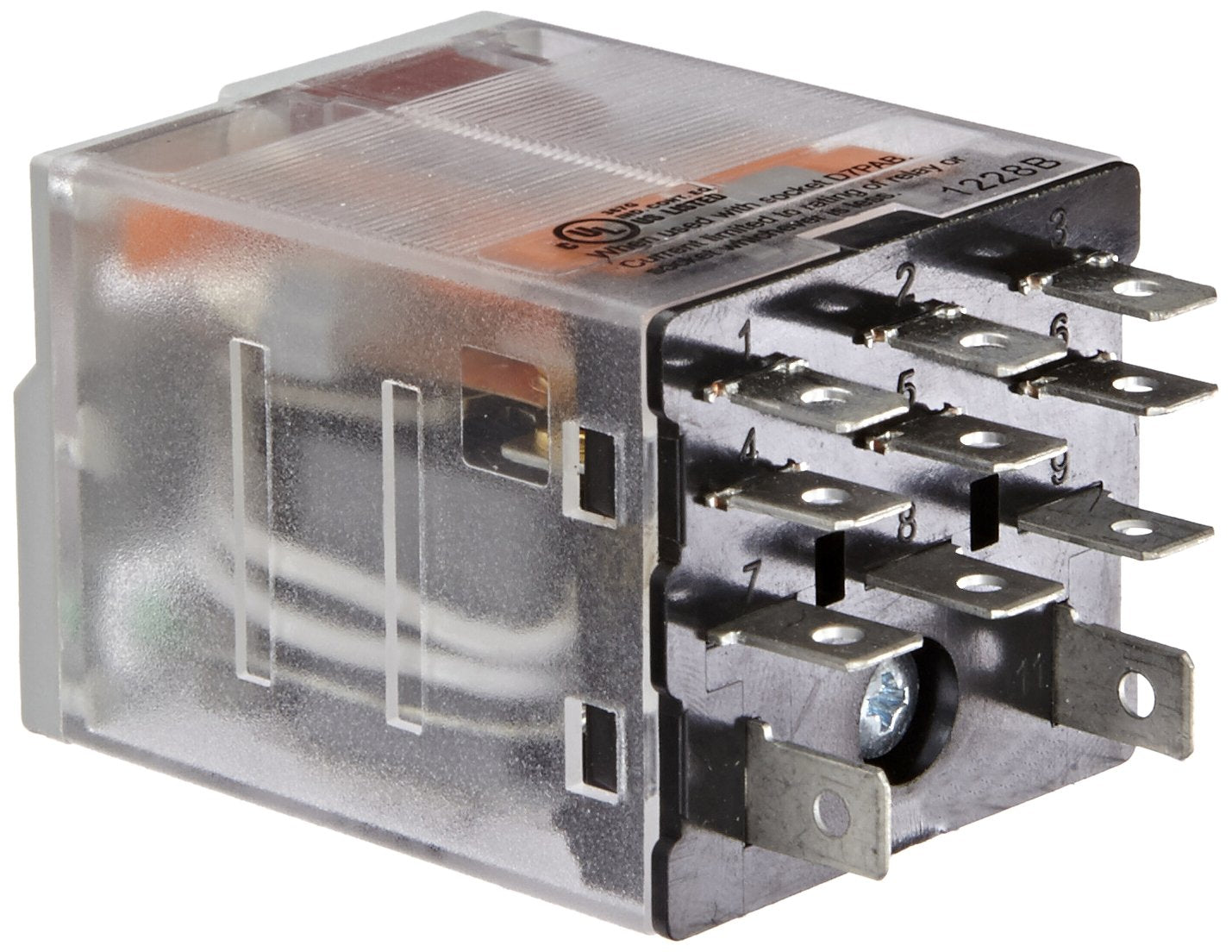

• Terminal Type: Plug-In
• Contact Rating: 15 A
• Contact Material: Silver Alloy
• Contact Configuration: 3PDT
• Rated Current: 15A
• Coil Resistance: 2.77ohm
• Amperage Rating: 20 A
• Frequency Rating: 50/60 Hz
• Includes: LED, Test Button, Flag Indicator, Lock Down Door, Finger Grip Cover and ID Tag
• Manufacturer Part Number: D7PF3AA
• Mounting Type: DIN Rail/Panel
• Number of Poles: 3
• Power Rating: 1/2 hp, 1 hp, 1.4 W

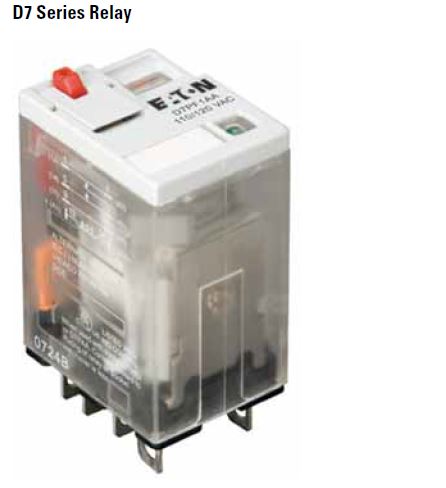

• Series: D7 Series
• Temperature Rating: -40 to 131 deg F
• Product Name: Eaton General-purpose relay
• Catalog Number: D7PF3AA
• Product Length/Depth: 1.6 in
• Product Width: 1.2 in
• Compliances: RoHS Compliant CE Marked
• Certifications: CSA file No. LR217069 UL Listed file E65657 cRUus UL Listed file E37317 CSA file No. LR217017
• Product Type: General-purpose relay
• Cover: Full featured
• Options: LED test button, flag indicator, lock-down door, finger-grip cover, ID tag
• Voltage - max: 300 V switching
• Mounting: Socket
• Indicators: Mechanical Flag
• Test Button: Yes
• Country of Origin: China - Subject to change
