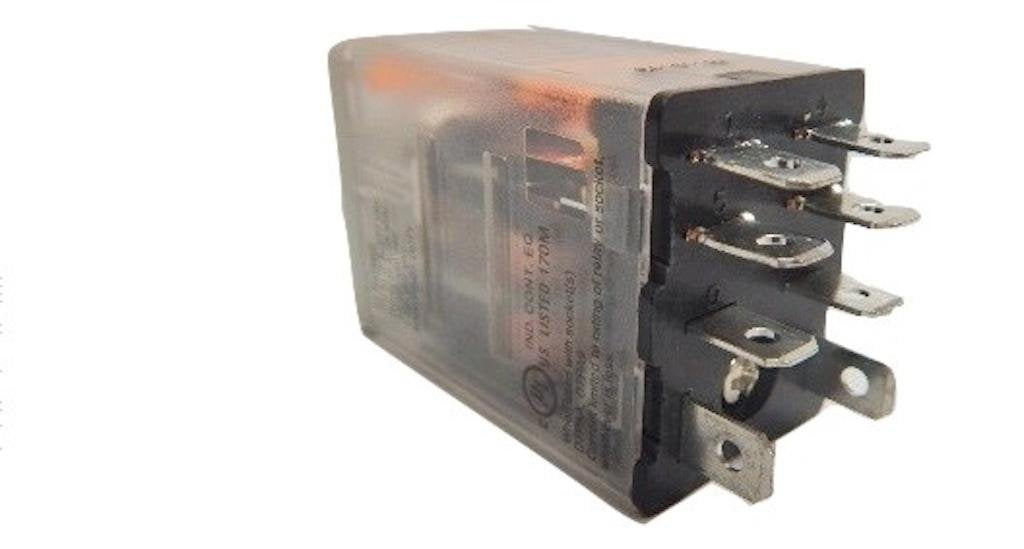

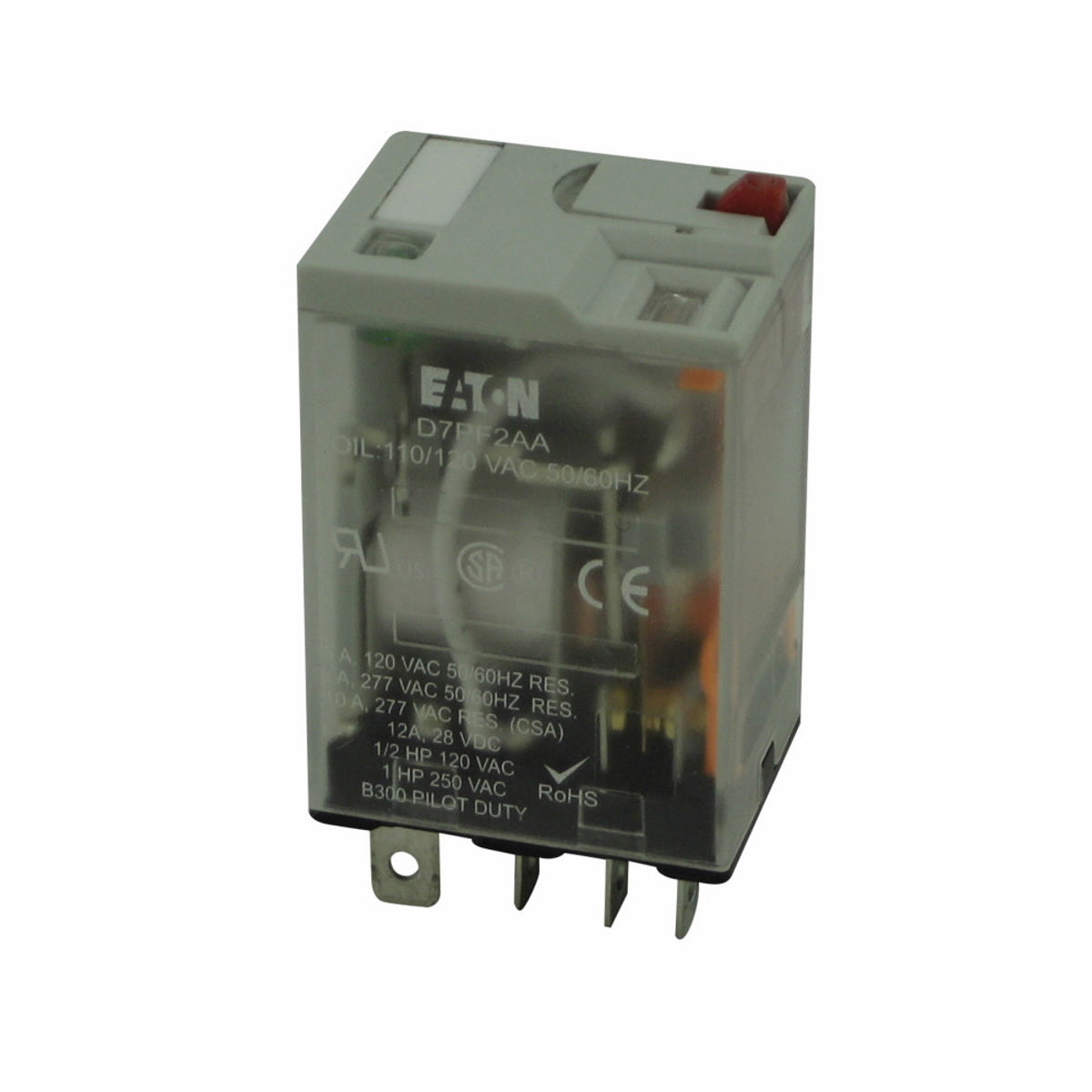

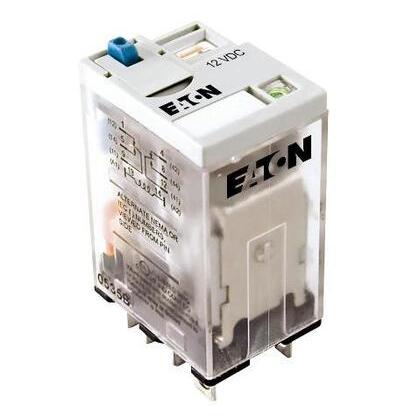

Eaton D7PF2AT D7 Series General Purpose Plug-In Relay 24V

Product Description

The EATON D7PF2AT is a D7 Series general purpose plug-in relay with a full featured cover and a 24V coil. It has a DPDT contact configuration and a 15A contact rating. Installation is quick and easy with little risk of damage, and it is designed to fit into tight spaces. It is ideal for controlling smaller loads or those requiring high current-carrying capacity.

• DPDT contact configuration
• 15A contact rating
• IP40 enclosure

Product Highlights

This general purpose relay is suitable for a wide array of applications and control circuit designs. Features include a flag indicator, bi-polar LED status lamp, and color coded pushbuttons.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D7PF2AT
• Country of Origin: China

Technical Specifications

• Catalog Number: D7PF2AT
• Manufacturer: Eaton
• Brand: Eaton
• Country of Origin: China
• Made in USA: No
• Application: Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
• Contact Configuration: DPDT
• Contact Rating: 15 A
• Standard: UL Listed file E37317,CSA file No. LR217017,UL Listed file E65657,CSA file No. LR217069,cRUus,CE Marked,RoHS Compliant
• UPC: 782116484812
• GTIN: 00782116484812
• Item Type: General-purpose relay
• Enclosure Type: IP40
• Frequency Rating: 50/60 Hz
• Mounting Type: DIN Rail/Panel
• Number of Poles: 2
• Power Rating: 1/2 hp, 1 hp, 0.9 W
• Series: D7 Series
• Temperature Rating: -40 to 131 deg F
• Terminal Type: Plug-In
• Type: General Purpose Relay, DPDT
• Amperage Rating: 20 A
• Contact Form: DPDT
• Coil Voltage: 24 VAC
• Coil: 24V
• Resistance: 180 Ohms
• Product Name: Eaton General-purpose relay
• Product Length/Depth: 2 in
• Product Height: 1 in
• Product Width: 1 in
• Compliances: CE Marked RoHS Compliant
• Certifications: UL Listed file E37317 CSA file No. LR217017 cRUus CSA file No. LR217069 UL Listed file E65657
• Product Type: General-purpose relay
• Cover: Full featured
• Options: LED test button, flag indicator, lock-down door, finger-grip cover, ID tag
• Contact material: Silver alloy
• Voltage - max: 300 V switching
• Poles: 2
• Volts AC Control: 24
• Mounting: Socket
• Amps: 15
• Base: 8-Blade
