Eaton D7PAA Socket Rly 300VAC 16A D7PR1 D7PR2 IP20

Product Description

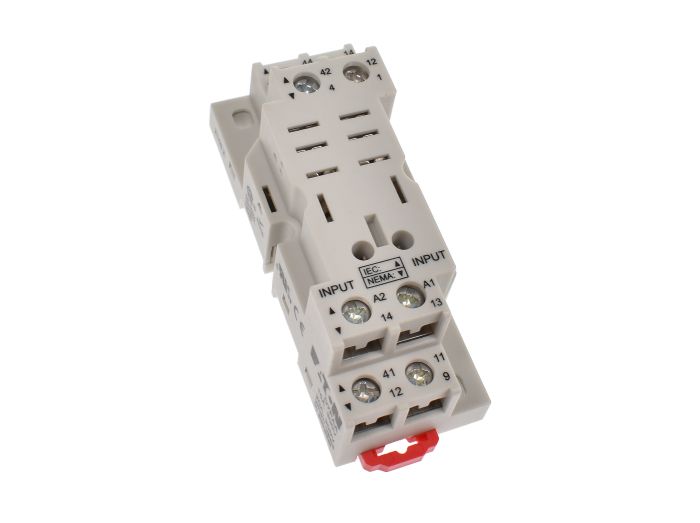

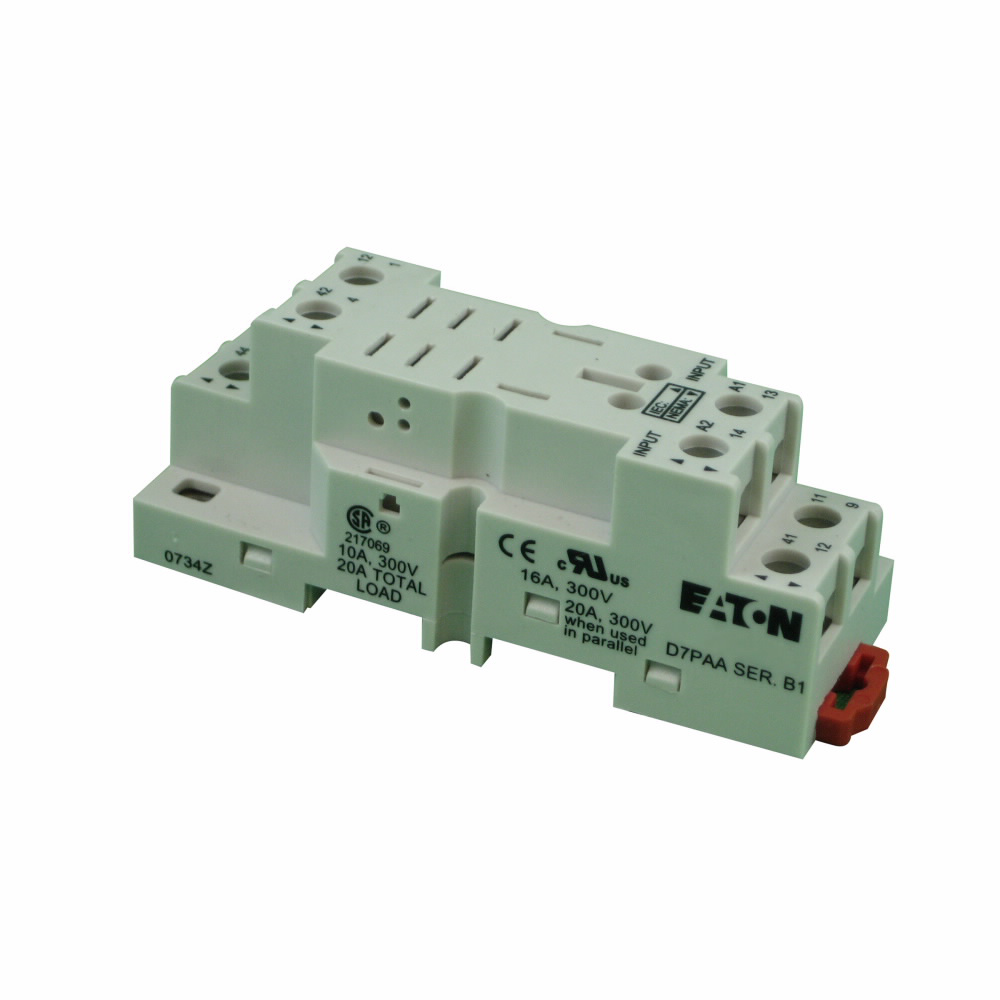

The EATON D7PAA is a relay socket, size B module, with a 300 VAC voltage rating and 16 A amperage rating. It is designed for use with D7PR1, D7PR2, D7PF1 and D7PF2 relays. This socket features DIN rail, panel, and threaded mounting options and has screw clamp terminals with an IP20 enclosure. Installation of general purpose relays are quick, easy and secure with little risk of damage.

• Size B Module
• 300 VAC voltage rating
• 16 A amperage rating

Product Highlights

The EATON D7PAA relay socket is suitable for use with D7PR1, D7PR2, D7PF1 and D7PF2 relays and ideal for any application from controlling smaller loads, to those requiring high current-carrying capacity.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D7PAA
• Country of Origin: China

Technical Specifications

• Type: Size B Module
• Manufacturer: EATON
• Mounting Type: DIN Rail/Panel/Threaded
• Terminal Type: Screw Clamp
• Enclosure Type: IP20
• Voltage Rating: 300 VAC
• Amperage Rating: 16 A
• Suitable For Use With: D7PR1, D7PR2, D7PF1 and D7PF2 Relay
• Brand: Eaton
• Width: 1.18 in
• Height: 1.18 Inch
• Length: 3.33 Inch
• Voltage: 300 Volt
• Amperage: 16 Amp
• Enclosure: IP20
• IP Rating: IP20
• Used With: D7PR1, D7PR2, D7PF1, D7PF2 Plug-In Relays
• Applications: For Commercial, Institutional Buildings and Structures
• Conductor Size: 14-12 AWG
• Product Series: D7
• Number of Poles: 2 Pole
• Enclosure Rating: IP20
• Catalog Number: D7PAA
• Country of Origin: China
• Made in USA: No
• Application: Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
• Mounting: Din Rail
• Standard: CSA file No. LR217017,cRUus,UL Listed file E37317,CSA file No. LR217069,UL Listed file E65657,CE Marked,RoHS Compliant
• Item Type: General-purpose relay
• Minimum Order Qty: 1
• Order Interval: 1
• Series: D7
• Catalog ID: C-HD7PAA
• Manufacturer Part Number: D7PAA
• Family Series: Cutler Hammer, Div of Eaton Relays
• Max Voltage: 300 V
• Current Rating: 16 A
• Panel, DIN Rail: Panel, DIN Rail
• Net Weight: 0.115 lbs
• Gross Weight: 0.115 lbs
• Volts AC: 300
• Socket: Socket
• Amps: 16
• Base: 8-Blade
• Socket Mounting: DIN Rail
• Socket Terminals: Screw
• No. of Pins: -
• Product Range: D7 Series
• SVHC: No SVHC (17-Dec-2015)
• Rated operational current: 16A nominal
• Wiring connection: Screw clamping
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed file E65657 cRUus UL Listed file E37317 CSA file No. LR217017 CSA file No. LR217069
• Catalog Notes: Protection category (finger safe)
• Product Type: General-purpose relay
• Module size: B
• Nominal voltage: 300 V
