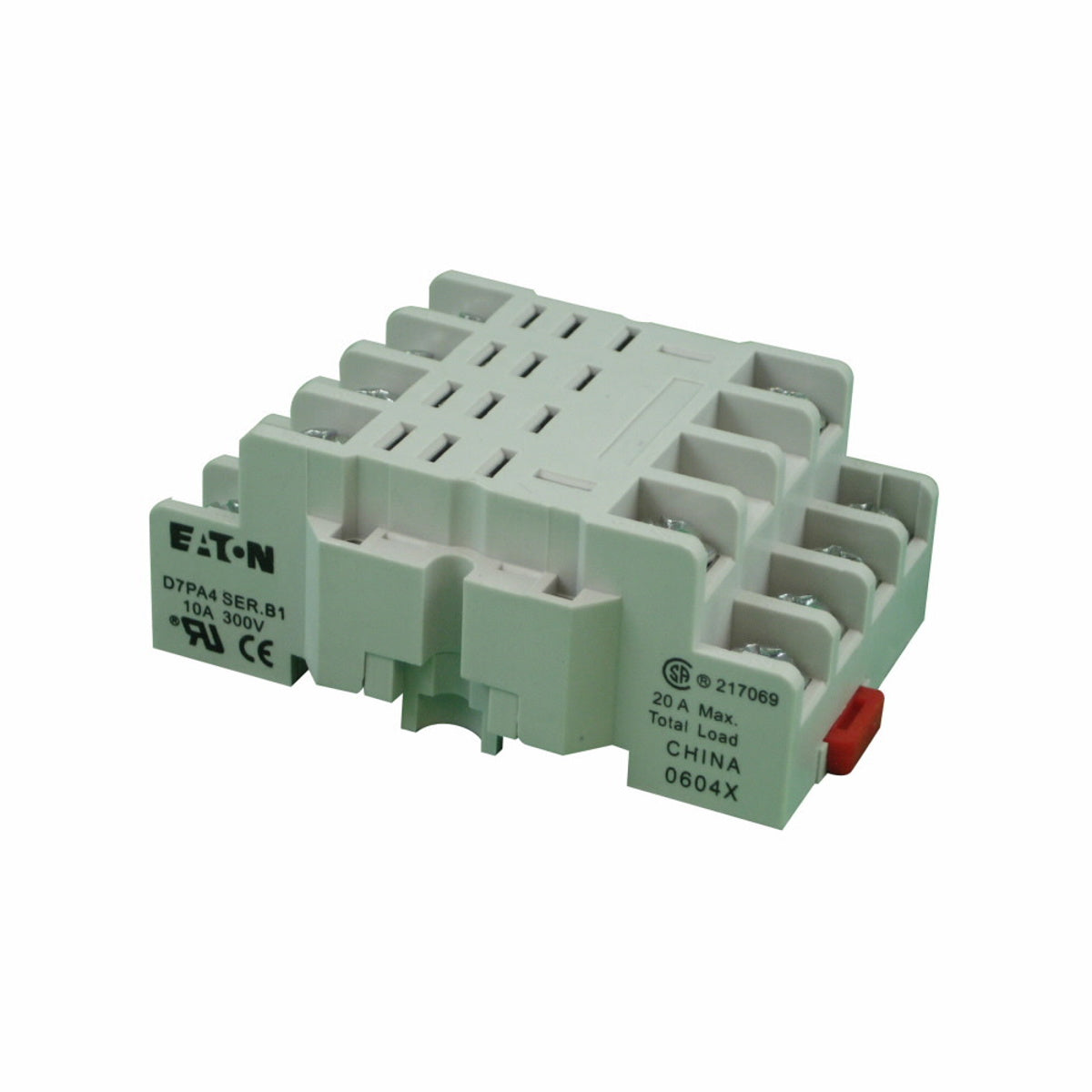

EATON D7PA4 SOCKET RLY 250 VAC/125 VDC 10A 4 D7 SERIES RELAY SOCKET

Product Description

EATON D7PA4 is a relay socket designed for general-purpose plug-in relays with a voltage rating of 250 VAC and 125 VDC. It is suitable for use with the D7 Series general-purpose relays, providing reliable performance for various control circuit applications. This socket allows for easy and secure installation, ensuring minimal risk of damage during setup.

• Voltage rating of 250 VAC and 125 VDC.
• Designed for use with D7 Series general-purpose plug-in relays.
• DIN rail mounting with screw clamp terminal connection.

Product Highlights

This relay socket is engineered for reliability and versatility, making it ideal for applications ranging from small load control to high-current tasks.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: D7PA4

Technical Specifications

• Amperage Rating: 10 A
• Number of Poles: 4
• Voltage Rating: 250 VAC / 125 VDC
• Dimensions: 2.74 inches L x 1.63 inches W x 1.09 inches H
• Mounting Type: DIN Rail
• Terminal Type: Screw Clamp
• Standards: RoHS Compliant, CE Marked, UL Listed, CSA Certified
