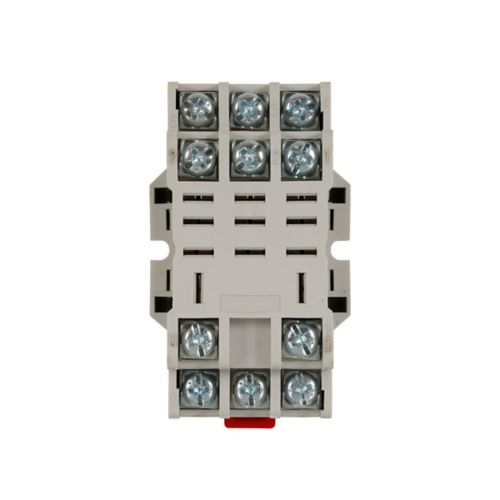

Eaton D7pa3 General-purpose relay, D7 3p socket

Product Description

The Eaton D7PA3 is a general-purpose relay, D7 3P SOCKET. This socket features 11 blades and is designed for DIN rail or panel mounting with screw terminals and clamping plates. It supports 10 Amps @ 300V. Ideal for various industrial and automation applications requiring reliable relay connections.

• Base: 11-Blade
• Mounting: DIN Rail, Panel
• Amps: 10

Product Highlights

Socket with 11-Blade, Screw & Clamp Terminals. DIN/Panel Mount.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D7PA3

Technical Specifications

• Product Name: Eaton General-purpose relay
• Catalog Number: D7PA3
• UPC: 782116063079
• Product Length/Depth: 2.8 in
• Product Height: 1 in
• Product Width: 1.4 in
• Product Weight: 0.15 lb
• Compliances: CE Marked RoHS Compliant
• Certifications: cRUus CSA Certified
• Product Type: General-purpose relay
• Type: Socket
• Specification Met: Din
• Manufacturer: Eaton
• Base: 11-Blade
• Mounting: DIN Rail, Panel
• Amps: 10
