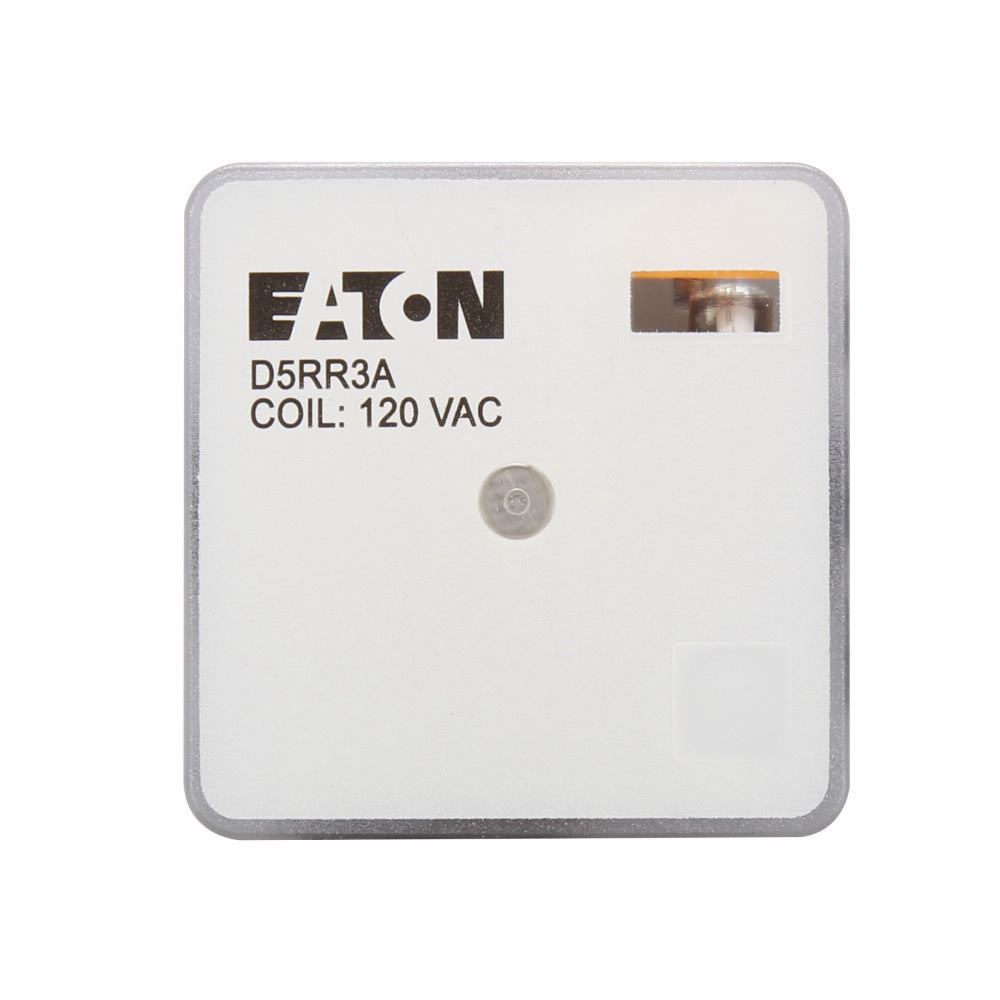

Eaton D5RR3A General Purpose Relay ICE CUBE 120VAC 10A 3PDT

Product Description

The Eaton D5RR3A General Purpose Relay offers reliable switching for various applications. Perfect for industrial control systems, this 3PDT Ice Cube Relay operates with a 120VAC coil, supporting up to 16 Amp switching.

• Efficient operation with a robust design for demanding environments.
• Flexible installation options including DIN Rail, Panel, or PCB mounting.
• Designed for longevity with 5 million mechanical cycles and 100,000 electrical cycles.

Product Highlights

Featuring a compact and durable polycarbonate body, this relay ensures consistent performance under extreme conditions from -40 to 131 degrees Fahrenheit. Its silver alloy contacts and plain cover provide additional durability and resistance against environmental factors.

Product Information

Standard Information

• Brand: Eaton
• MPN: D5RR3A

Technical Specifications

• Dimensions: 2.1 inches L x 1.37 inches W x 1.4 inches H
• Voltage: 300 Volt (Max)
• Contact Configuration: 3PDT
• Contact Rating: 10 A
• Coil Voltage: 120 VAC
• Amperage Rating: 16 A
• Temperature Range: -40 to 131 degrees F
• Standards: UL Listed, CSA Certified, CE Marked
