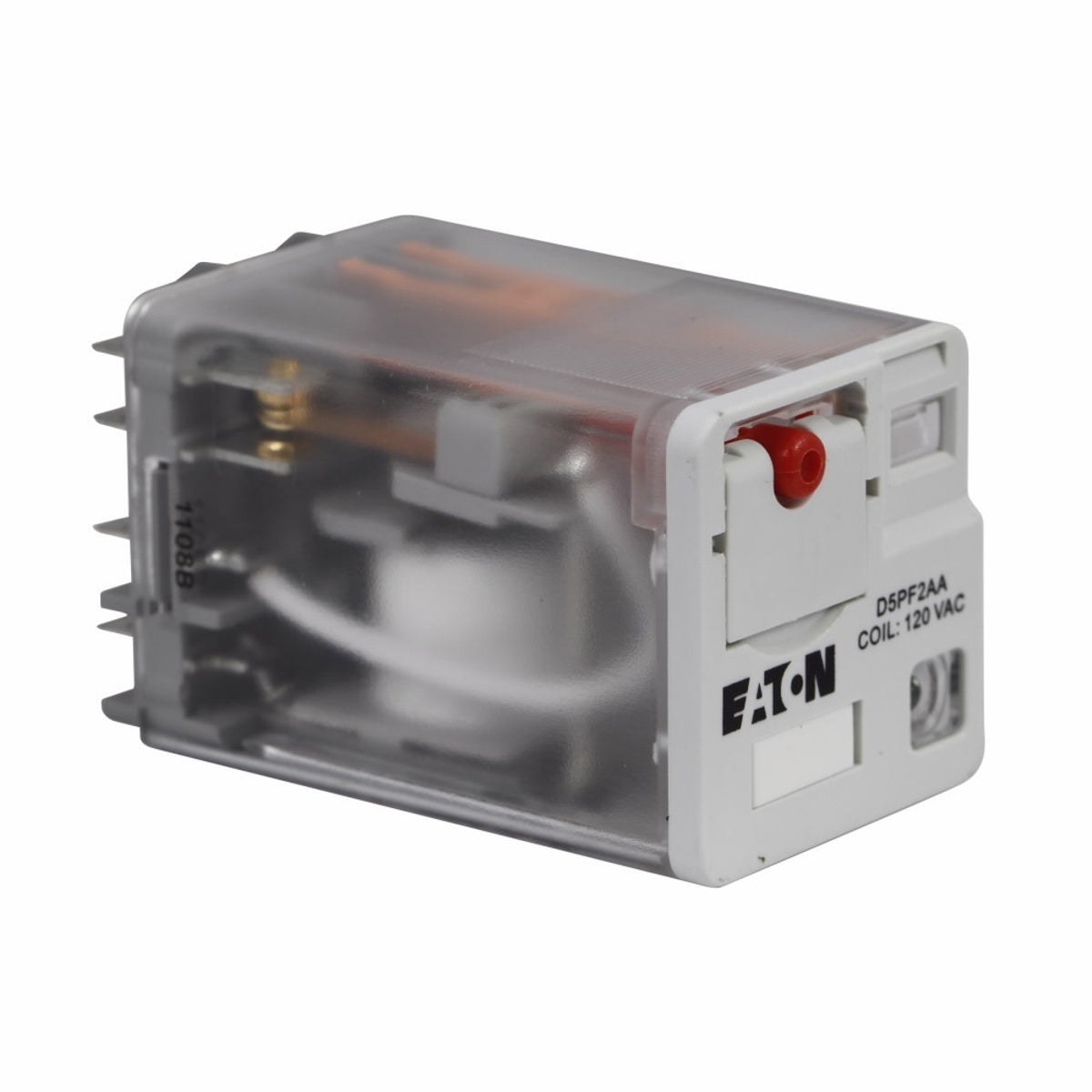

Eaton D5RF2A Relay PRP Genl 16A 11 DPDT 120VAC

Product Description

The Eaton D5RF2A is a general-purpose relay with a rated capacity of sixteen amps at one hundred twenty volts alternating current. This relay features an eleven-pin double pole double throw (DPDT) contact configuration, suitable for various applications.

• Flag indicator shows relay status in manual or powered condition
• LED status lamp indicates coil ON or OFF status
• Push-to-test button allows for manual operation without coil power

Product Highlights

This compact relay is designed for easy installation, making it suitable for controlling small to large electrical loads in commercial and institutional settings. The D5 series provides users with various coil voltages to meet operational requirements.

Product Information

Standard Information

• Manufacturer: Eaton
• Type: Ice Cube Full Featured

Technical Specifications

• Catalog Number: D5RF2A
• Length: 3 inches
• Width: 1.37 inches
• Height: 1.4 inches
• Contact Rating: 16 A
• Coil Voltage: 120 VAC
• Contact Form: DPDT
• Temperature Rating: -40 to 131 degrees F
