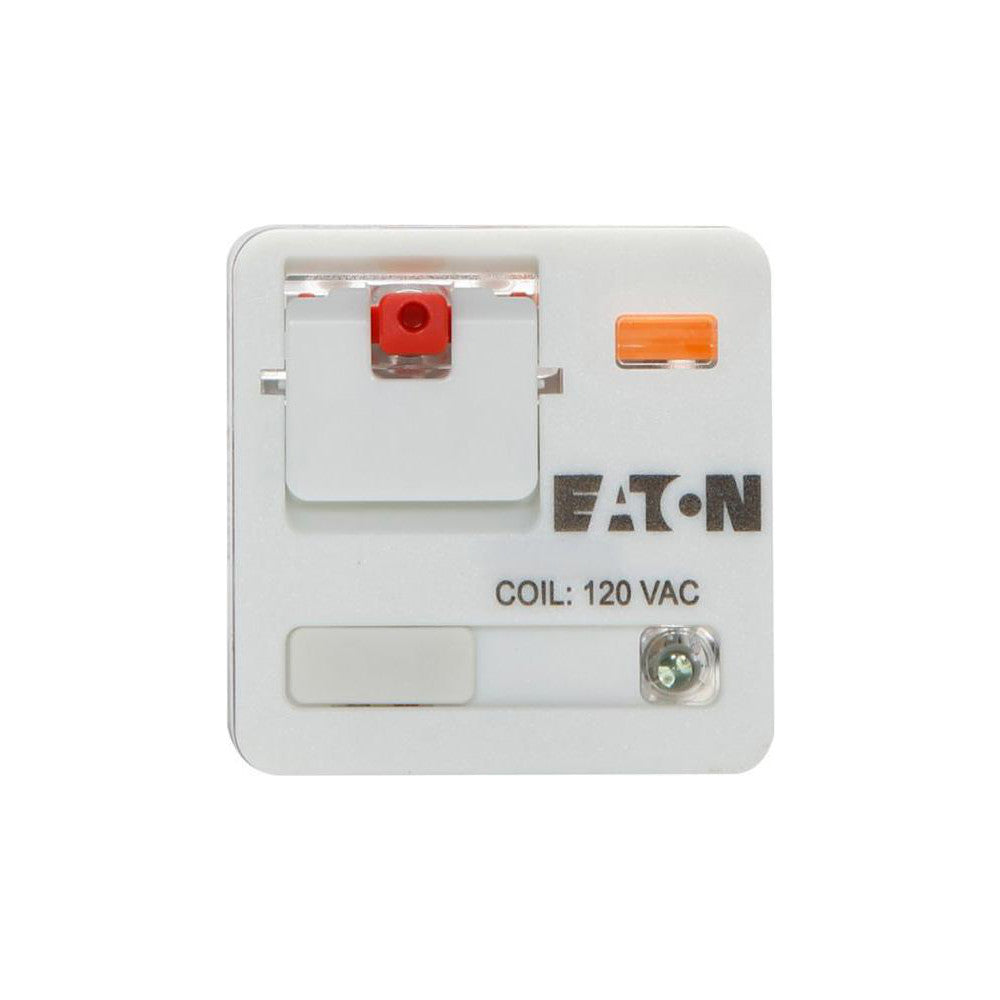

Eaton D3RR3A General-purpose relay 120 Vac

Product Description

The Eaton D3RR3A general-purpose relay is a D3 series ice cube relay with a 3PDT contact configuration, an octal base, and a plain cover style. It is rated for 10A and has a 120 Vac coil with 1700 Ohms resistance. This relay is suitable for various general-purpose switching applications.

• OCTAL Base
• Plain cover style
• Compact relay capable of breaking relatively large load currents

Product Highlights

The Eaton D3RR3A relay provides reliable switching in a compact, easy-to-install design.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D3RR3A
• Country of Origin: China

Technical Specifications

• Product Name: Eaton General-purpose relay
• Catalog Number: D3RR3A
• UPC: 786685930213
• Product Length/Depth: 1.75 in
• Product Height: 1.5 in
• Product Width: 1.5 in
• Compliances: CE Marked RoHS Compliant
• Certifications: CSA Certified cURus UL Listed (when used with Eaton socket)
• Product Type: General-purpose relay
• Special features: OCTAL Base; Plain cover style
• Type: Relay
• Amperage Rating: 10A
• Mounting: DIN rail, panel
• Coil: 120 Vac
• Contact configuration: 3PDT
• Resistance: 1700 Ω
• Series: D3
• Mounting Type: DIN Rail
• Base Type: Octal
• Coil Voltage: 120 V
• Contact Form: 3PDT
• Terminal Type: Plug-In
• Standard & Approvals: ARRA Compliant, BAA Compliant, CE Certified, CSA Certified, RoHS Compliant, UL Listed, UL Recognized
• Manufacturer: Eaton
• Product Series: D3
• Family Series: Eaton Relays, D3 Series
• Description: Eaton General-purpose relay, D3 series ice cube relay, 3PDT, OCTAL BASE, 10A, 1700 Ohms, 120 Vac Coil, Plain Cover Style
• Contacts: 3PDT
• Termination: Socket
• Material: Silver Alloy
• Nominal Coil Voltage: 120 VAC
• Current Rating: 10 A
• Approvals: CE, CSA, UL
• Part #: D3RR3A
• Category: Panel Accessories
• Brand: CUTLER & HAMMER
• MPN: D3RR3A
• Country of Origin: China
• UNSPSC Code: 39121500
