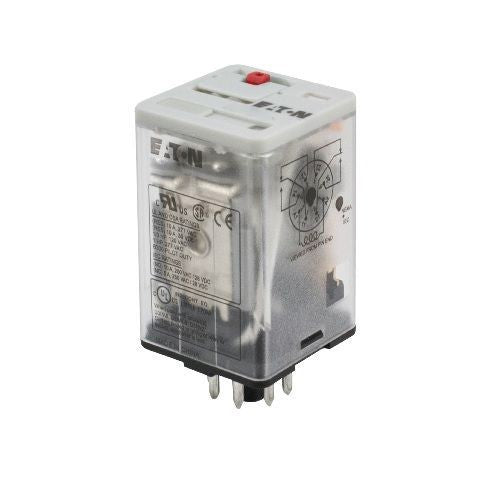

Eaton D3RF3T1 CH Ice Cube Relay, 3PDT, Octal Base, 10A, 24VDC Coil

Product Description

The EATON D3RF3T1 is a general-purpose ice cube relay from the D3 Series, featuring a 3PDT contact form and a 24VDC coil. This relay is designed for commercial and institutional applications. It has an IP40 enclosure and can be mounted on DIN rails or panels. The relay includes a push-to-test button and LED status indicator.

• Contact operation can be easily checked by push to test button
• Flag indicator shows relay status in manual or powered condition
• LED status lamp shows coil on or off status - ideal for use in low light applications

Product Highlights

General purpose relay with 3PDT contact form, octal base, and 24VDC coil, suitable for various applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D3RF3T1
• Country of Origin: China

Technical Specifications

• Amperage Rating: 16 A
• Application: Commercial, Institutional Buildings and Structures Applications
• Coil Voltage: 24 VDC
• Contact Form: 3PDT
• Contact Rating: 10 A
• Enclosure: IP40
• Frequency Rating: 50/60 Hz
• Manufacturer Part Number: D3RF3T1
• Mounting Type: DIN Rail/Panel
• Number of Pins: 11
• Number of Poles: 3
• Power Rating: 1/3 hp, 1/2 hp
• Series: D3 Series
• Standards/Approvals: UL Listed|cULus Recognized|CSA Certified|CE Certified
• Temperature Rating: -40 to 131 deg F
• Terminal Type: Octal Base Plug-In
• Type: Ice Cube Fixed Contact Full Featured
• Certifications: UL Listed
• Product Type: General-purpose relay
• Volts DC Control: 24
• Amps: 10
• Mounting: Socket
• Nominal Coil Voltage: 24 VDC
• Contacts: 3PDT
• Termination: Socket
• Material: Silver Alloy
• Current Rating: 10 A
• Approvals: CE, CSA, UL
