EATON D3RF3T Ice Cube Full Featured General Purpose Relay, 10 A, 11 Pin, 3PDT Contact, 24 VAC V Coil

Product Description

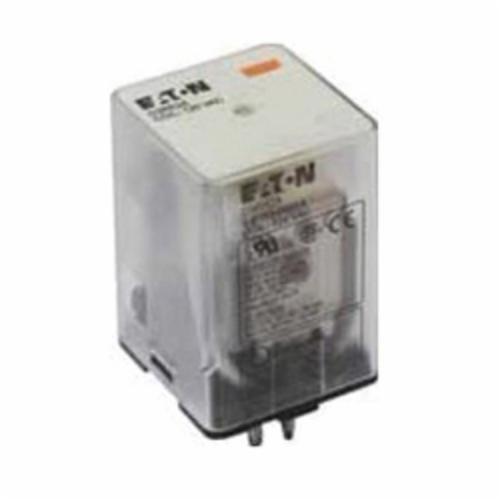

EATON D3RF3T is a general-purpose relay designed for various control applications. It features 10 amps of contact rating with a 24 VAC coil. The relay is structured with 11 pins, adopts a 3PDT contact form, and mounts easily in a socket connection. The D3RF3T relay is ideal for controlling smaller loads and handling high current applications smoothly.

• Easy installation with a popular octal base design
• LED indicator shows the coil ON or OFF status
• Push-to-test button for manual operation without coil power

Product Highlights

The D3 Series is known for its compact design and quick installation capabilities. It includes features like an LED status lamp and a flag indicator that shows the relay status.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D3RF3T

Technical Specifications

• Type: Ice Cube Full Featured
• Base Type: Octal
• Contact Rating: 10 A
• Coil Voltage: 24 VAC
• Contact Form: 3PDT
• Dimensions: 2.2 in L x 1.37 in W x 1.39 in H
• Number of Pins: 11
• Number of Poles: 3
• Temperature Rating: -40 to 131 deg F
• Enclosure Type: IP40
• Mounting Type: Socket
