Eaton D3RF2B Ice Cube Relay 1.4 W (8-Pin) CUTD3RF2B

Product Description

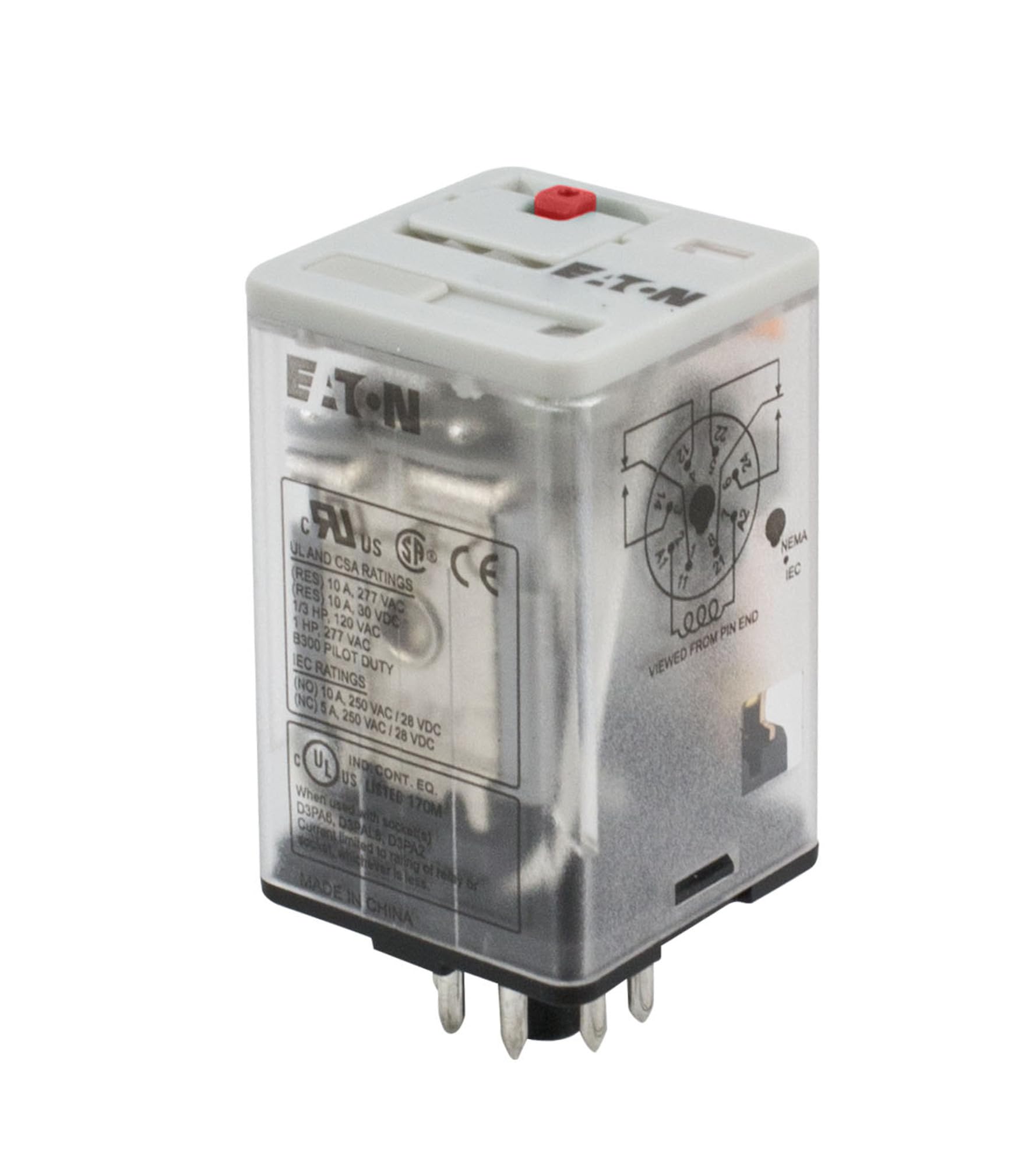

The Eaton D3RF2B is an ice cube style general-purpose relay with DPDT contacts and an octal 8-pin plug-in base. It features a 240 VAC coil, 10 A contact rating, silver alloy contacts, and a 1.4 W power rating. The relay supports DIN rail or panel mounting, provides 1500 VAC dielectric strength between coil and contact and between poles, and is rated for operation from -40 to 131 degrees F with 100,000 cycles.

• DPDT contact configuration with octal 8-pin plug-in terminal; 10 A contact rating and 240 VAC coil
• Silver alloy contacts; dielectric strength 1500 VAC between coil and contact and between poles; 100,000 operating cycles
• Mounting for DIN rail or panel; power consumption 1.4 W; operating temperature -40 to 131 degrees F

Product Highlights

General-purpose DPDT ice cube relay, 8-pin octal base, 240 VAC coil, 10 A contacts, silver alloy, 1500 VAC dielectric strength

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D3RF2B
• Country of Origin: China

Technical Specifications

• Brand: Eaton
• Manufacturer: Eaton / Cutler-Hammer
• MPN: D3RF2B
• Series: D3 Series
• Type: Ice cube general-purpose relay
• Contact Configuration: DPDT (double pole double throw)
• Number of Poles: 2
• Terminal Type: 8-pin octal plug-in
• Coil Voltage: 240 V AC
• Contact Rating: 10 A
• Maximum Switching Voltage: 300 V
• Contact Material: Silver alloy
• Power Consumption: 1.4 W
• Operating Cycles: 100000
• Dielectric Strength: 1500 VAC between coil and contact; 1500 VAC between poles
• Operating Temperature: -40 to 131 degrees F
• Storage Temperature: -40 to 185 degrees F
• Mounting Type: DIN Rail/Panel/socket
• Enclosure Rating: IP40
• Weight: 0.2 lb
• Material: Polycarbonate
• Certifications: CSA
• Country of Origin: China
• GTIN: 00786685930152
• UPC: 786685930152
• Alternate Part Number: CUTD3RF2B
• RoHS Compliant: Yes
