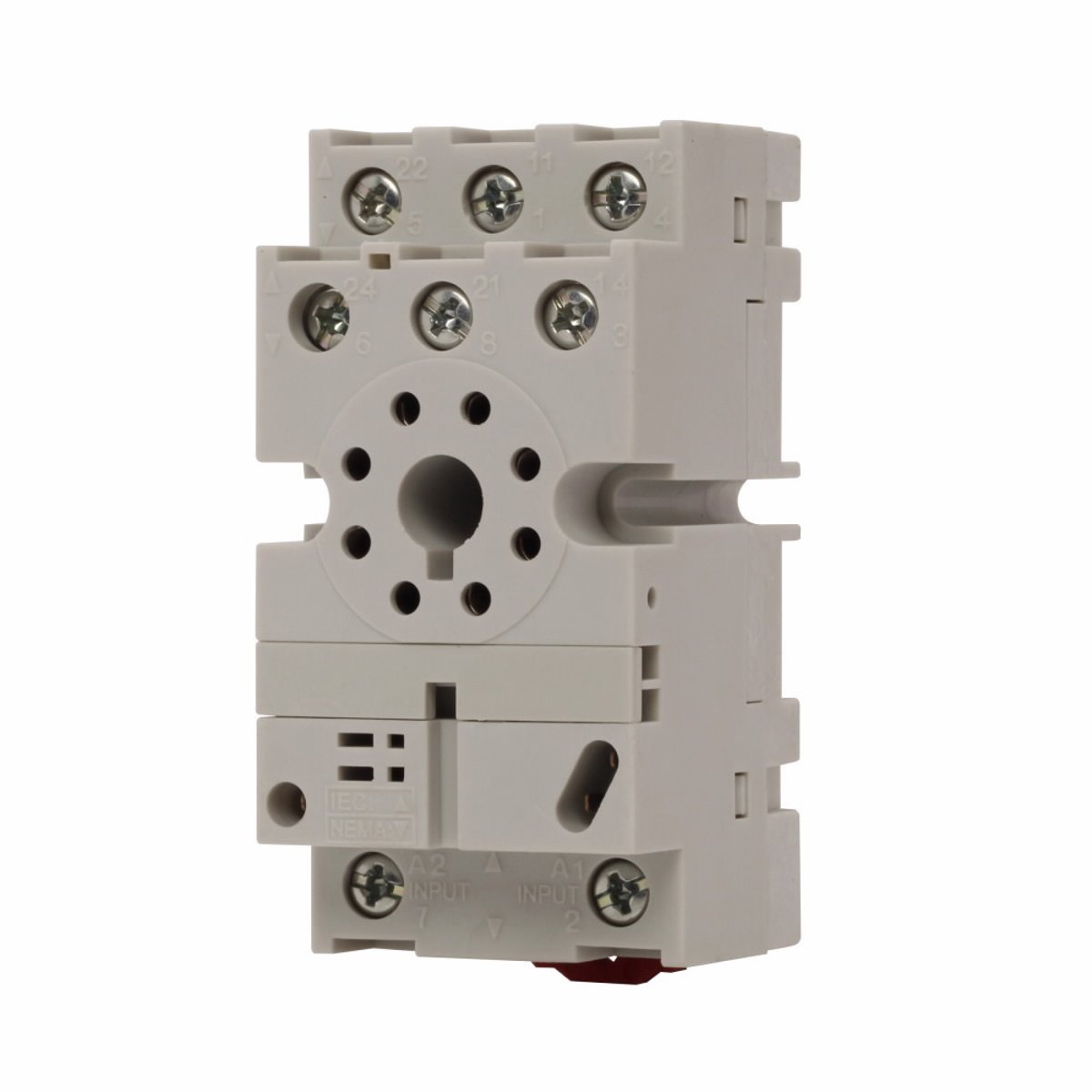

Eaton D3PA6 Eaton Electrical D3PA6 300 Volt 16 Amp Screw Clamp Terminal Relay Socket

Product Description

The Eaton D3PA6 is a relay socket designed for reliable operation with D3 series relays. It supports a nominal voltage of three hundred volts and a current of sixteen amps. This socket can be mounted on a DIN rail or panel and features screw clamping wire connections for secure installation. It is ideal for commercial and institutional buildings.

• Supports D3PR2 and D3PF2 relay models
• Rated for sixteen amps and three hundred volts
• DIN rail/panel mounting with IP20 protection

Product Highlights

This socket is designed for easy installation and provides a secure connection. It is suitable for controlling smaller loads and can handle applications requiring high current.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: D3PA6

Technical Specifications

• Voltage Rating: 300 VAC
• Amperage Rating: 16 A
• Mounting Type: DIN Rail/Panel
• Terminal Type: Screw Clamp
• Number of Pins: 8
• Number of Poles: 2
• IP Rating: IP20
• Dimensions: 3 in L x 1.42 in W x 1.45 in H
