Product Description

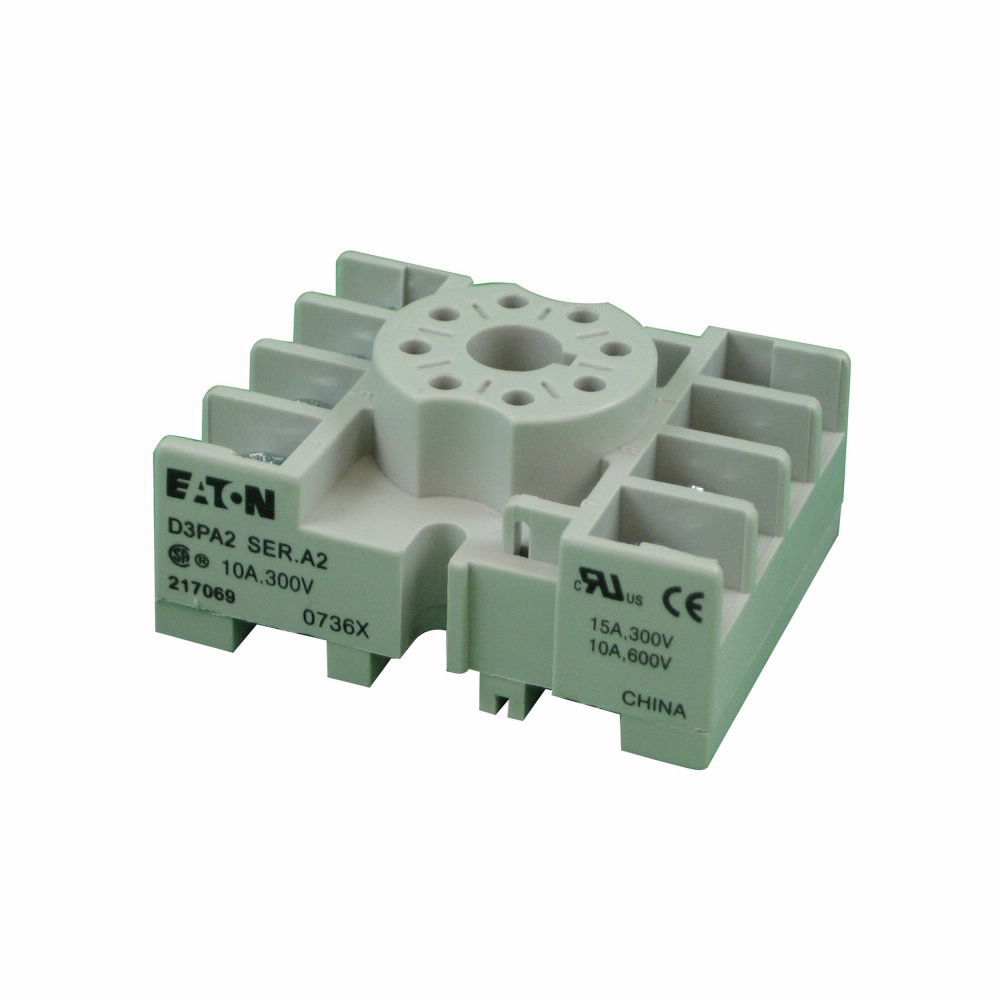

The EATON D3PA2 is a socket designed for use in relay applications. It operates within a voltage range of three hundred to six hundred volts and handles a current of fifteen amps. This octal base socket is compatible with various relay models such as D3PR2 and D3PF2, as well as TMR5 and TRM6 time delay relays. Its compact design allows for easy installation on DIN rails or panels.
- Rated for 300 to 600VAC and 15A
- Compatible with D3PR2, D3PF2, TMR5, and TRM6 relays
- DIN rail or panel mounting with screw clamp terminals
Product Highlights
The D3PA2 facilitates quick and secure installation of general-purpose relays, minimizing the risk of damage. Its slim-form design is suitable for tight spaces, making it ideal for various applications including commercial and institutional buildings.
Product Information
Standard Information
-
Manufacturer: EATON
-
Part Number: D3PA2
Technical Specifications
-
Type: Octal Base
-
Voltage Rating: 300 to 600 VAC
-
Amperage Rating: 15 A
-
Number of Pins: 8
-
Mounting Type: DIN Rail/Panel
-
Terminal Type: Screw Clamp
-
Dimensions: 2.02 in L x 1.6 W x 0.97 in H
-
Standard Approvals: UL Listed, CSA Certified, RoHS Compliant
