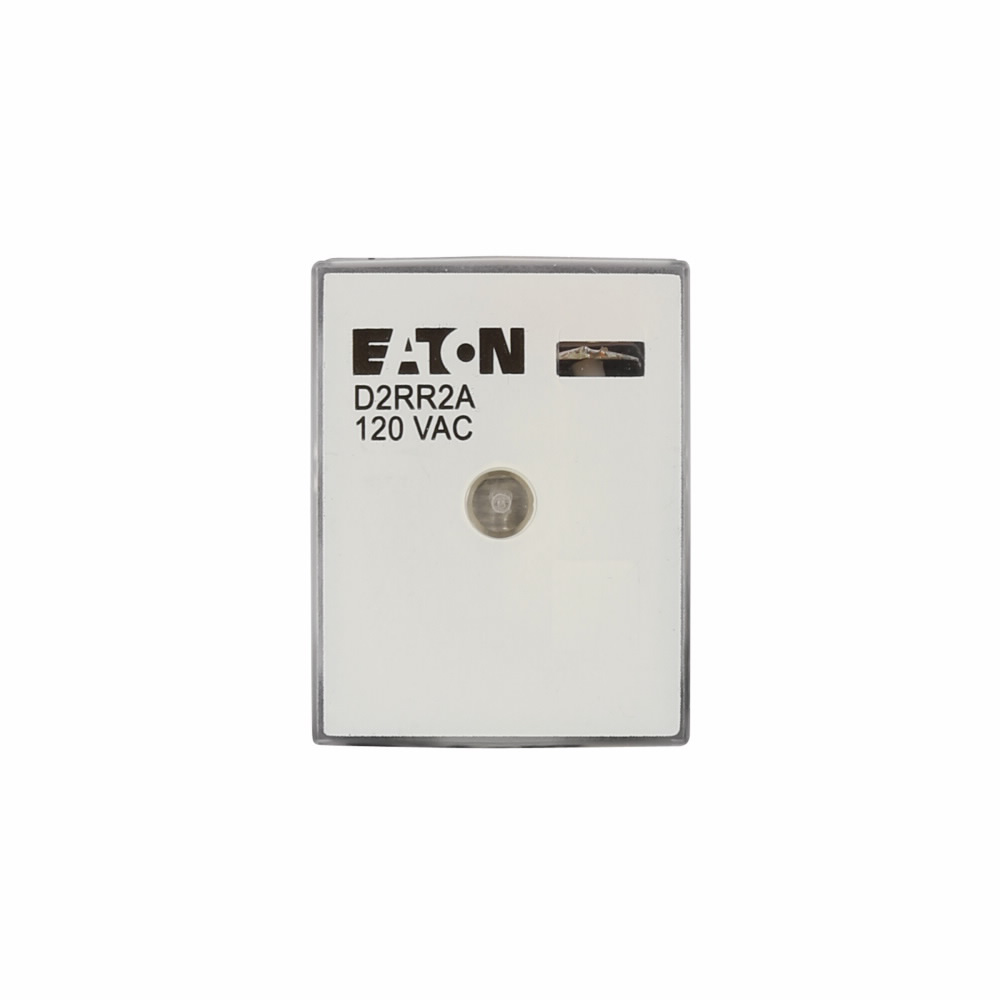

Eaton D2RR2A ICE CUBE RELAY, DPDT, 12A, 120VAC COIL

Product Description

The Eaton D2RR2A is a general-purpose relay designed for versatility in various applications. This relay features a double-pole double-throw (DPDT) configuration, suitable for creating multiple circuit paths. It operates at a voltage of 120VAC with a current rating of 12 amps, making it ideal for both light and heavy-duty tasks.

• DPDT configuration for versatile circuit design
• Compatible with DIN rail or panel mounting
• Rated for 120VAC and 12A maximum current

Product Highlights

This relay is designed for use in commercial and institutional buildings. It is UL listed, RoHS compliant, and features a compact size ideal for tight spaces.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: D2RR2A

Technical Specifications

• Coil Voltage: 120 VAC
• Amperage Rating: 12 A
• Power Rating: 1/3 hp, 1 hp
• Operating Temperature Range: -40 to 131 degrees F
• Dimensions: 1.4 in L x 0.83 in W x 1.1 in H
• Contact Configuration: DPDT
• Mounting Type: DIN Rail/Panel
• Environmental Standards: UL Listed, RoHS Compliant
