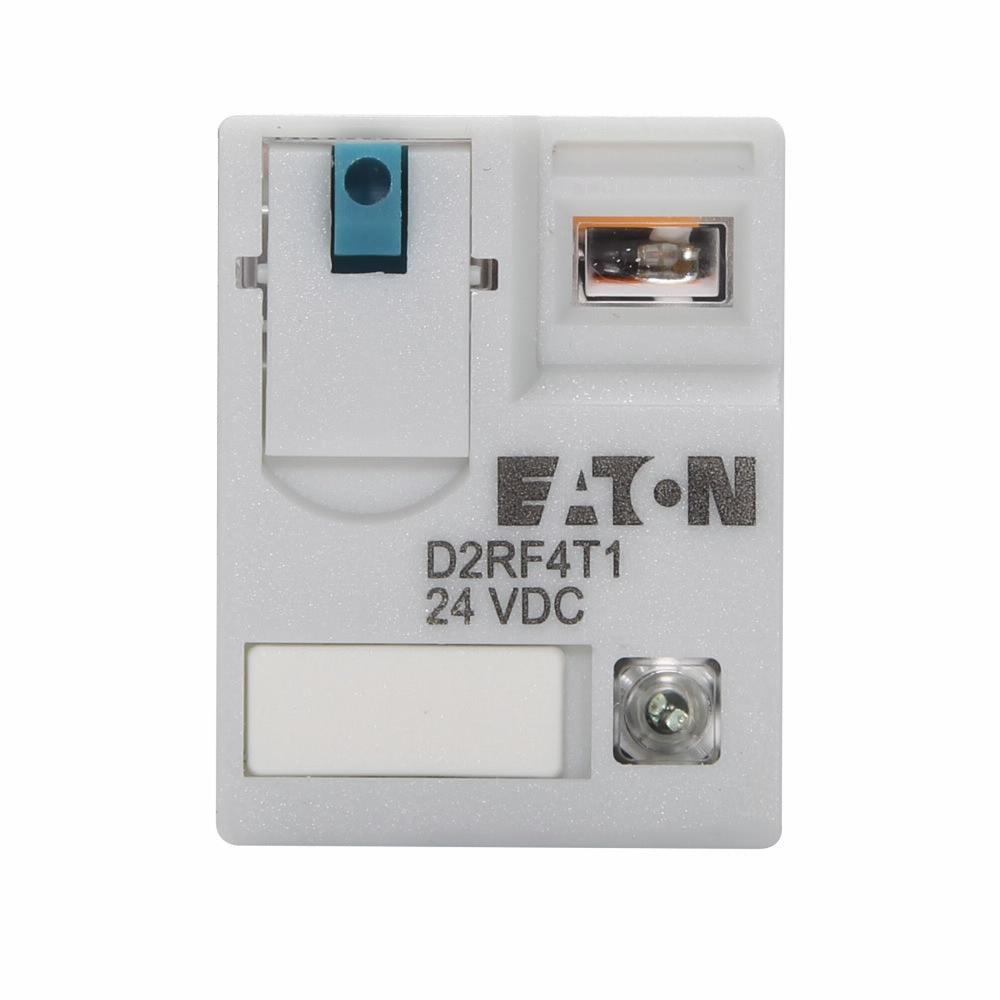

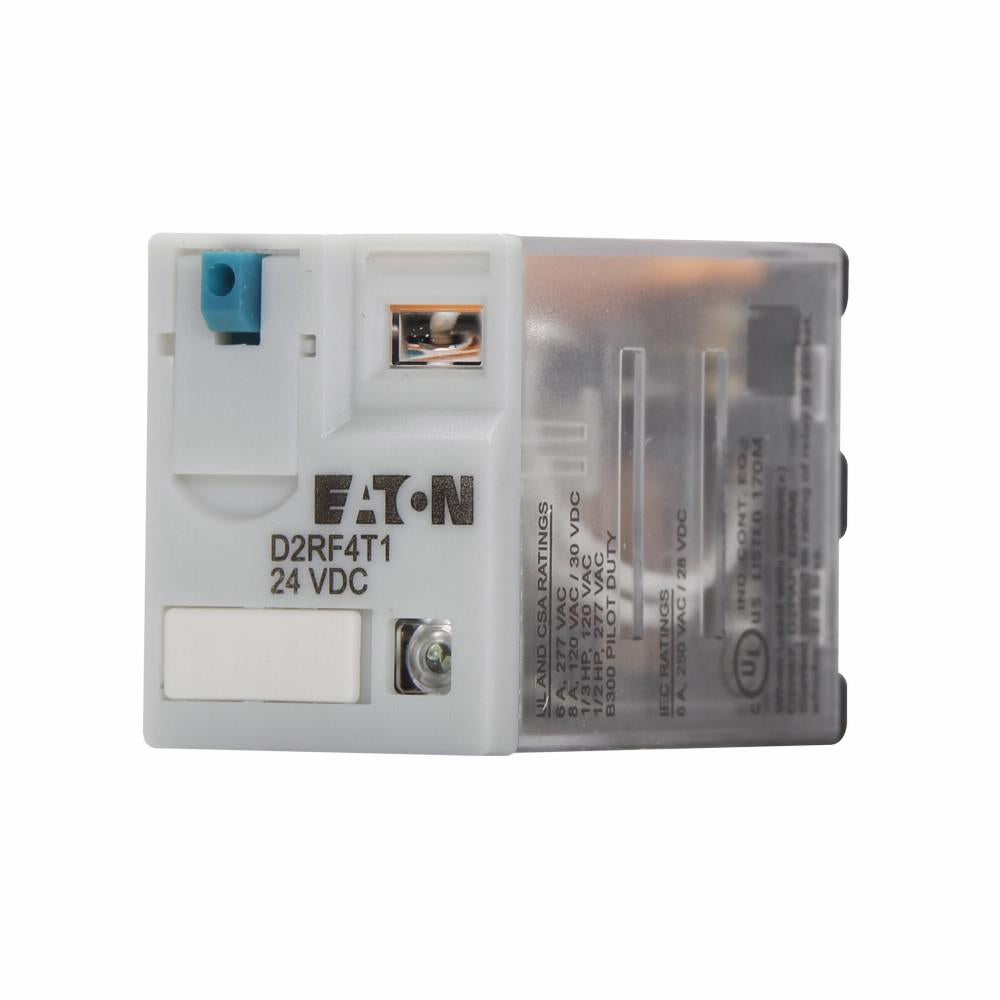

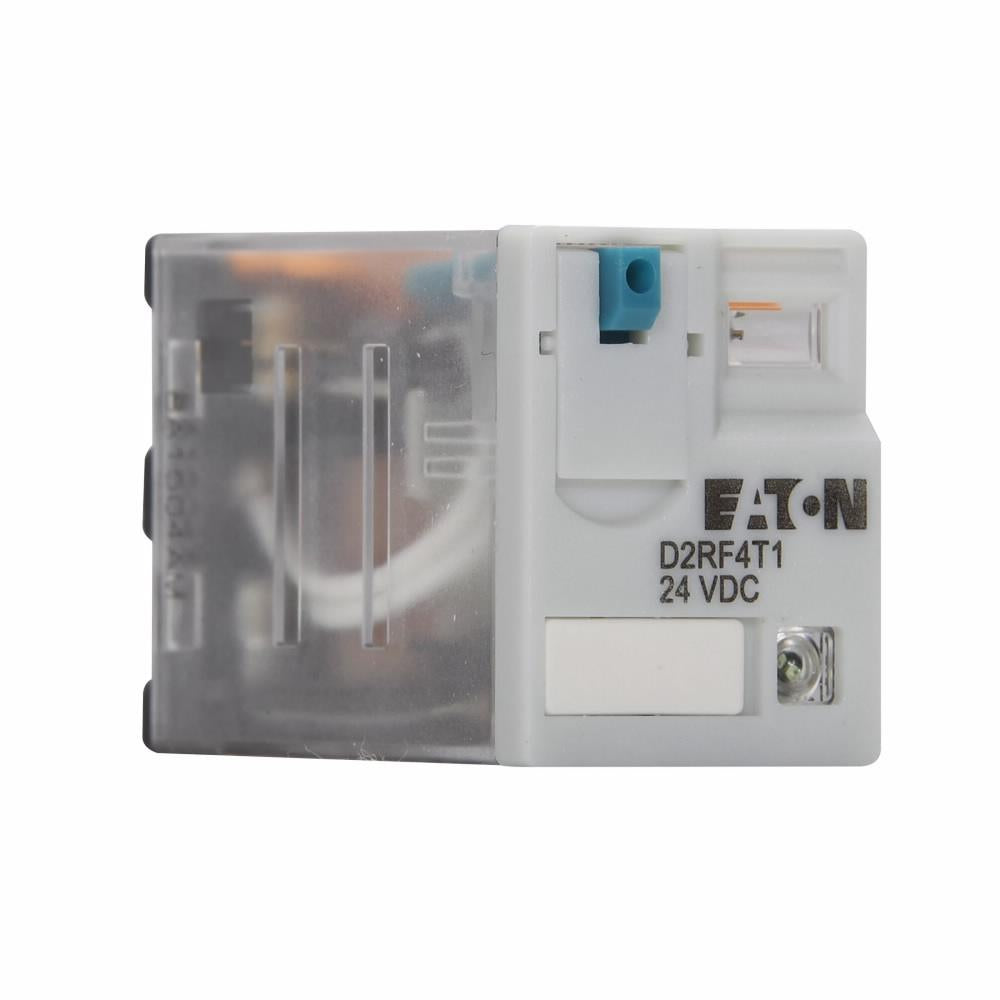

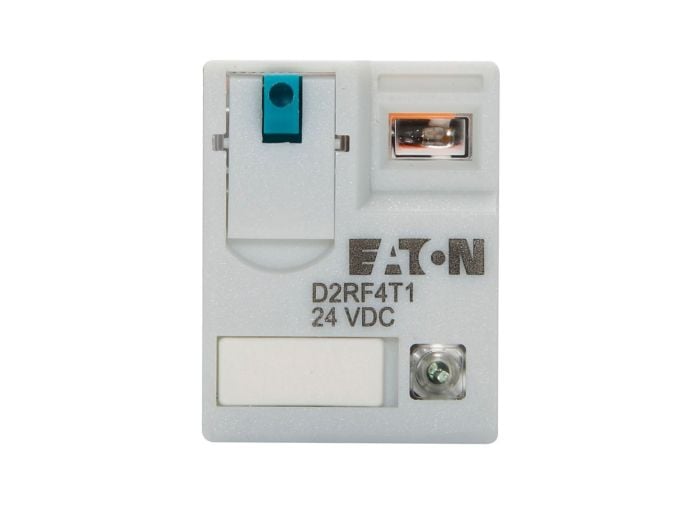

Eaton D2RF4T1 General Purpose Relay 24VDC

Product Description

The Eaton D2RF4T1 is a general purpose relay with quick response time and long life. This ice cube fixed contact relay from the D2 Series has a 24 VDC coil, 4PDT contact form, and a 6 A contact rating. It is suitable for DIN Rail, flange, or panel mounting.

• Flag indicator shows relay status in manual or powered condition
• Bi-polar LED status lamp allows for reverse polarity applications
• Finger grip cover allows operator to remove relays from sockets more easily

Product Highlights

The D2 series relay is ideal for commercial and institutional building applications. It features a color coded pushbutton and a white plastic ID tag for easy identification.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D2RF4T1
• Country of Origin: China

Technical Specifications

• Contact Rating: 6 A
• Enclosure Type: IP40
• Frequency Rating: 50/60 Hz
• Mounting Type: DIN Rail/Flange/Panel
• Number of Poles: 4
• Power Rating: 1/3 hp, 1 hp
• Series: D2 Series
• Temperature Rating: -40 to 131 deg F
• Terminal Type: Plug-In
• Type: Ice Cube Fixed Contact Full Featured
• Contact Form: 4PDT
• Coil Voltage: 24 VDC
• Application: Commercial, Institutional Buildings and Structures Applications
• Standards/Approvals: CE Certified|CSA Certified|cULus Recognized|RoHS Compliant|UL Listed
• Product Length/Depth: 2 in
• Product Height: 1 in
• Product Width: 2 in
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed
• Product Type: General-purpose relay
• Catalog Number: D2RF4T1
• UPC: 786685930015
• Mounting: Plug In
• Termination: Socket
• Material: Silver Alloy
• Nominal Coil Voltage: 24 VDC
• Current Rating: 6 A
• Approvals: CE, CSA, UL
