Product Description

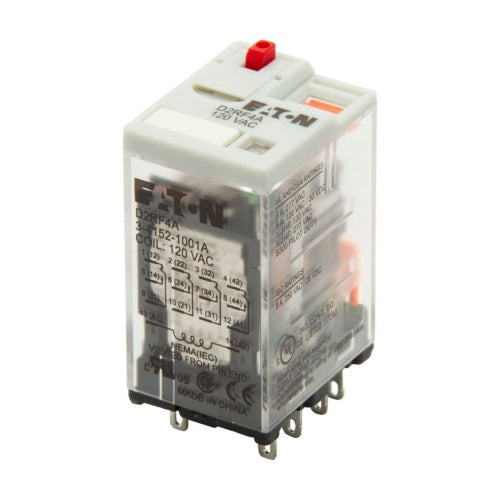

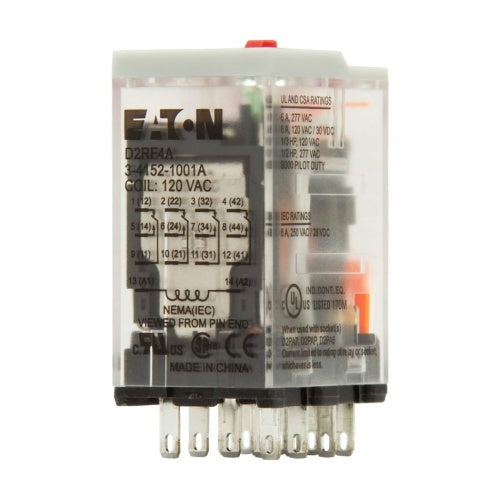

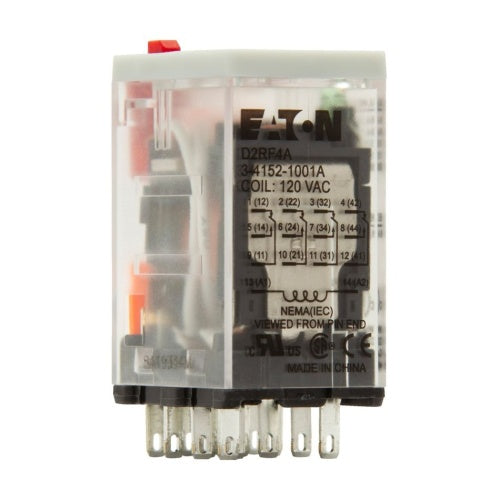

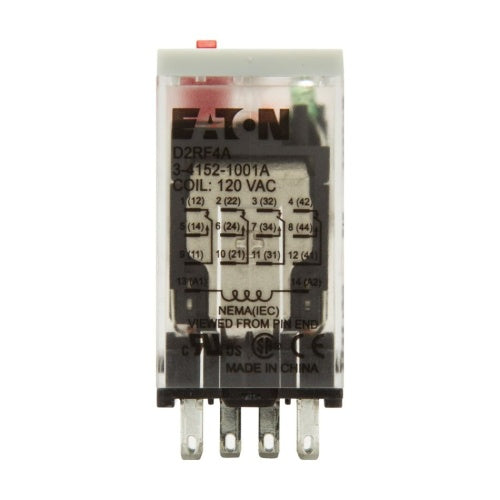

The Eaton D2RF4A is an ICE Cube relay with a 4PDT configuration and a 120VAC coil. This general-purpose relay is designed for quick response time and long life. It features a flag indicator to show relay status and a finger grip cover for easy removal from sockets. Ideal for various control circuit applications.
- Flag indicator shows relay status in manual or powered condition
- Color coded pushbutton identifies AC coils with red or DC coils with blue pushbuttons
- Finger grip cover allows operator to remove relays from sockets more easily
Product Highlights
Eaton's D2RF4A ICE Cube relay offers reliable performance and easy operation for a range of general-purpose applications.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: D2RF4A
-
Country of Origin: United States
Technical Specifications
-
Product Name: Eaton General-purpose relay
-
Catalog Number: D2RF4A
-
UPC: 786685930053
-
Product Length/Depth: 1.4 in
-
Product Height: 1.54 in
-
Product Width: 1.1 in
-
Compliances: RoHS Compliant CE Marked
-
Certifications: UL Listed
-
Product Type: General-purpose relay
-
Type: Ice Cube Fixed Contact Full Featured
-
Series: D2RF
-
Amperage Rating: 10 A
-
Power Rating: 1/3 hp, 1 hp
-
Frequency Rating: 50/60 Hz
-
Coil Voltage: 120 VAC
-
Contact Form: 4PDT
-
Contact Rating: 6 A
-
Number of Poles: 4
-
Mounting Type: DIN Rail/Flange/Panel
-
Terminal Type: Plug-In
-
Enclosure Type: IP40
-
Temperature Rating: -40 to 131 deg F
-
Dimensions: 1.4 in L x 1.1 in W x 1.54 in H
-
Must Operate Voltage: 102 VAC
-
Must Release Voltage: 18 VAC
-
Operate Time: 20 ms
-
Operating Temperature: -40 C ~ 55 C
-
Contact Material: Silver Alloy
-
Contact Rating (Current): 7 A
-
Approval Agency: CE, UL
-
Switching Voltage: 300VAC - Max
-
Relay Type: General Purpose
-
Load - Max Switching: 2100VA
-
Coil Resistance: 4.4 kOhms
-
Coil Current: 27.3 mA
-
Relay Throws: Double Throw
-
Relay Poles: Four Pole
-
Component: Plug In Unit-Ice Cube Relay
-
Relay Load Amperage: 6 Amp
-
Coil Voltage Rating: 120 Volt
