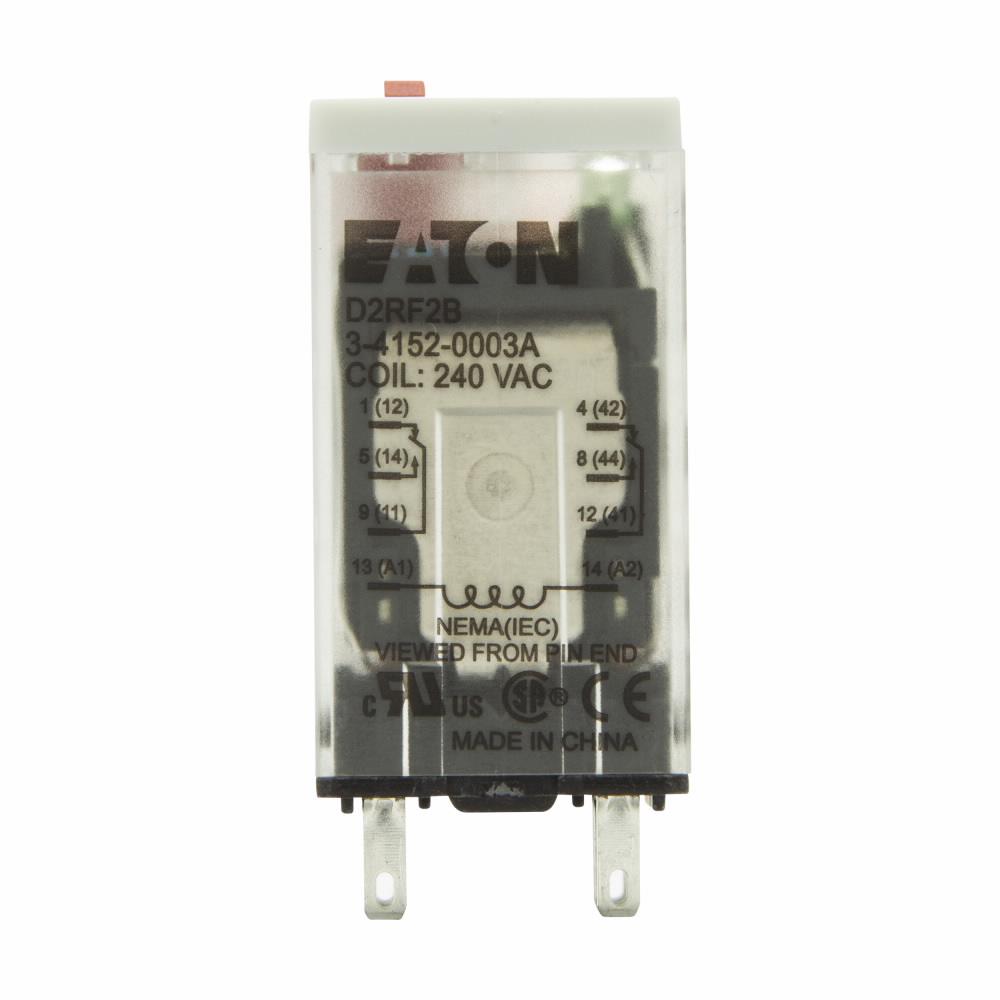

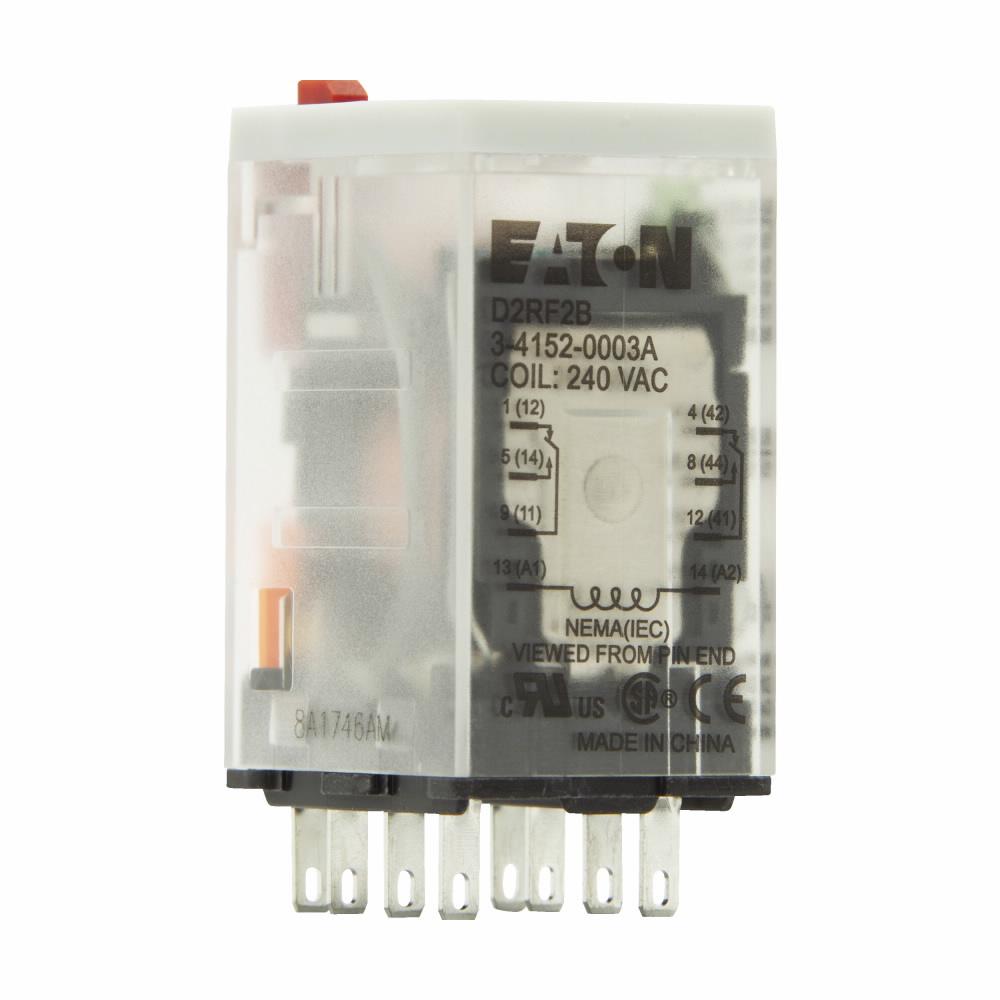

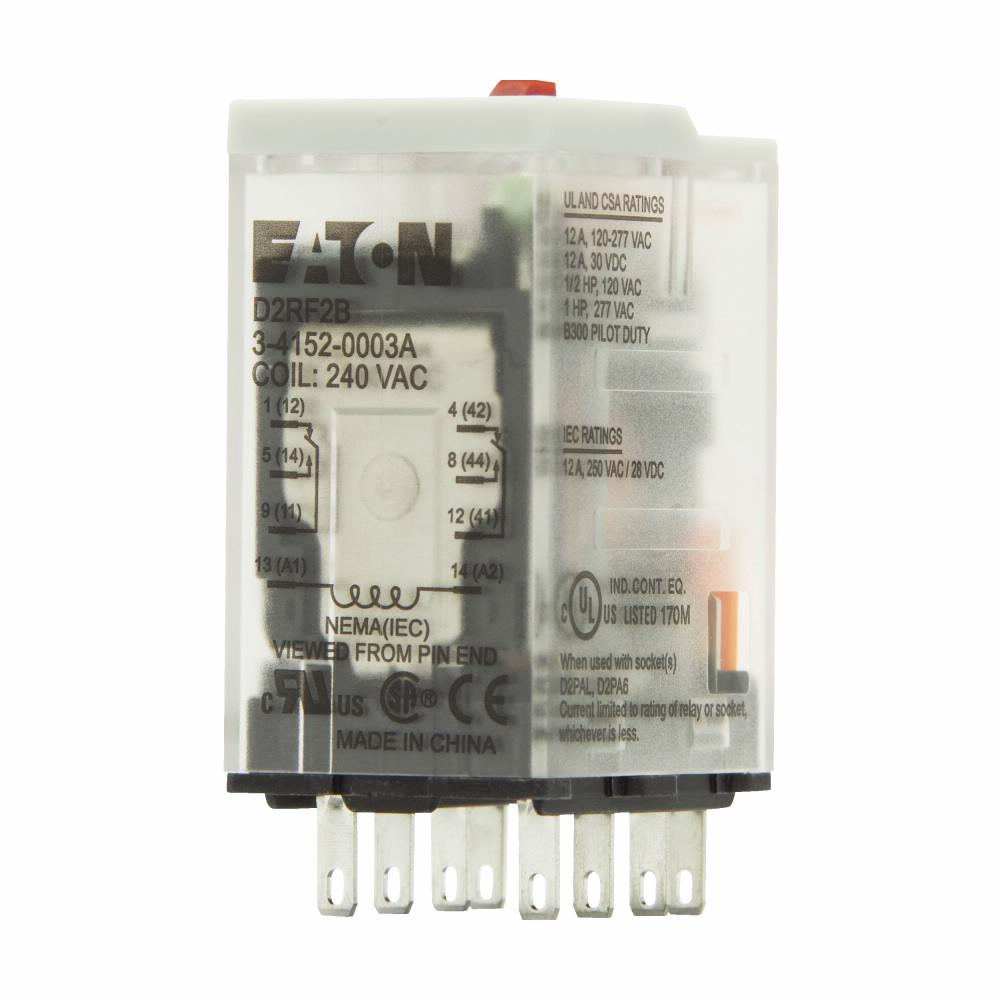

Eaton D2RF2B D Series Ice Cube General Purpose Relay 220/240 VAC Coil (2 in x 1-1/4 in x 1 in)

Product Description

Eaton D2RF2B is a D series ice cube general-purpose relay with a 220/240 VAC coil and DPDT contact configuration. It provides a 12 A contact rating in a compact plug-in octal package for socket mounting, and includes a bipolar LED status indicator and flag indicator alongside manual pushbutton operation. Typical uses include control equipment panels, conveyance lines, and general control circuits requiring a compact, socket-mounted relay.

• DPDT contact configuration with 12 A contact rating
• 220/240 VAC coil with bipolar LED and flag status indicator; manual pushbutton operation
• Plug-in octal/socket mounting; dimensions 2 in x 1.25 in x 1 in

Product Highlights

Ice cube DPDT relay, 12 A contact rating, 220/240 VAC coil, plug-in octal package with LED status and manual operation

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D2RF2B
• Country of Origin: Dominican Republic

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: D2RF2B
• Series: D2RF
• Type: General-purpose relay (ice cube)
• Contact Configuration: DPDT (double pole double throw)
• Contact Rating: 12 A
• Coil Voltage: 220/240 VAC
• Terminal Type: Plug-in (octal/socket mount)
• Display Type: Bipolar LED; flag indicator
• Manual Operation: Pushbutton manual operation (with lock-down door noted)
• Dimensions: 2.00 in x 1.25 in x 1.00 in
• Weight: 0.09 lb
• Certifications: UL Listed
• Compliances: RoHS Compliant; CE Marked
• UPC: 786685929903
• Country of Origin: Dominican Republic
• Application: Control equipment panels, conveyance lines, general control circuits
