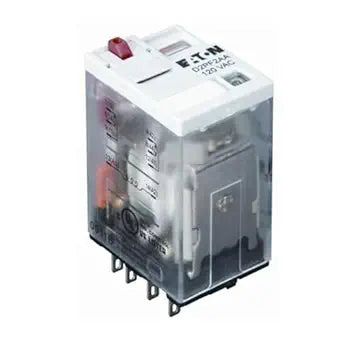

Eaton D2RF2A General Purpose Relay 120VAC

Product Description

The EATON D2RF2A is a compact line of relays with quick response time and long life. It features a flag indicator that shows relay status and a bi-polar LED status lamp. It is ideal for field service personnel to test control circuits.

• Flag indicator shows relay status in manual or powered condition
• Bi-polar LED status lamp allows for reverse polarity applications shows coil On/Off status
• Color coded pushbutton identifies AC coils with red or DC coils with blue pushbuttons

Product Highlights

This general purpose relay has a compact design, quick response time, and long life.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D2RF2A
• Country of Origin: United States

Technical Specifications

• Contact Rating: 12 A
• Enclosure Type: IP40
• Frequency Rating: 50/60 Hz
• Mounting Type: DIN Rail/Flange/Panel
• Number of Poles: 2
• Power Rating: 1/3 hp, 1 hp
• Series: D2RF
• Temperature Rating: -40 to 131 deg F
• Terminal Type: Plug-In
• Type: Ice Cube Fixed Contact Full Featured
• Amperage Rating: 10 A
• Contact Form: DPDT
• Coil Voltage: 120 VAC
• Application: Commercial, Institutional Buildings and Structures Applications
• Standards/Approvals: RoHS Compliant|UL Listed|cULus Recognized|CSA Certified|CE Marked
• Product Length/Depth: 2 in
• Product Height: 1.1 in
• Product Width: 1.3 in
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed
• Poles: 2-Pole DPDT
• Amperage: 10 Amp
• Blade: 8-Blade
• Connector Type: Plug-In
• Contact Type: Dpdt
• Current Rating: 10 Amps
• Mounting Style: Plug In Mount
• Contact Current Rating: 10 Amps
• Maximum Switching Current: 10 Amps
• Number of Pins: 8
• Contact Material: Silver Alloy
• Maximum Amperage: 12 A
