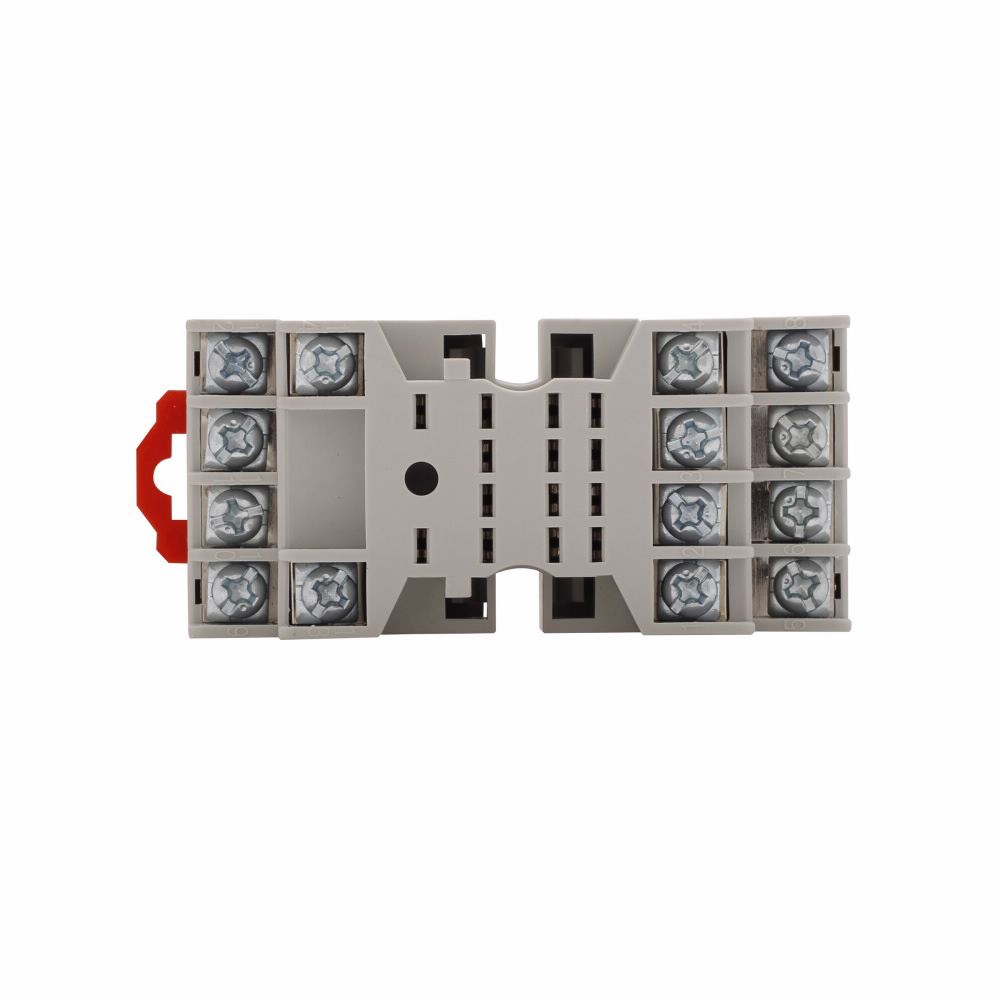

Eaton D2PA6 Relay Socket 300 Volt 10 Amp 4 Pole

Product Description

The Eaton D2PA6 is a relay socket designed for effective use with 2 and 4-pole D2 relays. It operates at a nominal voltage of 300 volts and a nominal current of 10 amps. This socket supports DIN rail or panel mounting and features screw clamping wire connections, providing a secure and reliable connection.

• Compatible with D2PR2, D2PF2, D2PR4, and D2PF4 relays.
• Four-pole configuration suitable for various electrical applications.
• Meets multiple standards including UL Listed and RoHS Compliant.

Product Highlights

This relay socket is ideal for controlling various electrical loads while ensuring safety and reliability.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: D2PA6

Technical Specifications

• Catalog Number: D2PA6
• Voltage Rating: 300 VAC
• Amperage Rating: 10 A
• Number of Poles: 4
• Terminal Type: Screw Clamp
• Mounting Type: DIN Rail/Panel/Threaded
• Weight: 0.1 lb
• Dimensions: 2.75 in Length x 1.2 in Width x 1.5 in Height
