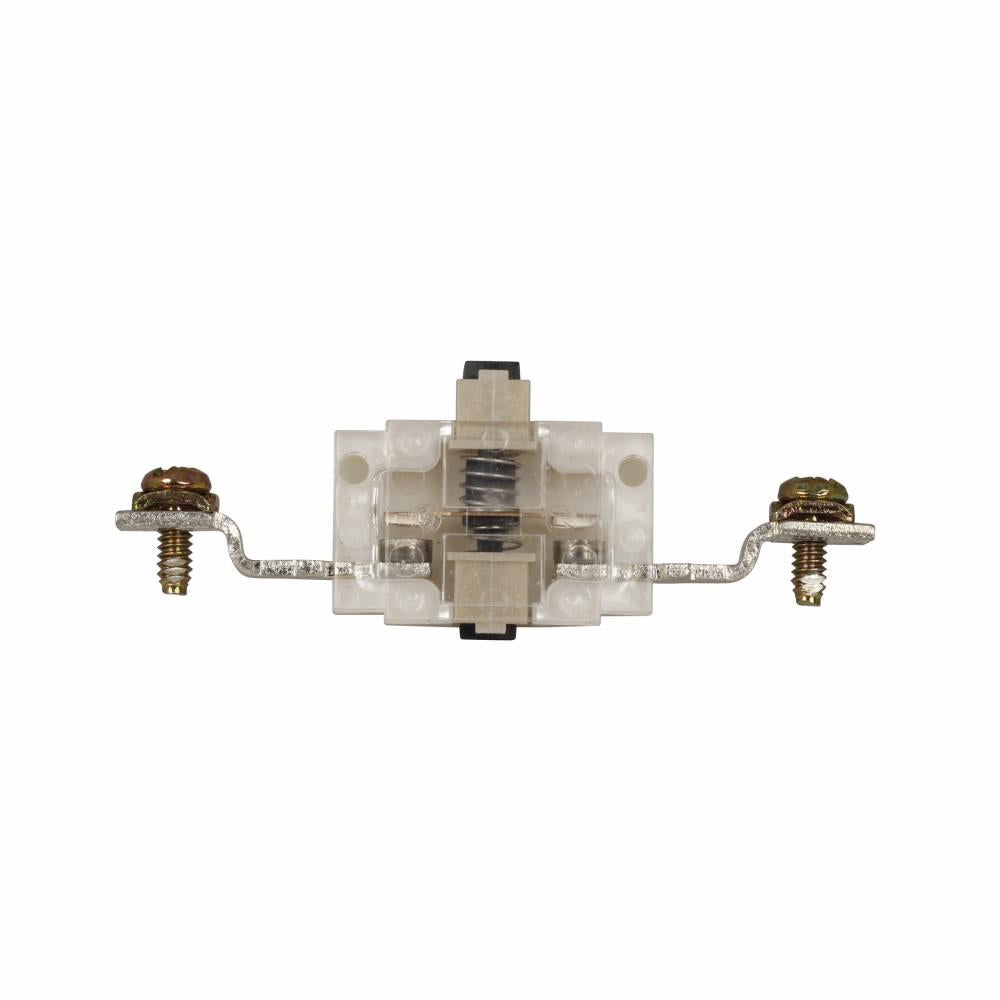

Eaton D26MPS nema machine tool relay 600VAC

Product Description

The Eaton D26MPS NEMA machine tool relay is designed for use with D26 series relays. It features a non-convertible rear pole separate and NO early closing contact configuration. This relay is suitable for various industrial control applications, offering reliable performance and easy integration. It operates at 600 VAC.

• No early closing contact configuration
• To obtain overlapping contacts these two special poles must be used in related circuits
• Suitable for use with D26 Series Relay

Product Highlights

The Eaton D26MPS is a reliable NEMA machine tool relay designed for industrial control applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D26MPS
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton NEMA machine tool relay
• Catalog Number: D26MPS
• UPC: 782113213262
• Product Length/Depth: 3.4 in
• Product Height: 1 in
• Product Width: 1.5 in
• Certifications: UL Listed file E1230 UL Listed Class NKCR2 CSA file No. LR353
• Catalog Notes: Non-convertible contacts. To obtain overlapping contacts, these two special poles must be used in related circuits
• Product Type: Machine tool relay
• Used with: D26 series relays
• Contact configuration: NO Early Closing
• Series: D26
• Type: Relay Rear Pole
• Voltage Rating: 600 VAC
• Suitable For Use With: D26 Series Relay
• Voltage: 600V AC
• Continuous Amps: 10
• Terminals: Screw
• Manufacturer Series: Type M, D26
• Brand: CUTLER HAMMER
