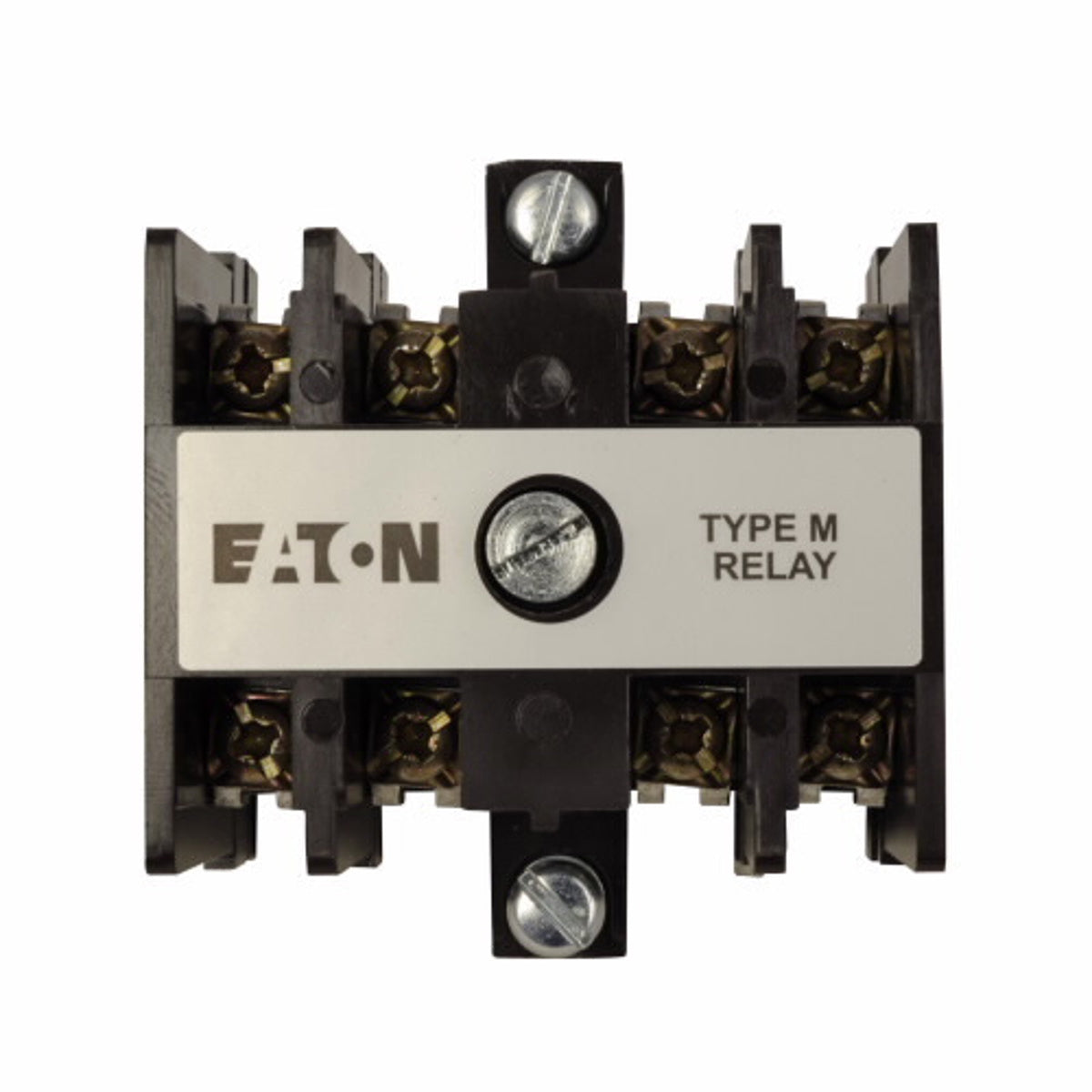

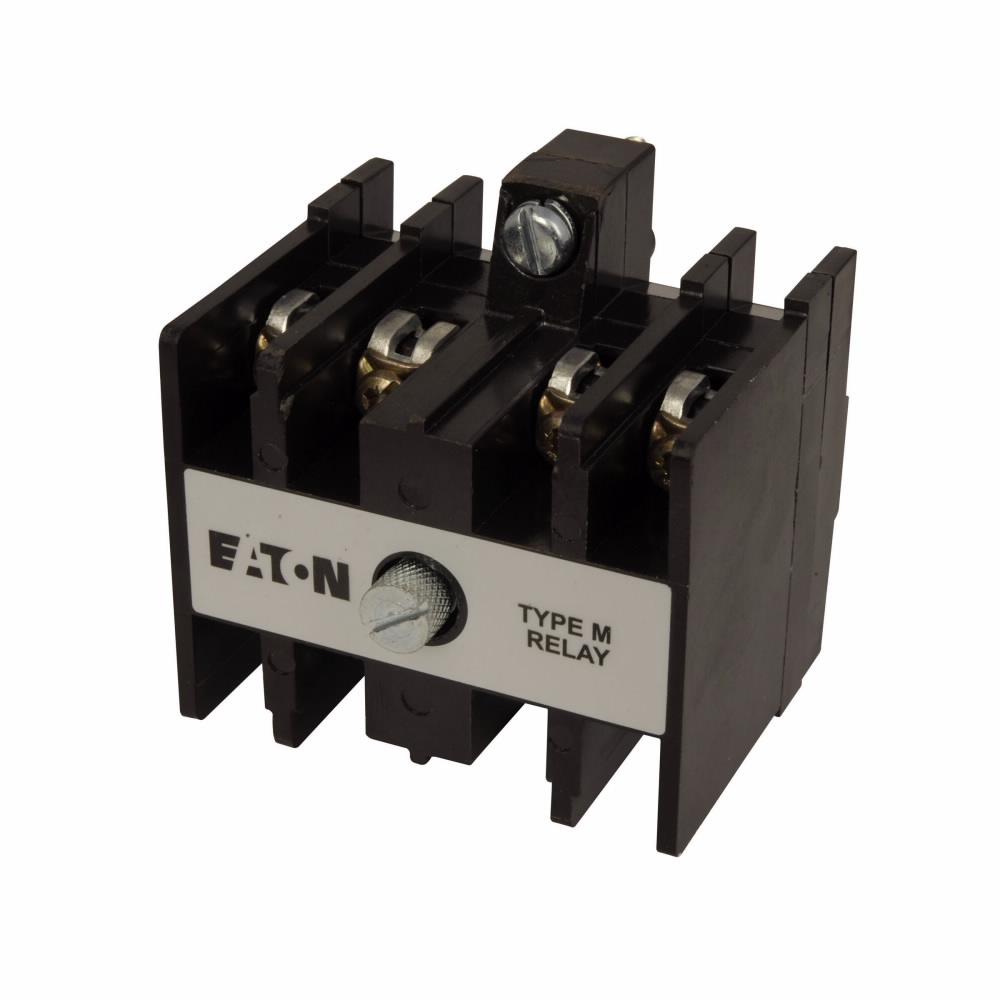

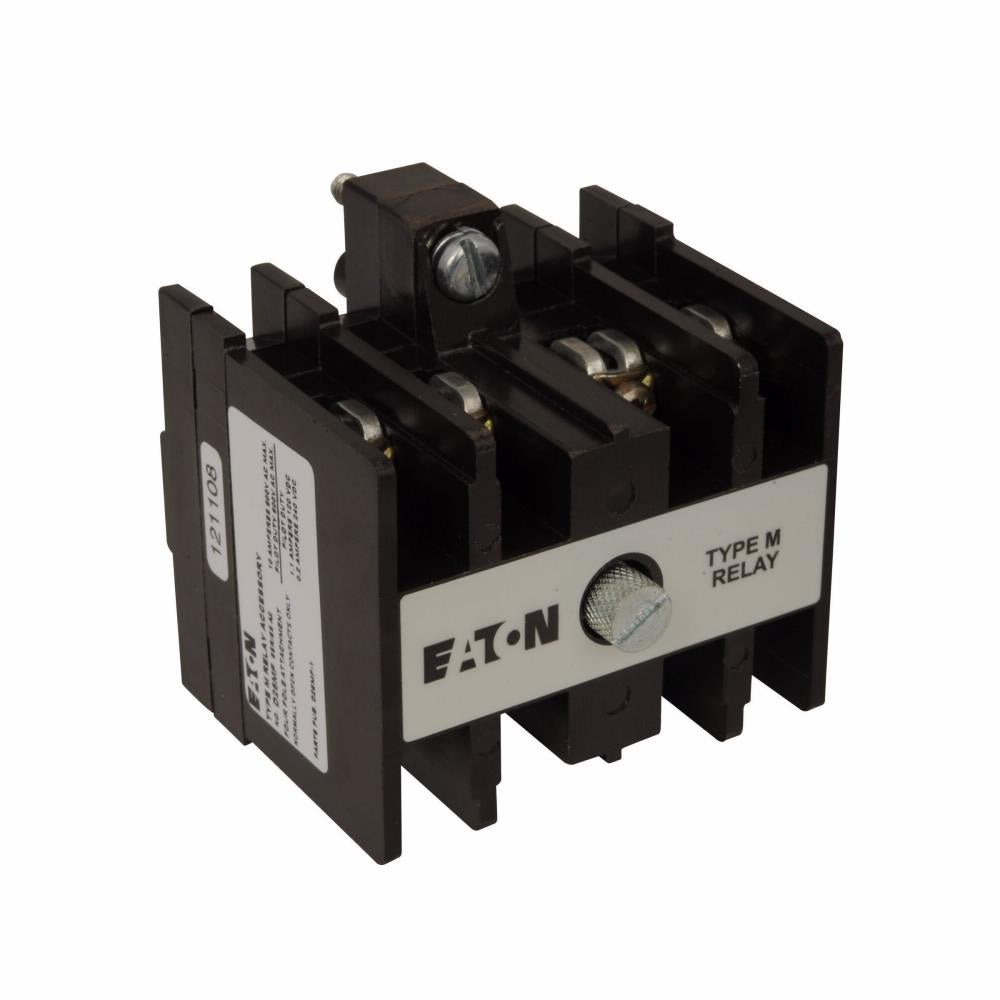

Eaton D26MF NEMA Machine Tool Relay Four-Pole

Product Description

The Eaton D26MF NEMA machine tool relay is a D26 Series Front Attachment used with any two to eight-pole Type M. These relays are designed for use on machines, process lines, conveyors and similar automatic and semiautomatic equipment. It can be added to any two-to eight-pole, type M, D26 relay to provide up to a 12-pole relay.

• Four-pole front attachment
• Contacts are electrically and mechanically isolated for safety
• Terminals are finger-proofed to reduce electrical shock

Product Highlights

The Eaton D26MF NEMA machine tool relay is a D26 Series Front Attachment used with any two to eight-pole Type M.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D26MF
• Country of Origin: United States

Technical Specifications

• Catalog Number: D26MF
• Manufacturer: Eaton
• Brand: Eaton - Cutler Hammer
• Country of Origin: United States
• Made in USA: Yes
• Application: Automation and Logic Control Equipment Applications
• Number of Poles: 4
• Standard: UL Listed Class NKCR2,CSA file No. LR353,UL Listed file E1230
• UPC: 782113179759
• GTIN: 00782113179759
• Item Type: Machine tool relay
• Series: D26
• Suitable For Use With: Any 2 to 8-Pole, Type M, D26 Series Relay
• Product Name: Eaton NEMA machine tool relay
• Product Length/Depth: 3 in
• Product Height: 2.9 in
• Product Width: 4 in
• Certifications: CSA file No. LR353 UL Listed file E1230 UL Listed Class NKCR2
• Catalog Notes: Can be added to any two-to eight-pole, type M, D26 relay to provide up to a 12-pole relay. Four NO, non-convertible contacts are included in this assembly.
• Product Type: Machine tool relay
• Type: D26 Series Front Attachment
• Used with: Any two to eight-pole, type M, D26 series relay
• Poles: 4
• Length: 3 in
• Alternate Mfr Part Number: D26MF
• Manufacturer Part Number: D26MF
• Numeric ID: 3882599
• UNSPSC: 39122331
• Includes: Contact Block Mounting Adapter
