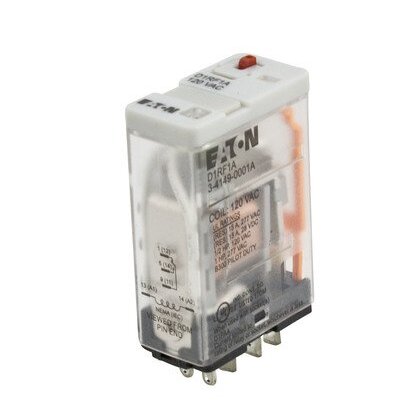

Eaton D1RF1A General Purpose Relay 120VAC

Product Description

The EATON D1RF1A series relay provides a compact single pole relay capable of handling 15 A. It features multiple voltage options, a flag indicator, and an LED status lamp. The relay has a push-to-test button for manual operation and a lock-down door to hold contacts. It is suitable for controlling smaller loads and high current-carrying capacity applications.

• Contact operation can be easily checked by push to test button
• Flag indicator shows relay status in manual or powered condition
• LED status lamp shows coil on or off status - use in low light applications

Product Highlights

The D1RF series ice cube general purpose relays provide excellent functionality and are ideal for any application.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D1RF1A

Technical Specifications

• Contact Rating: 15 A at 300 VAC
• Enclosure Type: IP40
• Frequency Rating: 50/60 Hz
• Mounting Type: DIN Rail/Panel
• Number of Poles: 1
• Power Rating: 1/2 hp, 1 hp
• Series: D1RF
• Temperature Rating: -40 to 185 deg F
• Terminal Type: Plug-In
• Type: Full Featured Ice Cube
• Contact Form: SPDT
• Coil Voltage: 120 VAC
• Application: General Purpose Applications
• Standards/Approvals: CE Certified|CSA Certified|cULus Recognized|RoHS Compliant|UL Listed
• Product Length/Depth: 2 in
• Product Height: 1 in
• Product Width: 1.5 in
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed
• Product Type: General-purpose relay
• Amperage: 15 Amp
• Coil: 120VAC
• Blade: 5-Blade
• Volts AC Control: 120
• Mounting: Socket
• Amps: 15
