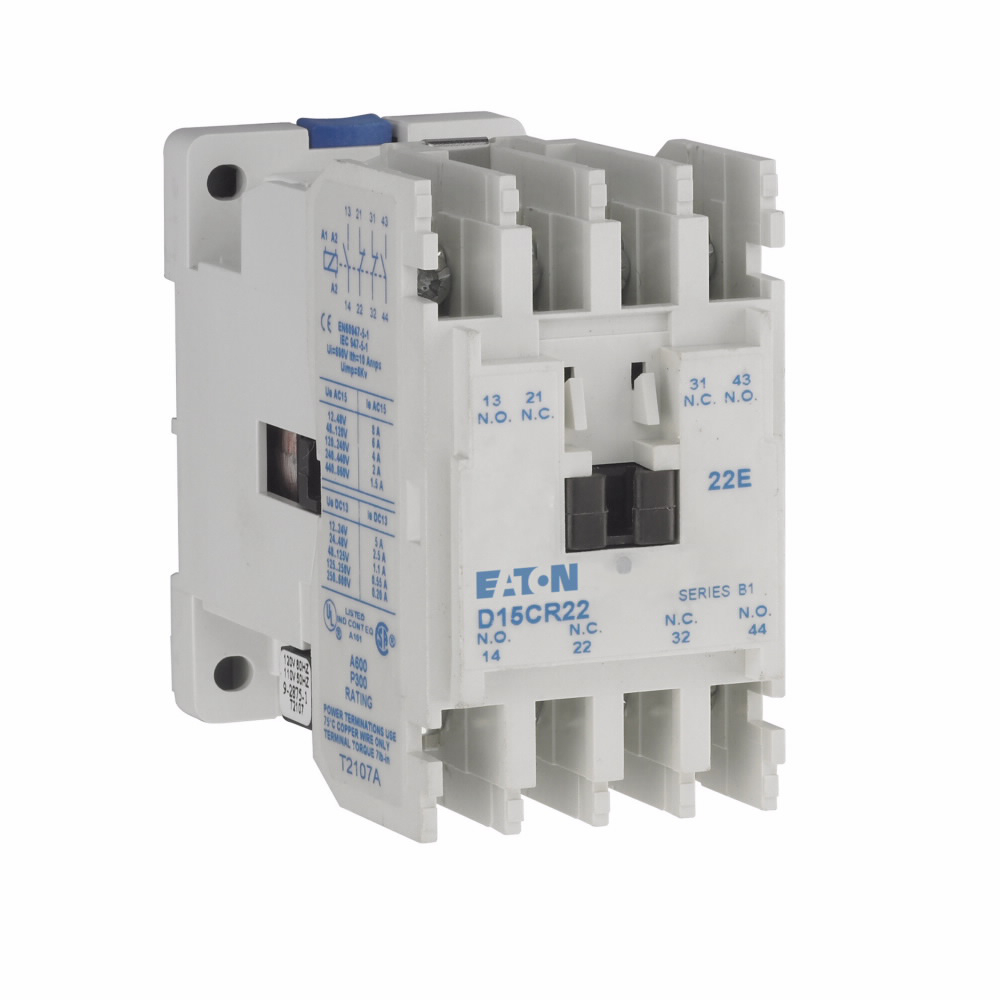

Eaton D15CR22AB Relay Ctrl AC 10A 2NO-2NC 110/120VAC

Product Description

The Eaton D15CR22AB is a fixed contact multi-pole AC control relay rated for operational current up to ten amps. This relay features two normally open and two normally closed contact configurations. It operates at coil voltages of 110 or 120 volts and is designed for applications requiring reliable relay control.

• Rated for 10 Amps of operational current
• Features 2NO-2NC contact configuration
• 110/120 VAC coil operation

Product Highlights

Ideal for use in industrial control systems, the Eaton D15CR22AB relay handles significant electrical loads and ensures safe operation in critical applications.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: D15CR22AB

Technical Specifications

• Type: Fixed Contact Multi-Pole
• Coil Voltage: 110/120 VAC
• Contact Form: 2NO-2NC
• Amperage Rating: 10 A
• Contact Rating: 60 A make/6 A break
• Frequency Rating: 50/60 Hz
• Number of Poles: 4
• Dimensions: 3.3 in L x 1.8 in W x 2.96 in H
• Enclosure Type: Open
• Mounting Type: DIN Rail
• Terminal Type: Finger Safe/Self-Lifting Pressure Plate
• Standards: UL Listed, CSA Certified
• Application: Electrical Assemblies, Panels & EOEM
