Eaton CWL715P Plug 15A 277V 2P3W H/L

Product Description

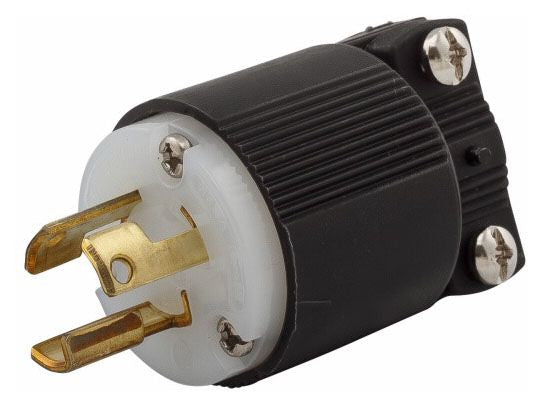

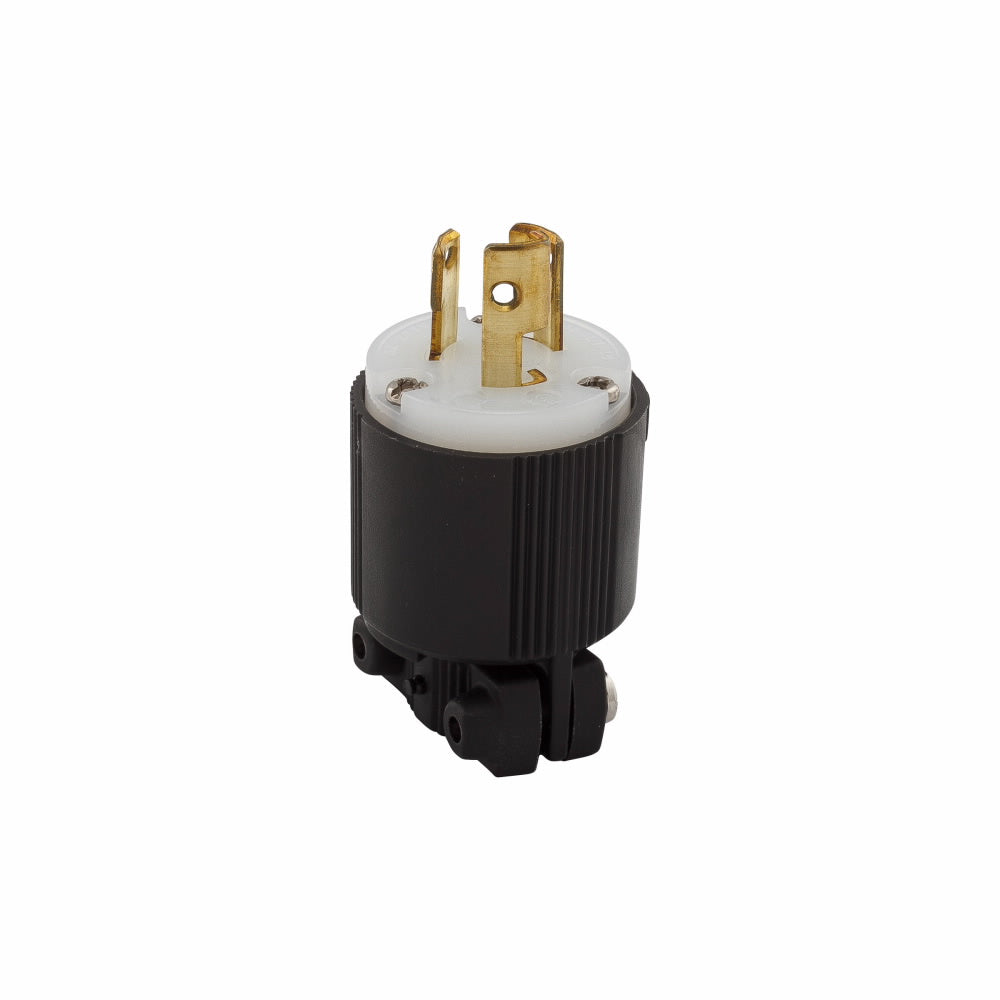

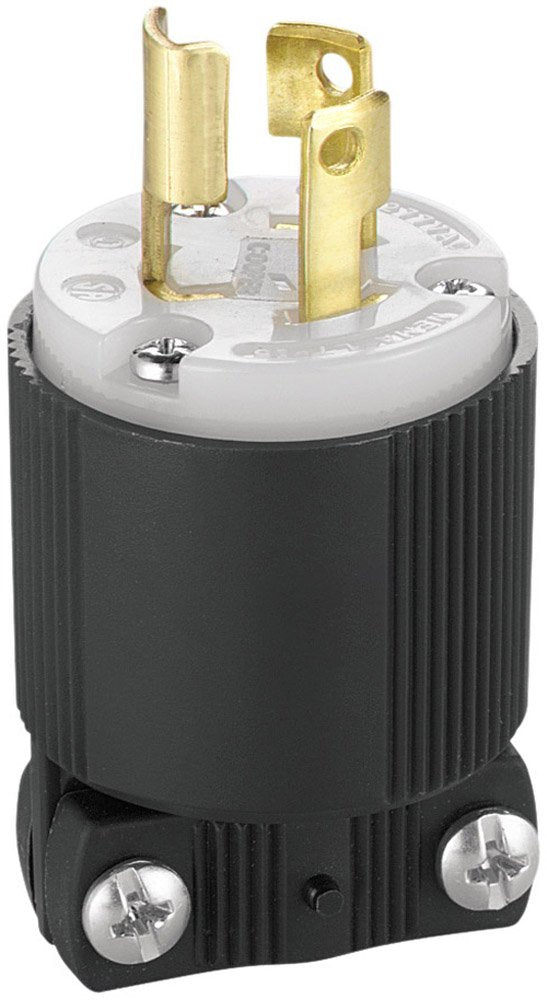

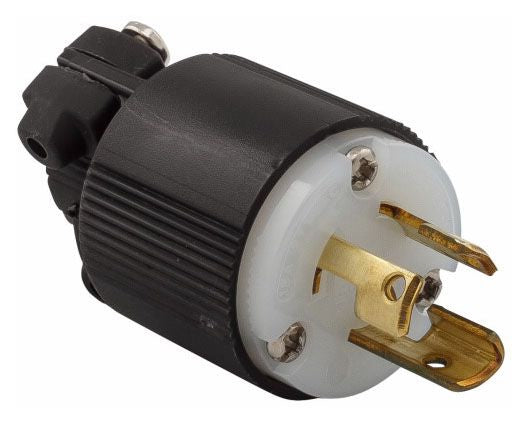

The EATON CWL715P is a safety grip locking plug designed for industrial applications. Rated for 15A and 277V, this two-pole, three-wire plug features back wiring and nylon construction. It accommodates wire sizes #16-12 AWG and operates in temperatures from -40 to 60 degrees Celsius.

• Safety grip locking plug
• Industrial grade
• Back wiring
• Nylon construction

Product Highlights

Ideal for industrial use, the Eaton CWL715P ensures secure and reliable power connections with its robust design and safety features.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CWL715P
• Country of Origin: China

Technical Specifications

• Amperage: 15A
• Voltage: 277V
• Wiring: Back wiring
• Poles: Two-pole
• Wires: Three-wire
• Material: Nylon
• Temperature Range: -40 to 60 deg C
• Wire Size: #16-12 AWG
• Application: Industrial
• Manufacturer: EATON
• Model / MPN: CWL715P
• Amperage Rating: 15 A
• Cord Diameter: 0.33 to 0.66 in
• Grade: Industrial
• NEMA Rating: NEMA L7-15
• Number of Poles: 2
• Number of Wires: 3
• Standards/Approvals: cULus Listed|NAFTA Compliant
• Terminal Type: Back/Side Wire/Screw
• Type: Straight
• Voltage Rating: 277 VAC
• Operating Temperature: -40 to 60 °C (-40 to 140 °F)
• Allowable wire size: #16-12 AWG
• NEMA configuration: L7-15
• Current Rating (Amps): 15A
• Mounting Type: Free Hanging (In-Line)
• Termination: Screw
• Features: Cable Clamp
• Material Flammability Rating: UL94 V-2
• Approval Agency: CSA, cULus
